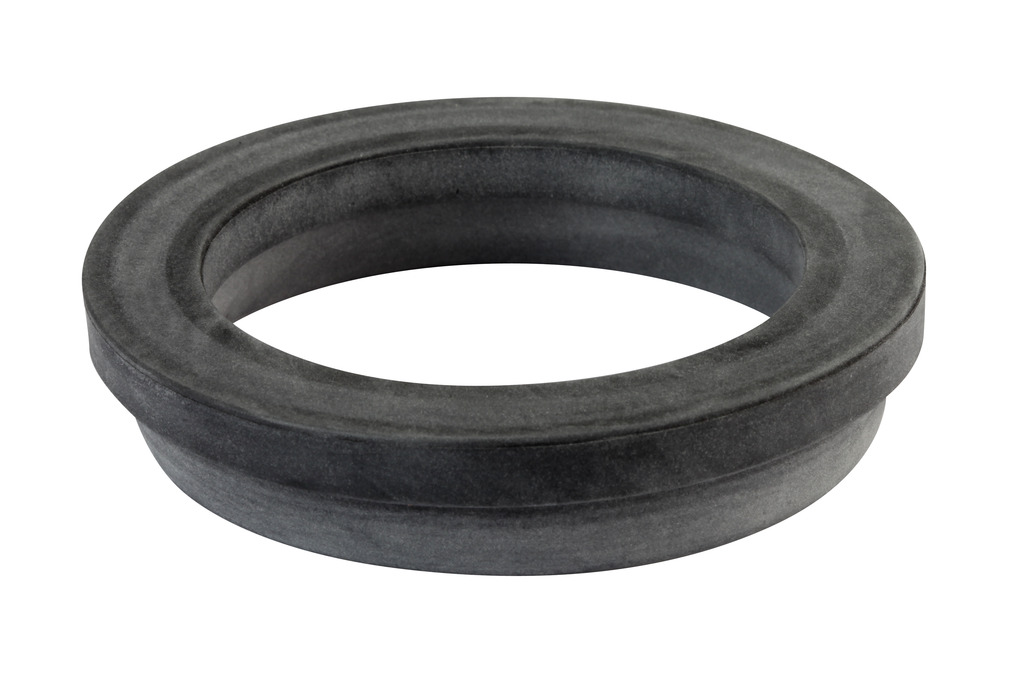

DR-SPK 80 MOS EPDM-1510.01.01.12073Sealing ring for suction plate SPK
| Size | 80 |
| Material hardness [Shore A] | 15 (Shore A) |
| Sealing material | EPDM |
| Color | black |

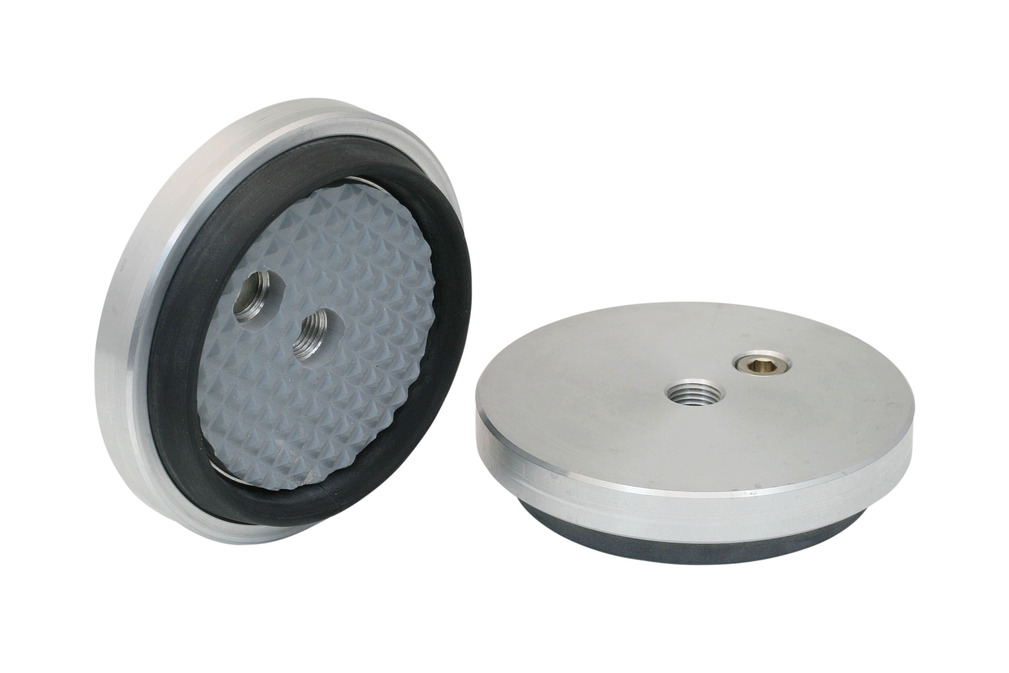

Part no.: 10.01.01.12061
Design Data
Design Data
| Attribute | Value |
|---|---|
| d3 | 66.8 mm |
| Dmax(S) | 95.2 mm |
| Ds | 80 mm |
| G1 | G1/4"-F |
| G2 | G1/4"-F |
| H | 22 mm |
| L2 | 22 mm |
| LG1 | 11.5 mm |
| LG2 | 11.5 mm |
| Z (Stroke) | 4 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Suction force (-600mbar) | 256 N |
| Volume | 21.3 cm³ |
| Workpiece radius min. (convex) | 400 mm |
| Hose inner diameter (recom.) d | 9 mm |
| Size | 80 |
| Material hardness [Shore A] | 15 Shore A |
| Weight | 227 g |
| Number of folds | 0 |
| Product family | SPK |
Documentation
Documentation
Spare parts
Accessories
TV G1/4-AG 1310.05.10.00061Touch valve for deactivation of
unused suction cups or
vacuum blocks
| Thread G1 | G1/4"-M |
| Thread G2 | G1/8"-F |
| Spring stroke Z | 13 (mm) |
SU 10010.01.01.12840Cover for suction cup
| Size | 100 |
| Clamping range [mm] | 100.0 ... 115.0 mm |
| Temperature resistance | 80 (°C) |
