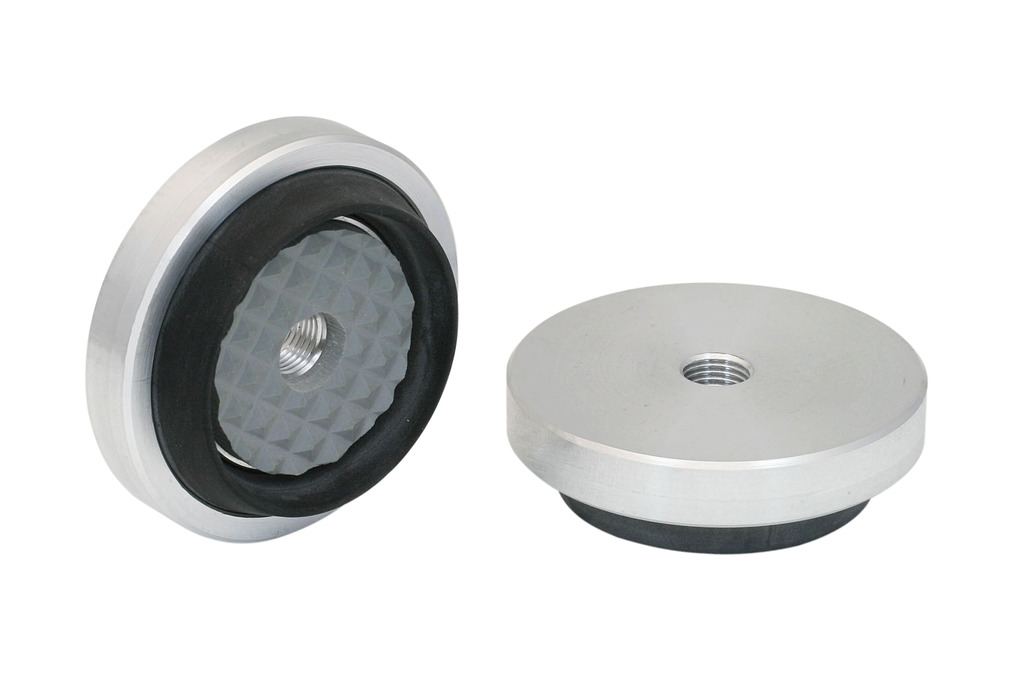

Part no.: 10.01.01.12060

Design Data

Attribute	Value
Dmax(S)	70 mm
Ds	55 mm
G1	G1/4"-F
H	22 mm
LG1	11.5 mm
Z (Stroke)	4 mm

Note: Acceptable dimensional tolerances for elastomer parts concerning to DIN ISO 3302-1 M3

Technical Data

Attribute	Value
Suction force (-600mbar)	121 N
Volume	11.7 cm³
Workpiece radius min. (convex)	250 mm
Hose inner diameter (recom.) d	9 mm
Size	55
Material hardness [Shore A]	15 Shore A
Weight	115 g
Number of folds	0
Product family	SPK

Note: Permissible dimensional tolerances for elastomer parts according to DIN ISO 3302-1 M3 Note: Suction force: The specified suction forces are theoretical values at a vacuum of -0.6 bar and with a smooth, dry and even workpiece surface - they do not include a safety factor Hose diameter: The recommended hose diameter refers to a hose length of approx. 2 m
