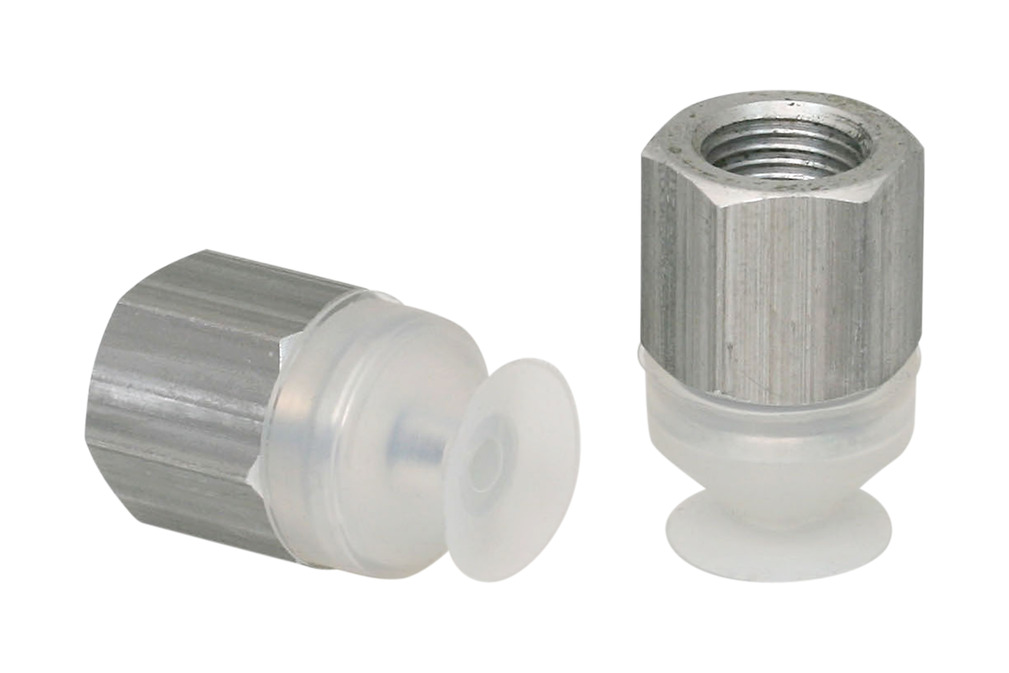

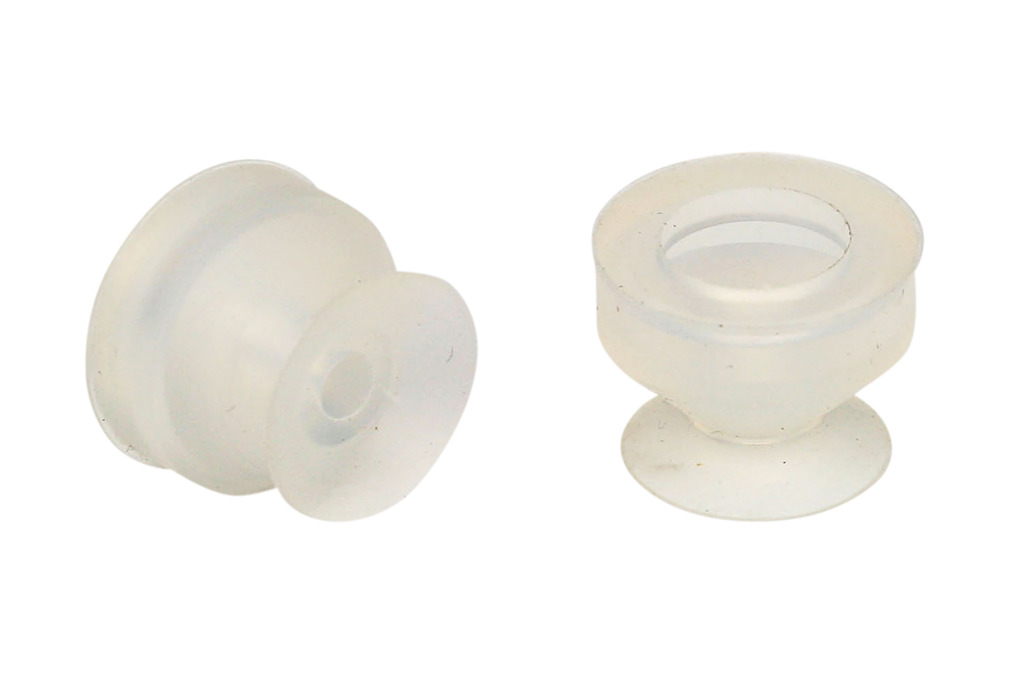

SGAN 13 SI-55 G1/8-IG
Part no.: 10.01.01.00805
Flat suction cup (round) for particularly sensitive workpieces
| Size | 13 |
| Suction cup material | Silicone SI |
| Material hardness [Shore A] | 55 (Shore A) |
| Connection | G1/8"-F |
Design Data
Design Data
| Attribute | Value |
|---|---|
| dn | 3 mm |
| Dmax(S) | 13.5 mm |
| Ds | 12 mm |
| G1 | G1/8"-F |
| H | 25 mm |
| LG1 | 8 mm |
| SW1 | 14 mm |
| Z (Stroke) | 2 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Suction force (-600mbar) | 4.7 N |
| Volume | 0.44 cm³ |
| Workpiece radius min. (convex) | 12.5 mm |
| Hose inner diameter (recom.) d | 4 mm |
| Size | 13 |
| Nipple family | N 029 |
| Suction cup material | Silicone SI |
| Material hardness [Shore A] | 55 Shore A |
| Weight | 6.4 g |
| Number of folds | 0 |
| Product family | SGAN |
