SAF 100 NBR-45 M10-AG
Part no.: 10.01.01.11476
Flat suction cup (round) for very dynamic handling of smooth and oily workpieces
| Size | 100 |
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 45 (Shore A) |
| Nipple material | Steel |
| Connection | M10-AG |

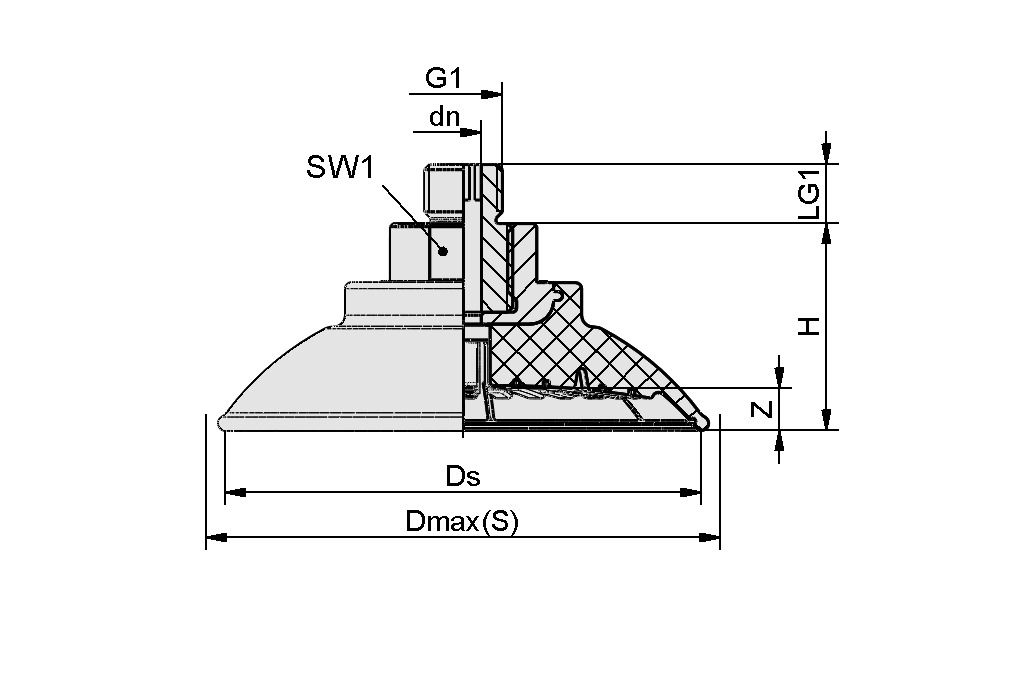

Design Data
Design Data
| Attribute | Value |
|---|---|
| dn | 4 mm |
| Dmax(S) | 110 mm |
| Ds | 103 mm |
| G1 | M10-M |
| H | 36 mm |
| LG1 | 12 mm |
| SW1 | 22 mm |
| Z (Stroke) | 9.5 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Suction force (-600mbar) | 430 N |
| Lateral force | 310 N |
| Lateral force oily surface | 300 N |
| Volume | 59.9 cm³ |
| Workpiece radius min. (convex) | 135 mm |
| Hose inner diameter (recom.) d | 6 mm |
| Size | 100 |
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 45 Shore A |
| Weight | 90.6 g |
| Number of folds | 0 |
| Product family | SAF |
