SAF 80 NBR-60 G3/8-IG

Part no.: 10.01.01.10514

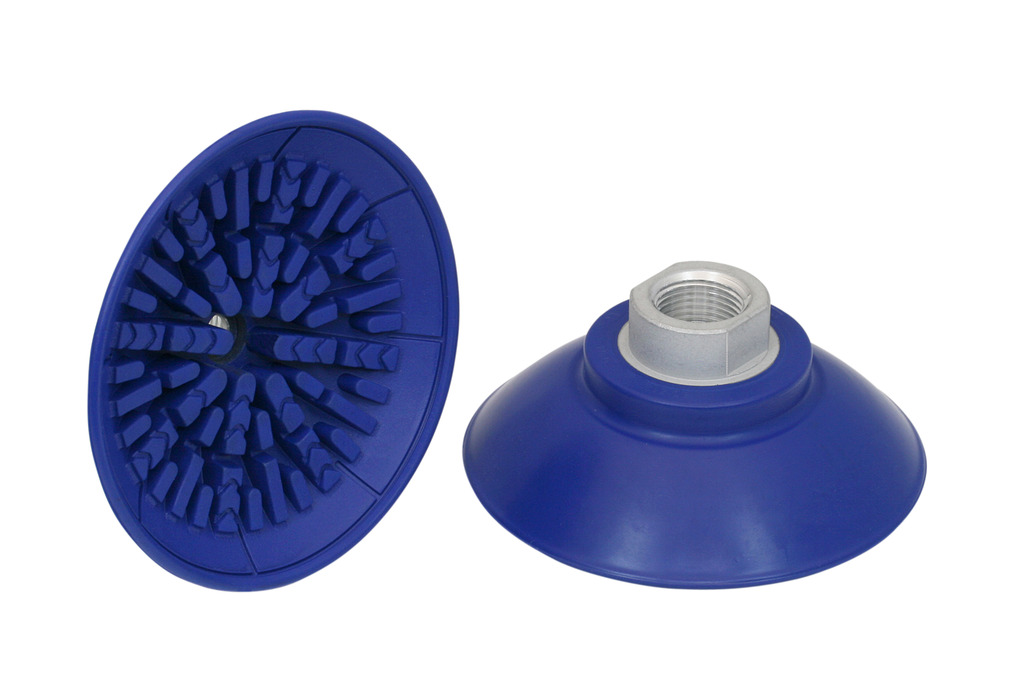

Flat suction cup (round) for very dynamic handling of smooth and oily workpieces

Size	80
Suction cup material	Nitrile rubber NBR
Material hardness [Shore A]	60 (Shore A)
Nipple material	Aluminum
Connection	G3/8-IG

Product information

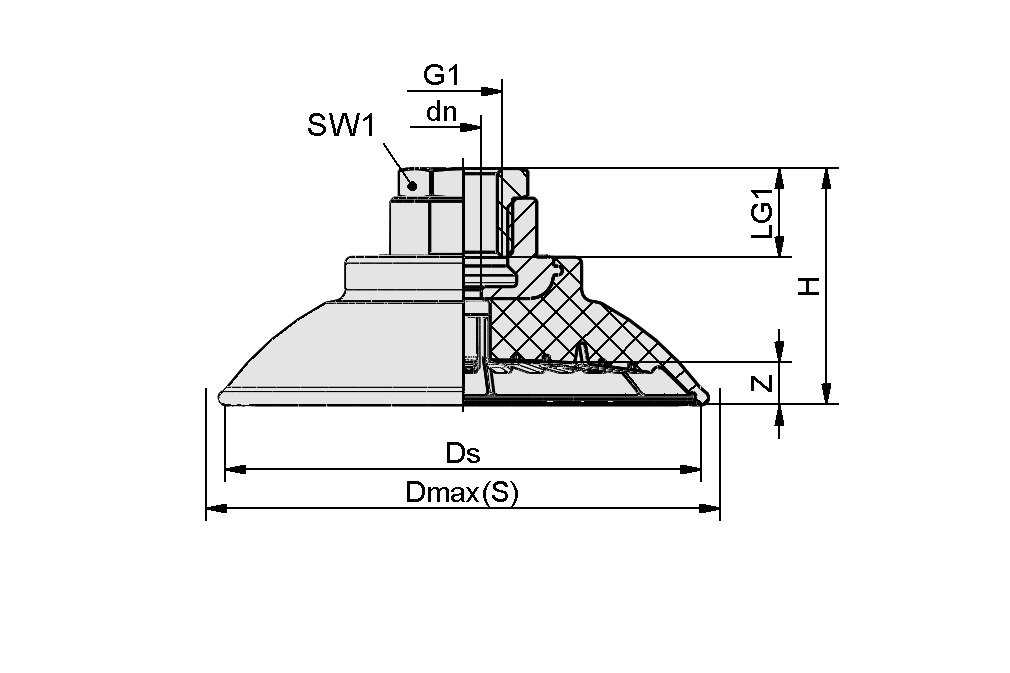

Design Data

Attribute	Value
dn	6 mm
Dmax(S)	89 mm
Ds	83 mm
G1	G3/8"-F
H	35 mm
LG1	15 mm
SW1	22 mm
Z (Stroke)	7.6 mm

Note: Acceptable dimensional tolerances for elastomer parts concerning to DIN ISO 3302-1 M3

Technical Data

Attribute	Value
Suction force (-600mbar)	272 N
Lateral force	205 N
Lateral force oily surface	180 N
Volume	36.7 cm³
Workpiece radius min. (convex)	100 mm
Hose inner diameter (recom.) d	6 mm
Size	80
Suction cup material	Nitrile rubber NBR
Material hardness [Shore A]	60 Shore A
Weight	56 g
Number of folds	0
Product family	SAF

Note: Suction force: The specified suction forces are theoretical values at a vacuum of -0.6 bar and with a dry, smooth and even workpiece surface - they do not include a safety factor Lateral force: The specified lateral forces are values measured at a vacuum of -0.6 bar with a dry or oily, smooth, flat workpiece surface. Depending on the workpiece surface and its quality, the actual values may deviate from these values Hose diameter: The recommended hose diameter refers to a hose length of approx. 2 m
