SA-NIP N004 M5-IG DN20010.01.01.03518Suction cup connection nipple
| Thread G1 | M5-F |
| Length L1 | 14 (mm) |
| Fitting length | 10 (mm) |
| Material | Aluminum |

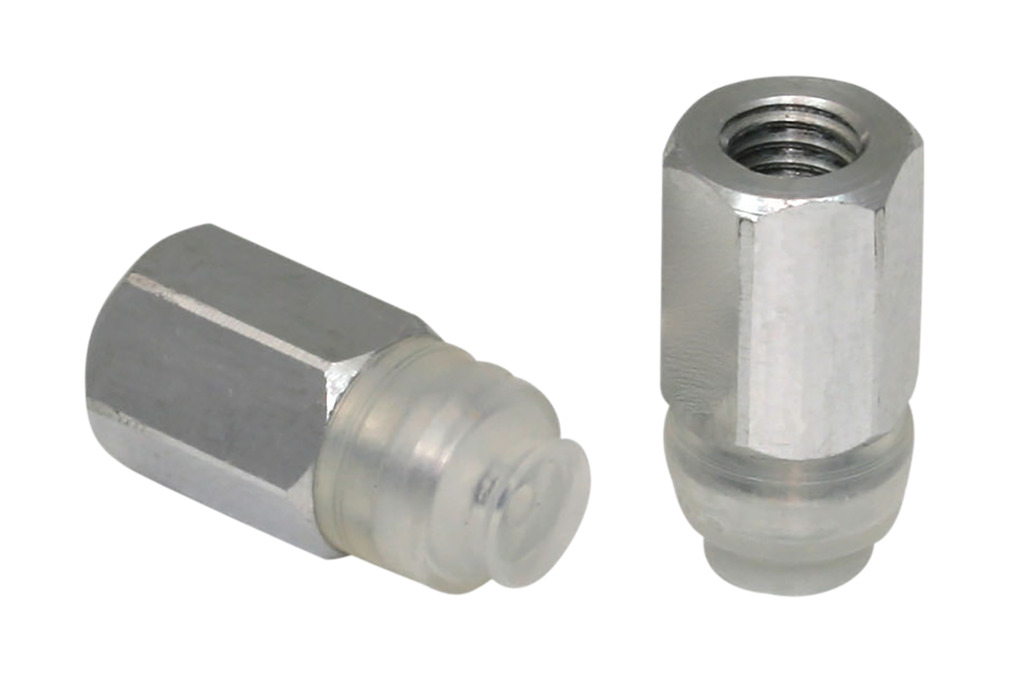

PFYN 5 SI-55 M5-IG
Part no.: 10.01.01.00095
Flat suction cup (round) for smooth or slightly rough surfaces
| Size | 5 |
| Suction cup material | Silicone SI |
| Material hardness [Shore A] | 55 (Shore A) |
| Nipple material | Aluminum |
| Vacuum connection | M5-F |
Design Data
Design Data
| Attribute | Value |
|---|---|
| dn | 1.5 mm |
| Dmax(S) | 5.5 mm |
| Ds | 5 mm |
| G1 | M5-F |
| H | 16.5 mm |
| LG1 | 5.5 mm |
| SW1 | 8 mm |
| Z (Stroke) | 0.9 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Suction force (-600mbar) | 0.75 N |
| Volume | 0.01 cm³ |
| Workpiece radius min. (convex) | 7.5 mm |
| Hose inner diameter (recom.) d | 2 mm |
| Size | 5 |
| Suction cup material | Silicone SI |
| Material hardness [Shore A] | 55 Shore A |
| Weight | 1.4 g |
| Product family | PFYN |
| Number of folds | 0 |
Documentation
Documentation
Spare parts
PFG 5 SI-55 N00410.01.01.00027Flat suction cup (round) for
smooth or slightly rough surfaces
| Size | 5 |
| Suction cup material | Silicone SI |
| Material hardness [Shore A] | 55 (Shore A) |
| Material characteristics | FDA-compatible |
