Part no.: 10.05.10.00086

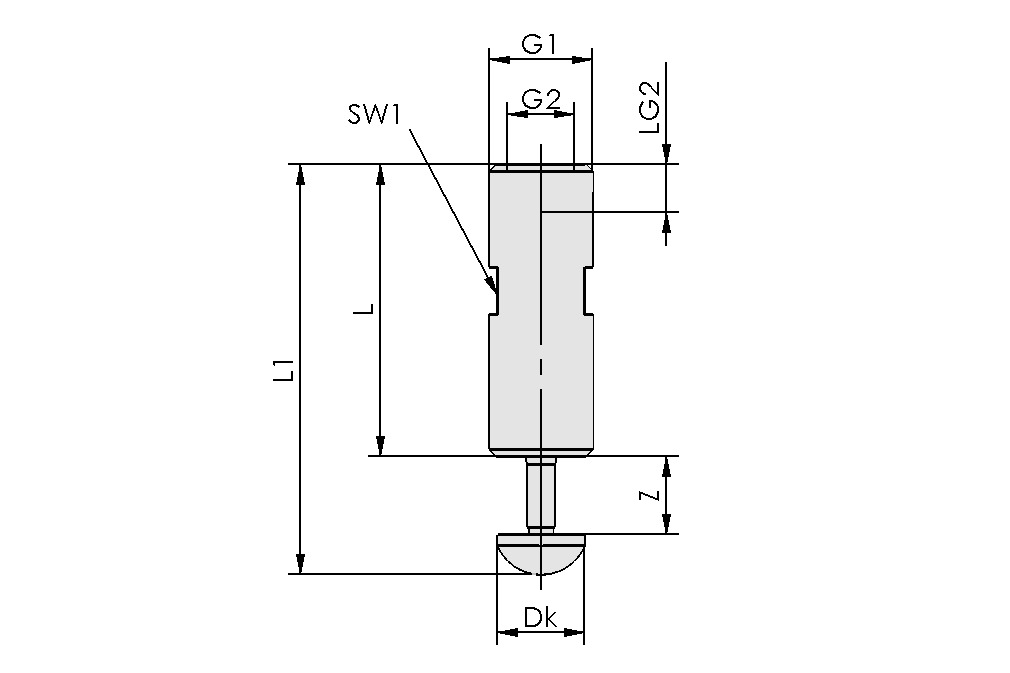

Design Data
Design Data
| Attribute | Value |
|---|---|
| Dk | 7 mm |
| G1 | G1/4"-M |
| G2 | G1/8"-F |
| L | 45.5 mm |
| L1 | 66.7 mm |
| LG2 | 6 mm |
| SW1 | 11 mm |
| Z (Stroke) | 12 mm |
Documentation
Documentation
Part no.: 10.05.10.00086
| Attribute | Value |
|---|---|
| Dk | 7 mm |
| G1 | G1/4"-M |
| G2 | G1/8"-F |
| L | 45.5 mm |
| L1 | 66.7 mm |
| LG2 | 6 mm |
| SW1 | 11 mm |
| Z (Stroke) | 12 mm |
