SA-NIP N008 G1/8-AG DN35010.01.01.03532Suction cup connection nipple
| Thread G1 | G1/8"-M |
| Length L1 | 22 (mm) |
| Fitting length | 5 (mm) |
| Material | Aluminum |
| SW2 | 4 (mm) |
PFG 50 NBR-CO-55 N008
Part no.: 10.01.01.10342
Flat suction cup (round) for smooth or slightly rough surfaces
| Size | 50 |
| Suction cup material | Nitrile rubber NBR-conductive |
| Material hardness [Shore A] | 55 (Shore A) |

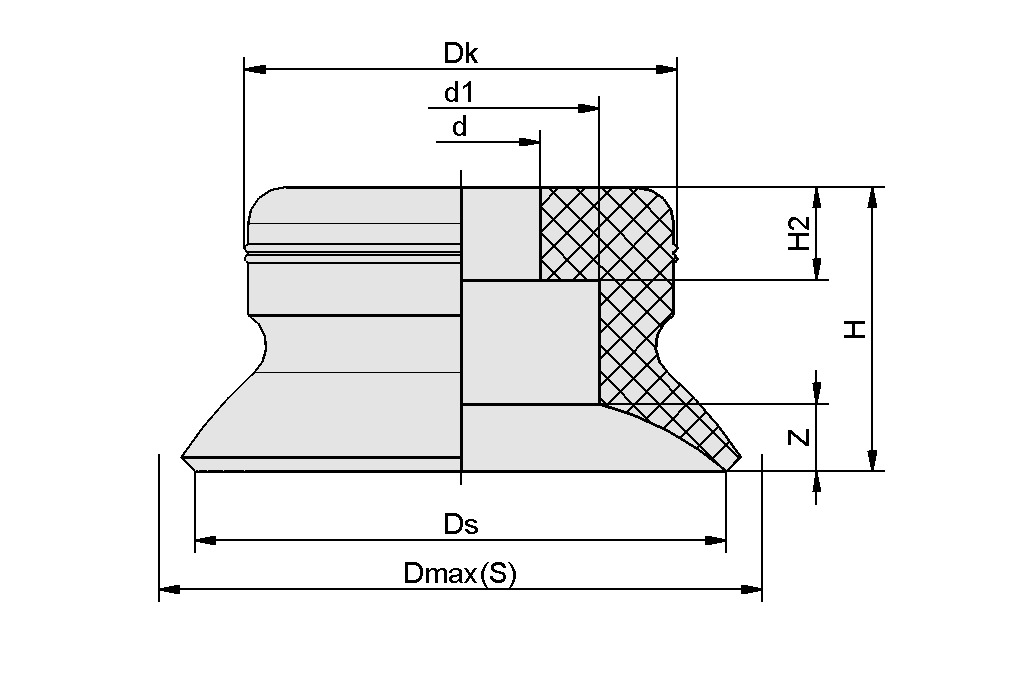

Design Data
Design Data
| Attribute | Value |
|---|---|
| d | 8 mm |
| d1 | 20 mm |
| Dk | 29.1 mm |
| Dmax(S) | 53.5 mm |
| Ds | 50 mm |
| H | 15 mm |
| H2 | 7 mm |
| Z (Stroke) | 4 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Suction force (-600mbar) | 91 N |
| Volume | 7.08 cm³ |
| Workpiece radius min. (convex) | 75 mm |
| Size | 50 |
| Nipple family | N 008 |
| Suction cup material | Nitrile rubber NBR-conductive |
| Material hardness [Shore A] | 55 Shore A |
| Weight | 10.2 g |
| Product family | PFG |
Accessories
SA-NIP N008 G1/8-IG DN35010.01.01.03524Suction cup connection nipple
| Thread G1 | G1/8"-F |
| Length L1 | 25 (mm) |
| Fitting length | 16 (mm) |
| Material | Aluminum |
| SW2 | 4 (mm) |
SU 5010.01.01.12837Cover for suction cup
| Size | 50 |
| Clamping range [mm] | 45.0 ... 60.0 mm |
| Temperature resistance | 80 (°C) |
