Part no.: 10.01.01.00549

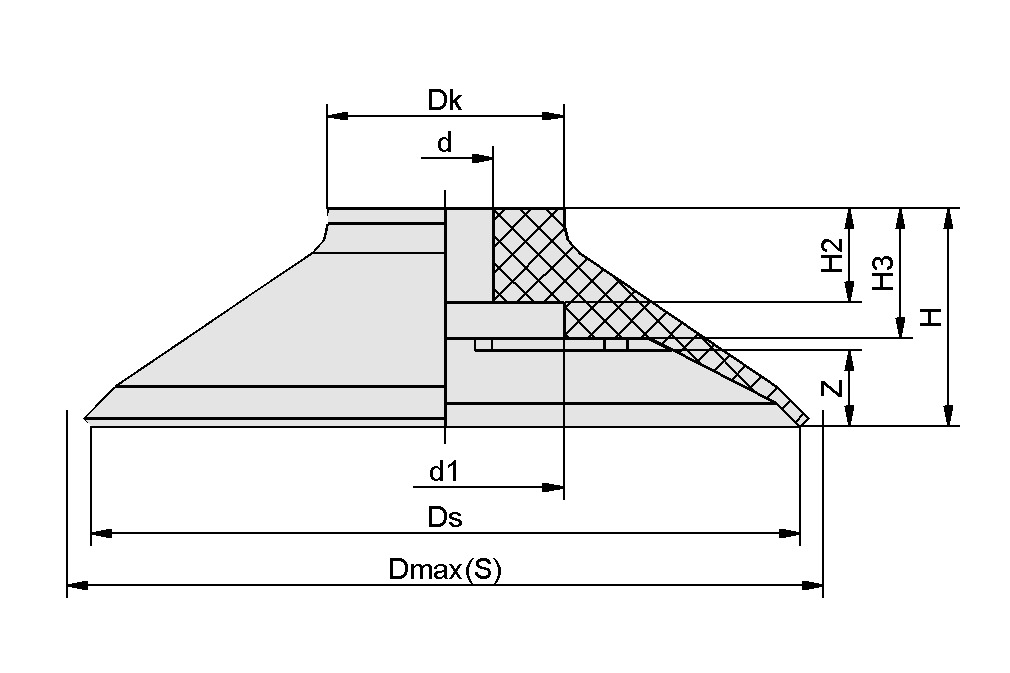

Design Data

Attribute	Value
d	6 mm
d1	11 mm
Dk	16 mm
Dmax(S)	31.5 mm
Ds	29 mm
H	13 mm
H2	7 mm
H3	7 mm
Z (Stroke)	3 mm

Note: Acceptable dimensional tolerances for elastomer parts concerning to DIN ISO 3302-1 M3

Technical Data

Attribute	Value
Size	30
Suction cup material	Vulkollan VU1
Suction force (-600mbar)	32 N
Volume	2.06 cm³
Workpiece radius min. (convex)	30 mm
Material hardness [Shore A]	72 Shore A
Weight	2.5 g
Number of folds	0
Product family	PFG

Note: Suction force: The suction force values are theoretical values at -0.6 bar vacuum and a dry, smooth and even workpiece surface – they are specified without safety factors. Hose inner diameter: The recommended hose diameter refers to a hose length of approx. 2 m
