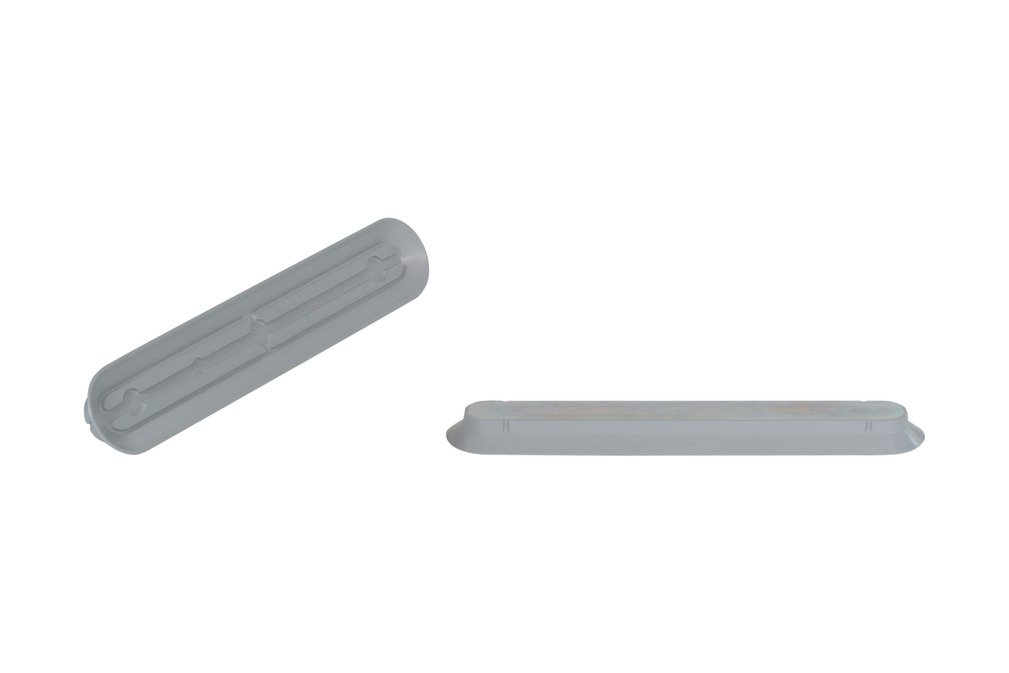

Part no.: 10.01.05.00187

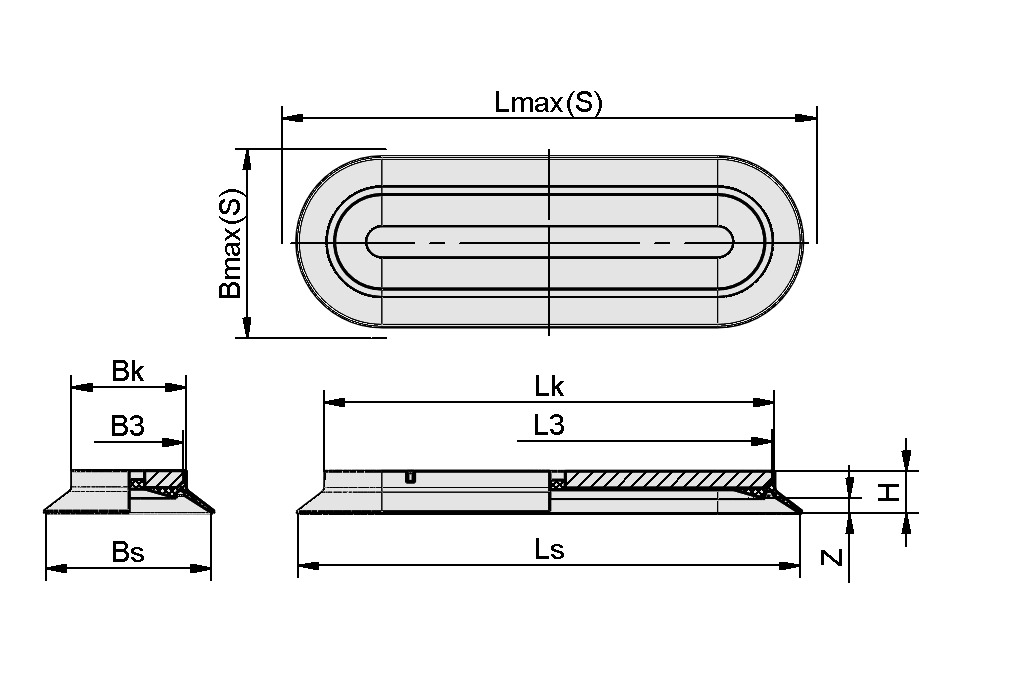

Design Data
Design Data
| Attribute | Value |
|---|---|
| B3 | 28 mm |
| Bk | 31 mm |
| Bmax(S) | 60 mm |
| Bs | 51.4 mm |
| H | 19 mm |
| L3 | 273 mm |
| Lk | 275.3 mm |
| Lmax.(S) | 305 mm |
| Ls | 296.4 mm |
| Z (Stroke) | 6.8 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Suction force (-600mbar) | 710 N |
| Volume | 92.73 cm³ |
| Workpiece radius min. (convex) | 50 mm |
| Number of folds | 0 |
| Dimension (LxW) | 300 x 55 |
| Suction cup material | Nitrile rubber NBR |
| Weight | 530 g |
| Product family | SPLO |
