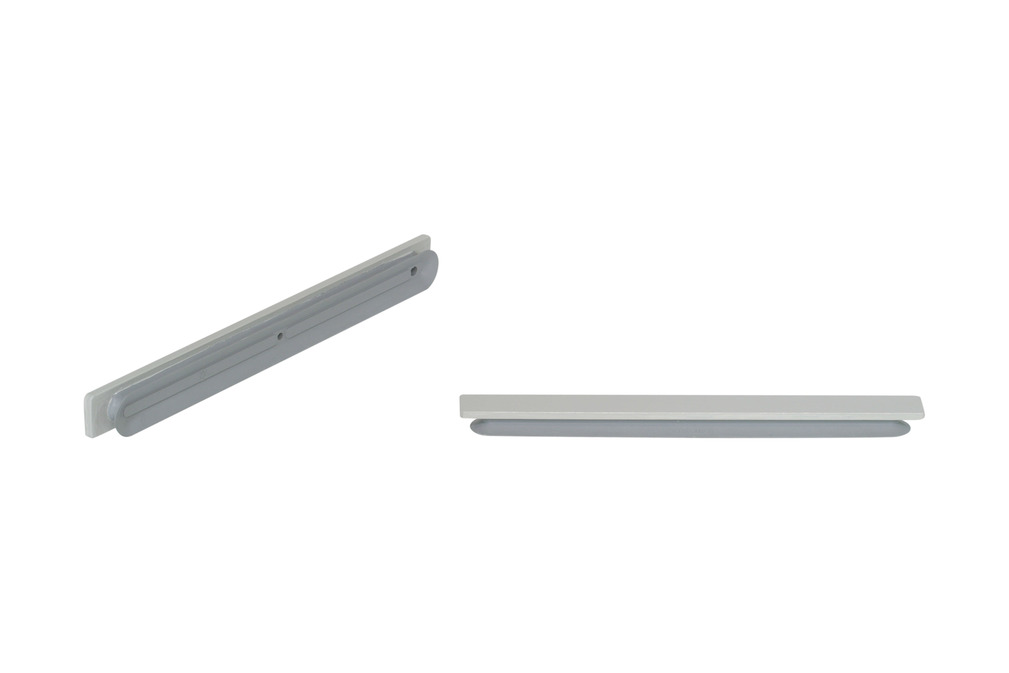

Part no.: 10.01.05.00184

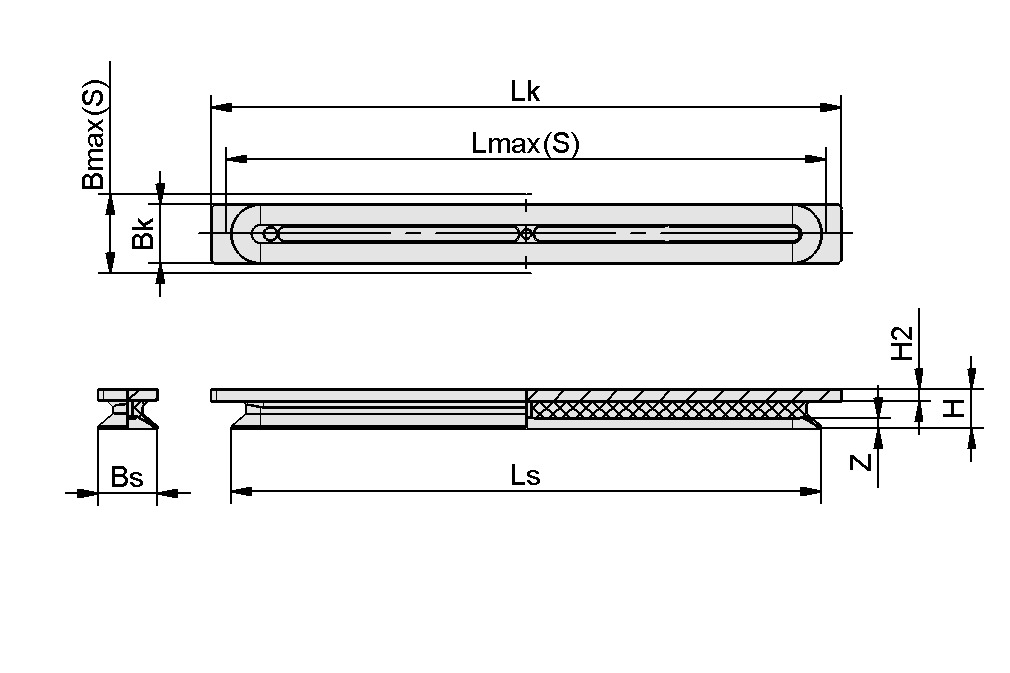

Design Data
Design Data
| Attribute | Value |
|---|---|
| Bk | 30 mm |
| Bmax(S) | 33 mm |
| Bs | 30 mm |
| H | 20 mm |
| H2 | 6 mm |
| Lk | 320 mm |
| Lmax.(S) | 304 mm |
| Ls | 300 mm |
| Z (Stroke) | 5 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Suction force (-600mbar) | 400 N |
| Volume | 32.43 cm³ |
| Workpiece radius min. (convex) | 30 mm |
| Number of folds | 0 |
| Dimension (LxW) | 300 x 30 |
| Suction cup material | Nitrile rubber NBR |
| Weight | 600 g |
| Product family | SPLO |
