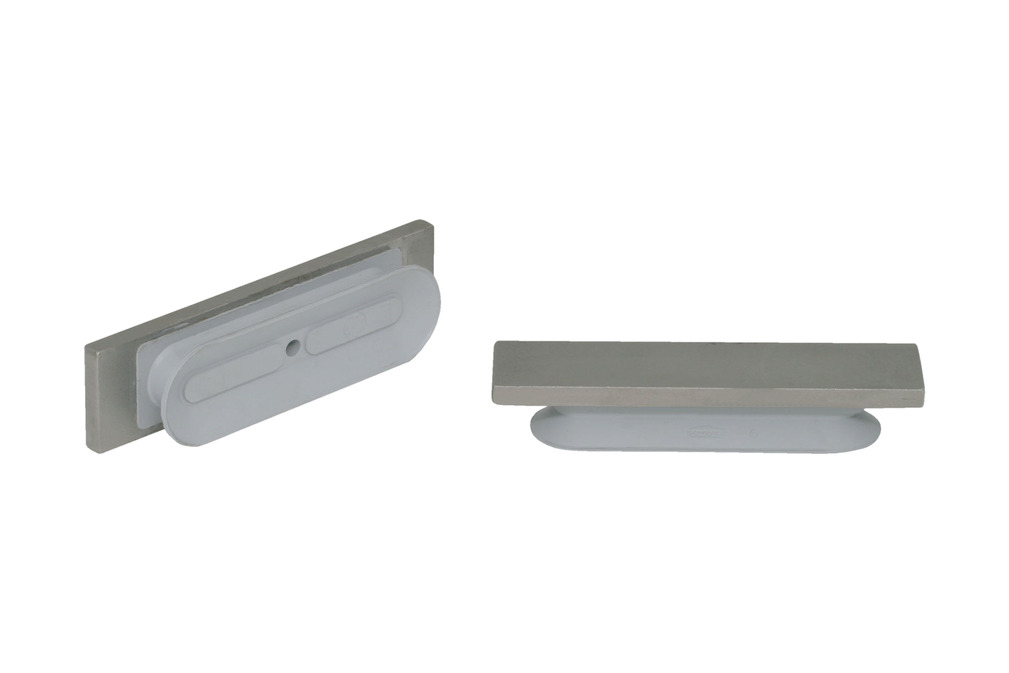

Part no.: 10.01.05.00182

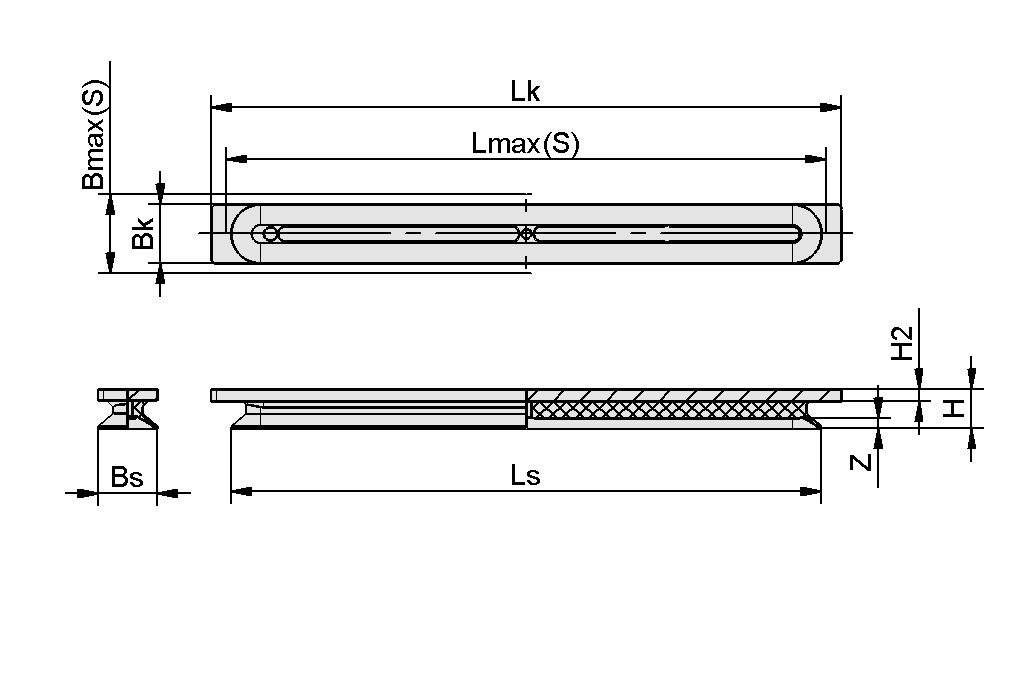

Design Data
Design Data
| Attribute | Value |
|---|---|
| Bk | 30 mm |
| Bmax(S) | 33.5 mm |
| Bs | 28.7 mm |
| H | 21 mm |
| H2 | 6 mm |
| Lk | 120 mm |
| Lmax.(S) | 102.8 mm |
| Ls | 98 mm |
| Z (Stroke) | 5 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Suction force (-600mbar) | 126 N |
| Volume | 10.02 cm³ |
| Workpiece radius min. (convex) | 25 mm |
| Number of folds | 0 |
| Dimension (LxW) | 100 x 30 |
| Suction cup material | Nitrile rubber NBR |
| Weight | 200 g |
| Product family | SPLO |
