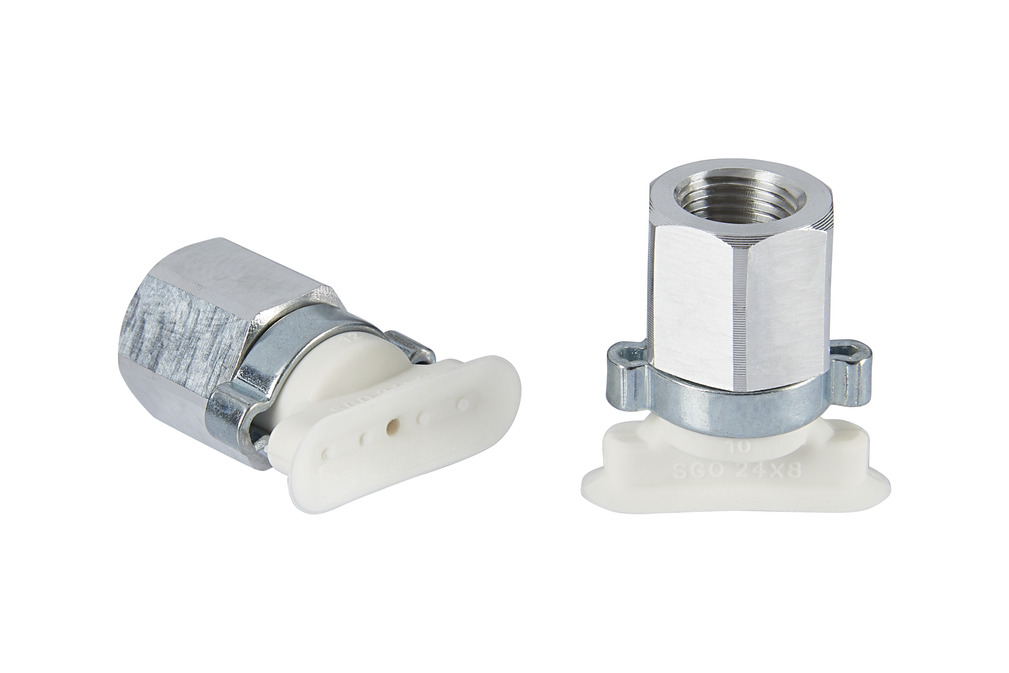

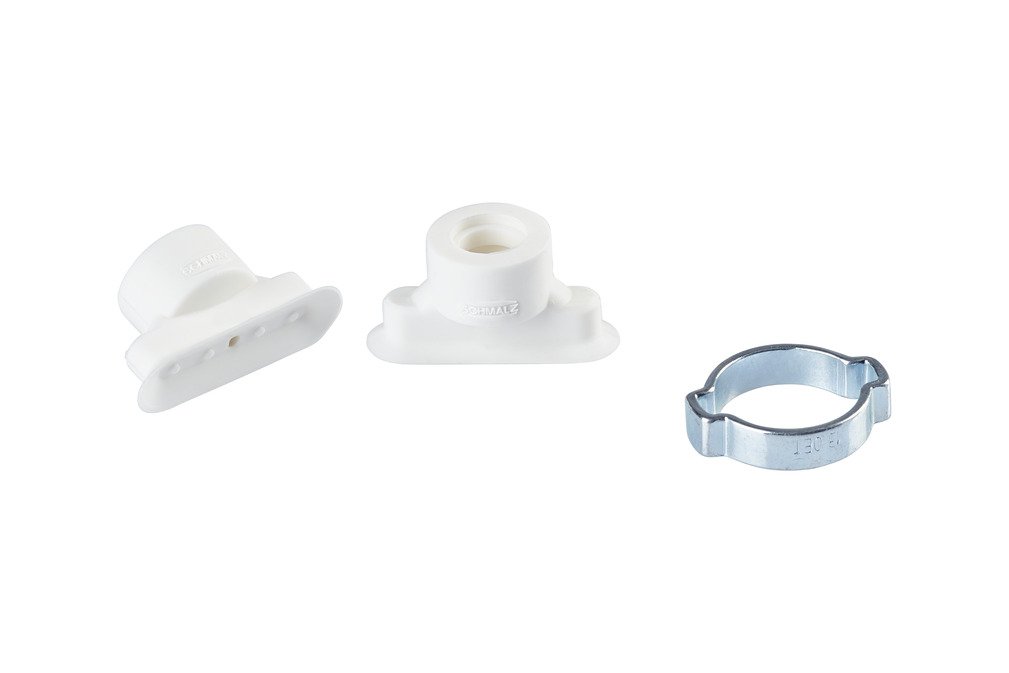

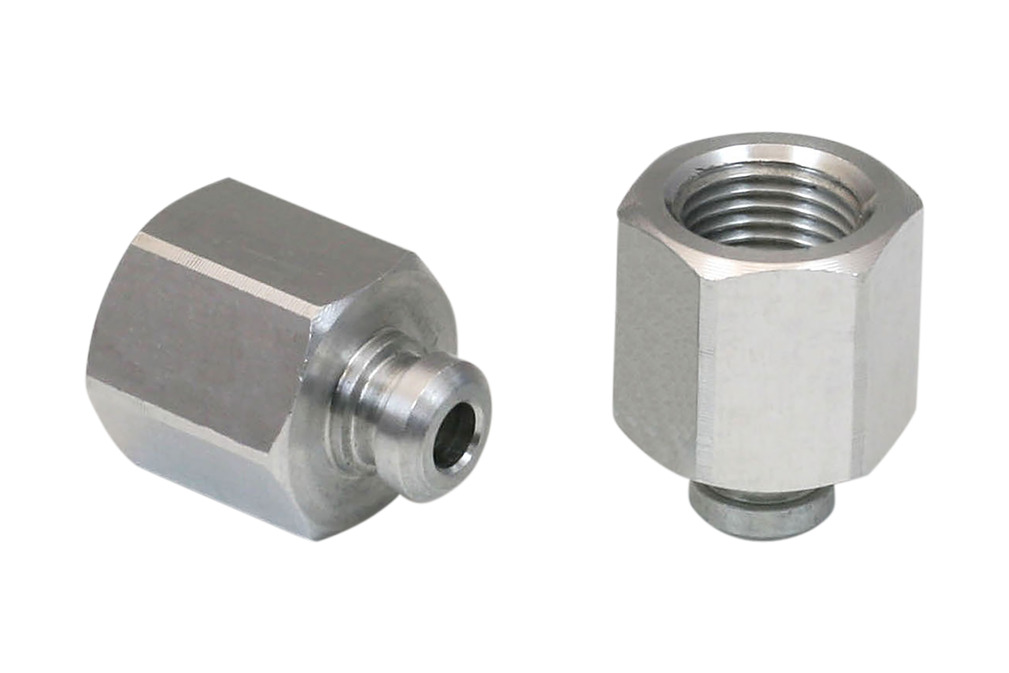

Part no.: 10.01.05.01051

Design Data

Attribute	Value
Bmax(S)	9 mm
Bs	8 mm
dn	1.5 mm
G1	G1/8"-F
H	25 mm
LG1	9 mm
Lmax.(S)	24.5 mm
Ls	24 mm
SW1	14 mm
Z (Stroke)	1 mm

Note: Acceptable dimensional tolerances for rubber parts concerning to DIN ISO 3302-1 M3.

Technical Data

Attribute	Value
Suction force (-600mbar)	8 N
Volume	0.33 cm³
Workpiece radius min. (convex)	7.5 mm
Hose inner diameter (recom.) d	4 mm
Number of folds	0
Suction cup material	Silicone SI-HD
Material hardness [Shore A]	65 Shore A
Weight	7.4 g
Product family	SGON

Note: Suction force: The suction force values are theoretical values at -0.6 bar vacuum and a dry, smooth and even workpiece surface – they are specified without safety factors. Hose inner diameter: The recommended hose diameter refers to a hose length of approx. 2 m
