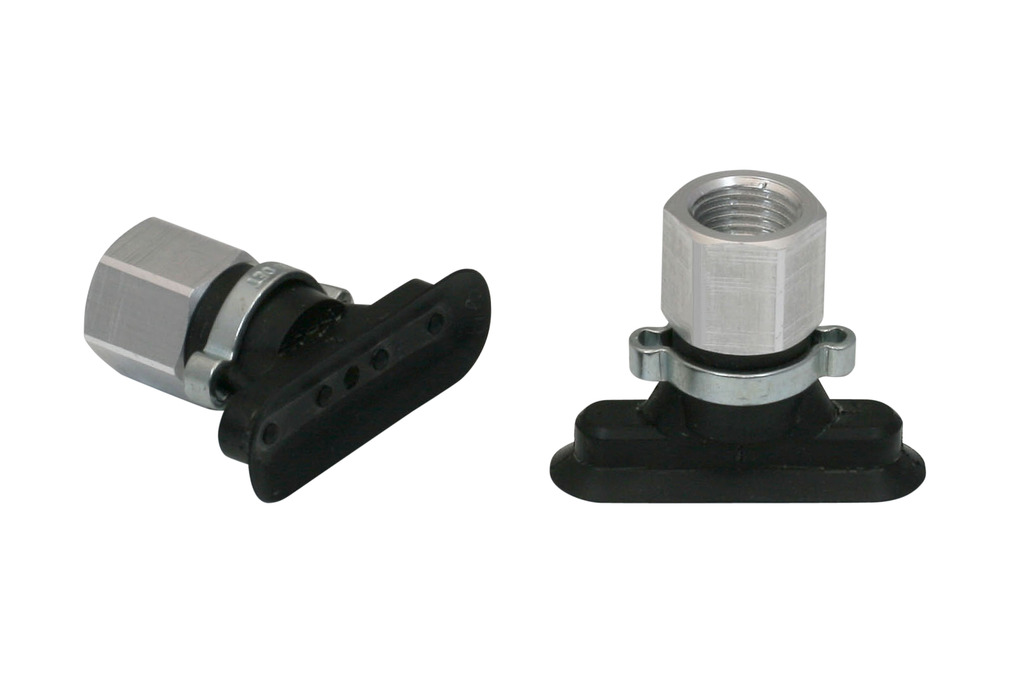

Part no.: 10.01.05.00097

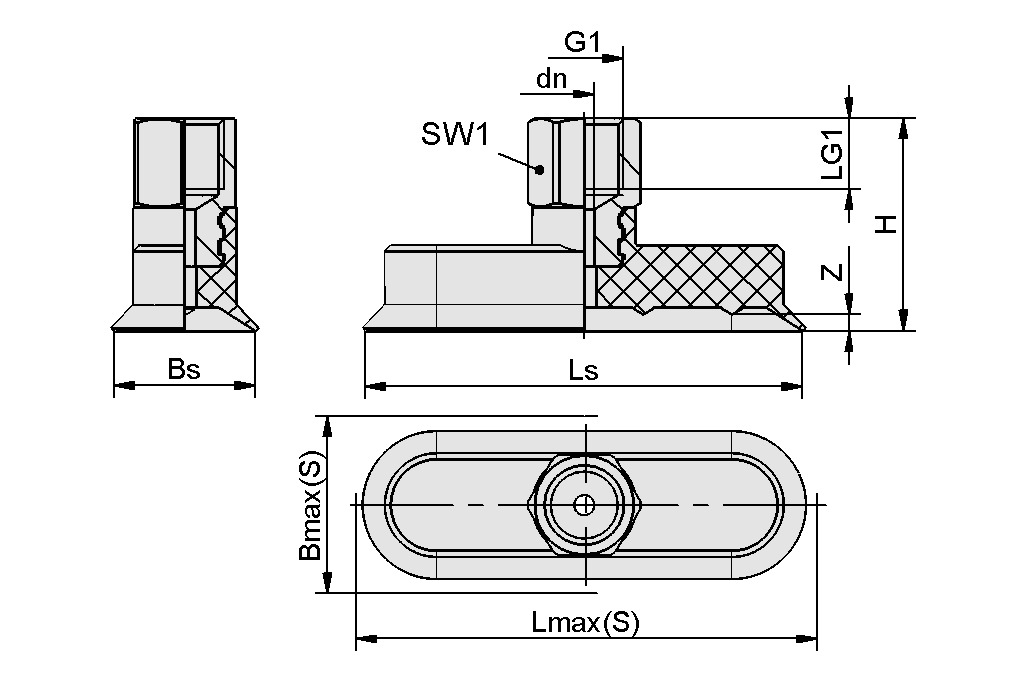

| Attribute | Value |
|---|---|
| Bmax(S) | 16.5 mm |
| Bs | 14.4 mm |
| dn | 3 mm |
| G1 | G1/4"-F |
| H | 36 mm |
| LG1 | 12 mm |
| Lmax.(S) | 46 mm |
| Ls | 44.4 mm |
| SW1 | 17 mm |
| Z (Stroke) | 2 mm |
| Attribute | Value |
|---|---|
| Suction force (-600mbar) | 28.2 N |
| Volume | 2.31 cm³ |
| Workpiece radius min. (convex) | 10 mm |
| Hose inner diameter (recom.) d | 6 mm |
| Dimension (LxW) | 45 x 15 |
| Number of folds | 0 |
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 55 Shore A |
| Weight | 14.3 g |
| Product family | SGON |
| Thread G1 | G1/4"-F |
| Length L1 | 25 (mm) |
| Fitting length | 15 (mm) |
| Nominal diameter dn | 3.5 (mm) |
| Material | Aluminum |
| Dimension (LxW) | 45 x 15 |
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 55 (Shore A) |
