Part no.: 10.01.05.00518

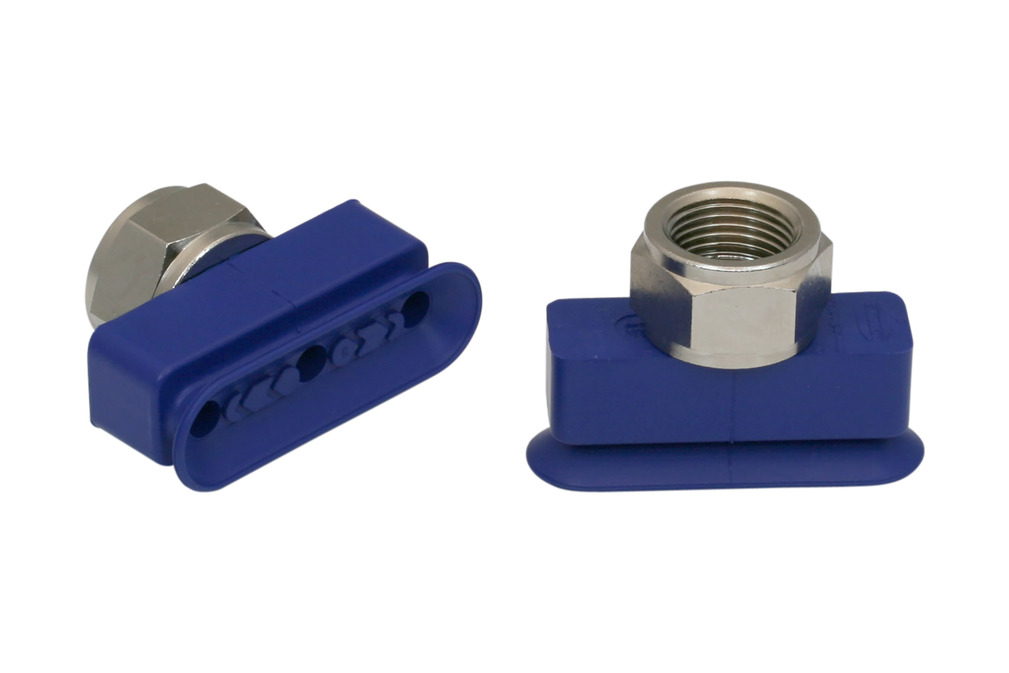

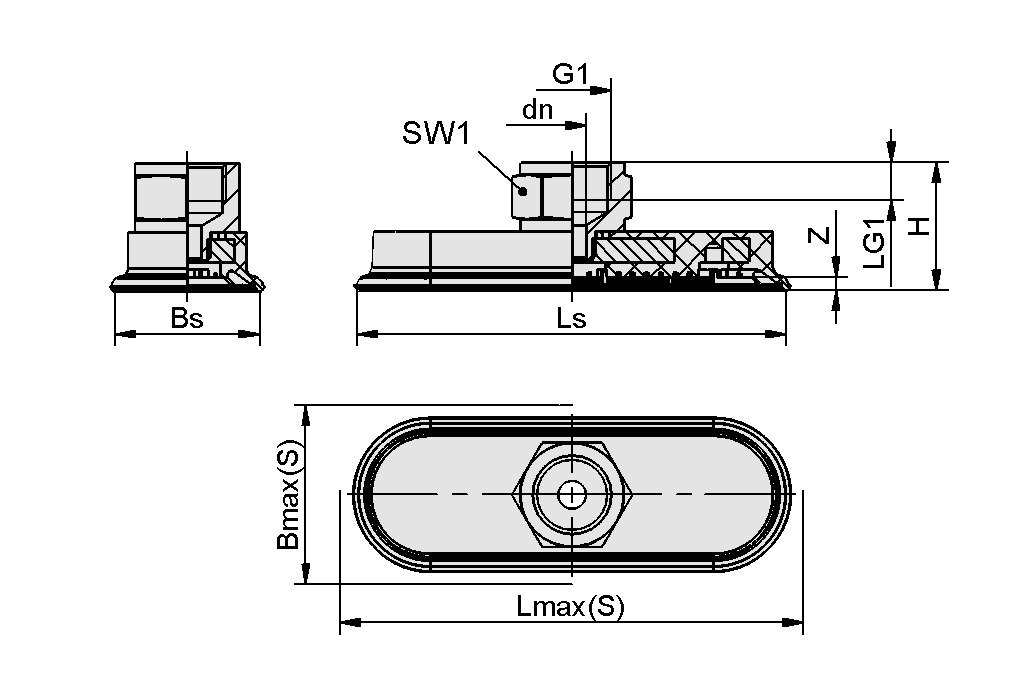

Design Data
Design Data
| Attribute | Value |
|---|---|
| Bmax(S) | 18 mm |
| Bs | 14.6 mm |
| dn | 6 mm |
| G1 | G3/8"-F |
| H | 34 mm |
| LG1 | 9 mm |
| Lmax.(S) | 52 mm |
| Ls | 48.6 mm |
| SW1 | 22 mm |
| Z (Stroke) | 3 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Suction force (-600mbar) | 31 N |
| Lateral force | 24 N |
| Lateral force oily surface | 12 N |
| Volume | 2.27 cm³ |
| Workpiece radius min. (convex) | 7.5 mm |
| Hose inner diameter (recom.) d | 4 mm |
| Number of folds | 0 |
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 60 Shore A |
| Weight | 45 g |
| Product family | SAOF |
| Dimension (LxW) | 50x16 |
