Part no.: 10.01.05.00937

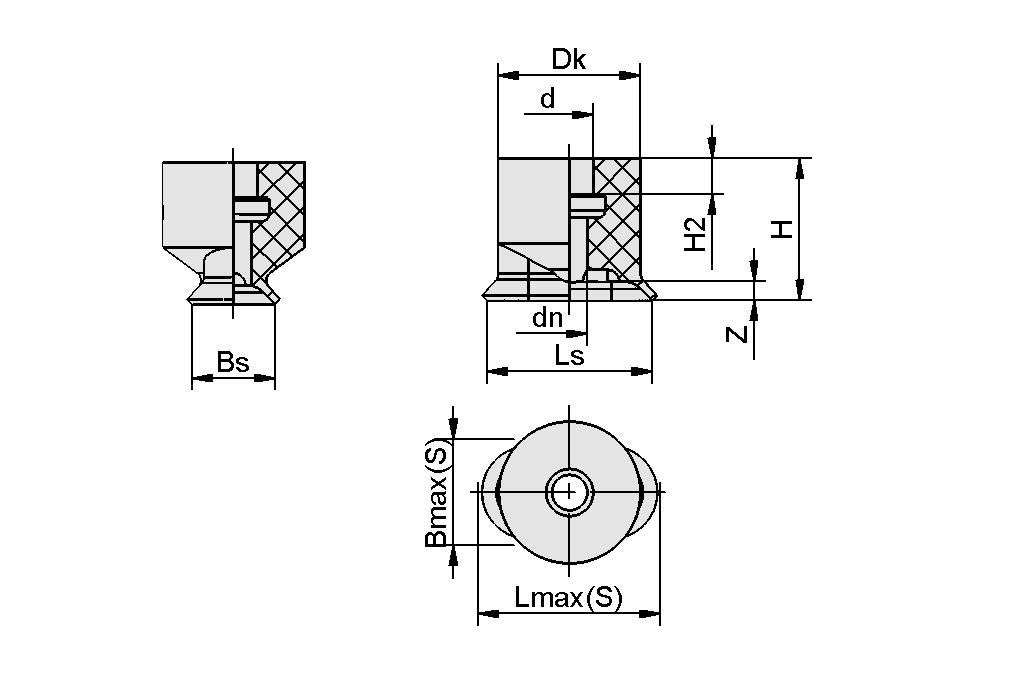

Design Data
Design Data
| Attribute | Value |
|---|---|
| Bmax(S) | 2.5 mm |
| Bs | 2 mm |
| d | 1.5 mm |
| dn | 1.2 mm |
| Dk | 6 mm |
| Lmax.(S) | 4.5 mm |
| Ls | 4 mm |
| H | 6 mm |
| H2 | 1.5 mm |
| Z (Stroke) | 0.5 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Suction force (-600mbar) | 0.4 N |
| Suction cup material | Nitrile rubber NBR-ESD |
| Material hardness [Shore A] | 55 Shore A |
| Weight | 0.1 g |
| Product family | SGO |
