Ordering information

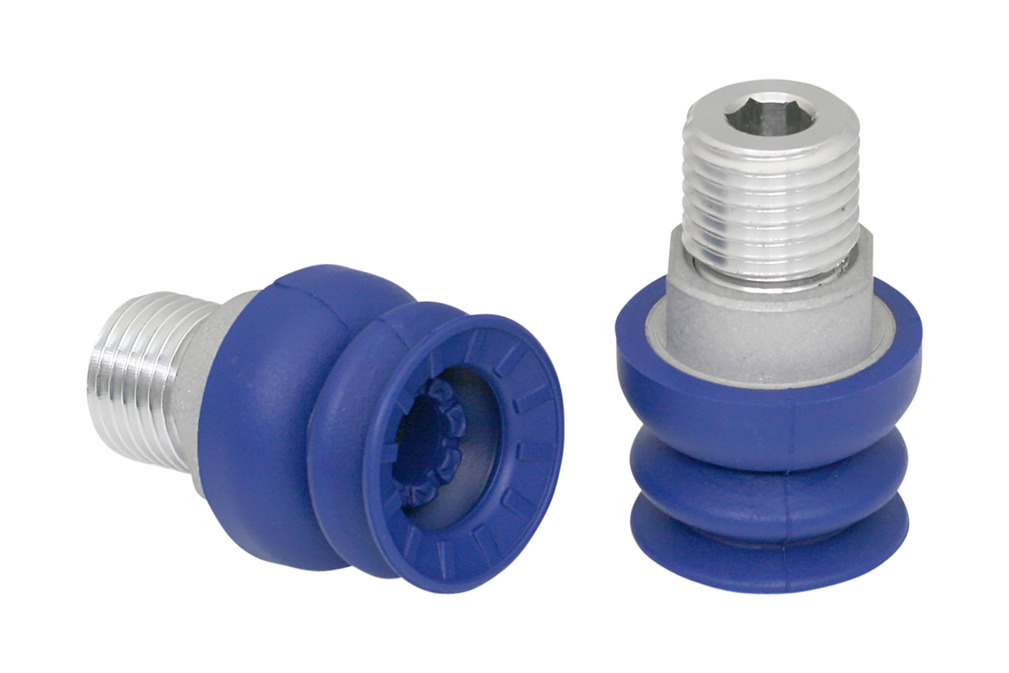

Suction cup SAB, available in various diameters, is delivered with connection nipple vulcanized to elastomer part.

Please try again later or contact your local contact person.

Part no.: 10.01.06.01655

Design Data

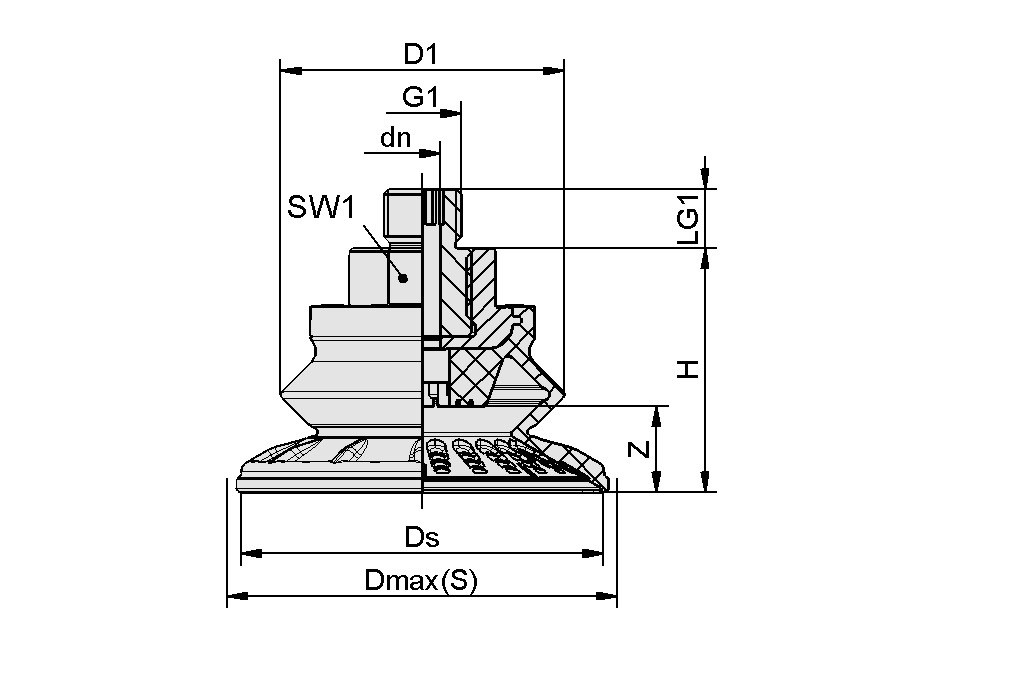

Design image
Attribute Value
dn 3.5  mm
D1 22  mm
Dmax(S) 24  mm
Ds 20.6  mm
G1 M14x1.5-M
H 25  mm
LG1 12  mm
SW1 16  mm
Z (Stroke) 5.8  mm
Note: Acceptable dimensional tolerances for elastomer parts concerning to DIN ISO 3302-1 M3
Technical Data
Attribute Value
Suction force (-600mbar) 16  N
Pull-off force 24  N
Lateral force 18  N
Lateral force oily surface 6  N
Volume 1.5  cm³
Workpiece radius min. (convex) 20  mm
Hose inner diameter (recom.) d 4  mm
Size 22
Suction cup material Nitrile rubber NBR
Material hardness [Shore A] 60  Shore A
Weight 7  g
Product family SAB
Number of folds 1.5
Note: Suction force: The specified suction forces are theoretical values at a vacuum of -0.6 bar and with a dry, smooth and even workpiece surface - they do not include a safety factor Lateral force: The specified lateral forces are values measured at a vacuum of -0.6 bar with a dry or oily, smooth, flat workpiece surface. Depending on the workpiece surface and its quality, the actual values may deviate from these values Hose diameter: The recommended hose diameter refers to a hose length of approx. 2 m
