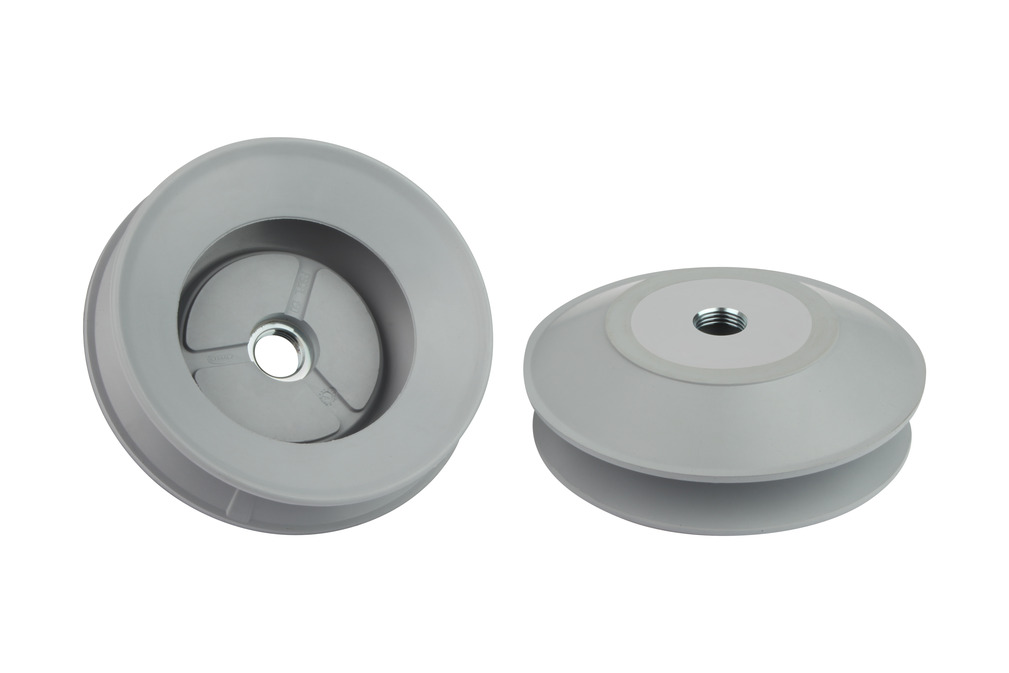

Part no.: 10.01.06.02933
Design Data
Design Data
| Attribute | Value |
|---|---|
| d2 | 79.3 mm |
| d3 | 69.4 mm |
| D1 | 127.8 mm |
| Dmax(S) | 135 mm |
| Ds | 118.2 mm |
| G1 | G1/2"-F |
| H | 51 mm |
| H4 | 8 mm |
| LG1 | 8 mm |
| Z (Stroke) | 35.7 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Suction force (-600mbar) | 280 N |
| Pull-off force | 400 N |
| Volume | 295.2 cm³ |
| Workpiece radius min. (convex) | 150 mm |
| Hose inner diameter (recom.) d | 12 mm |
| Size | 120 |
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 55 Shore A |
| Weight | 351 g |
| Number of folds | 1.5 |
| Product family | FSGPL |
