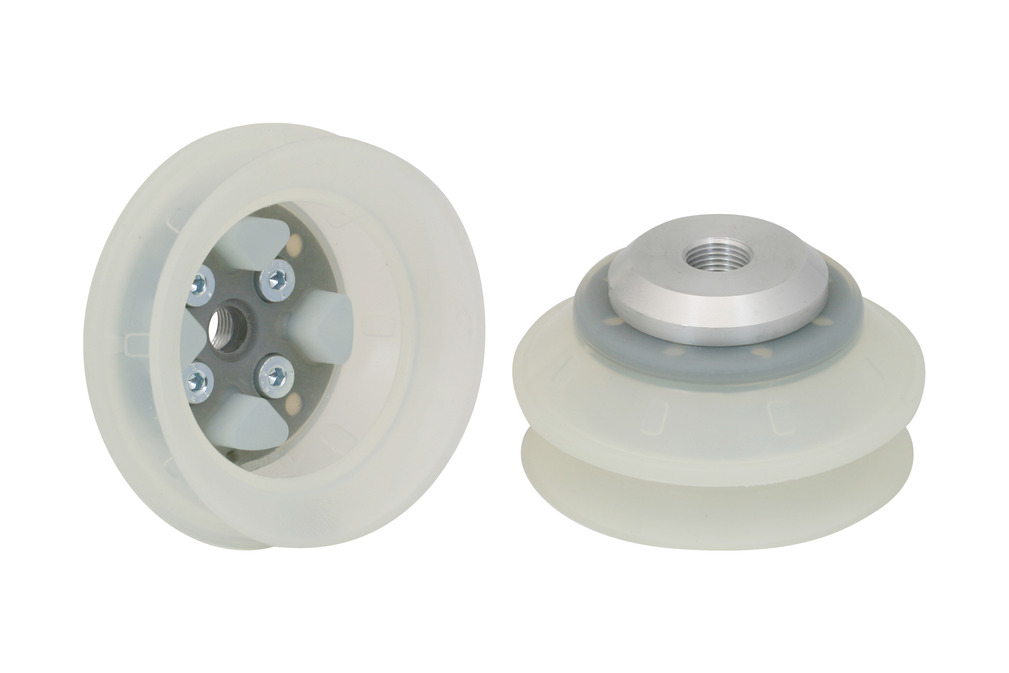

Part no.: 10.01.06.00119

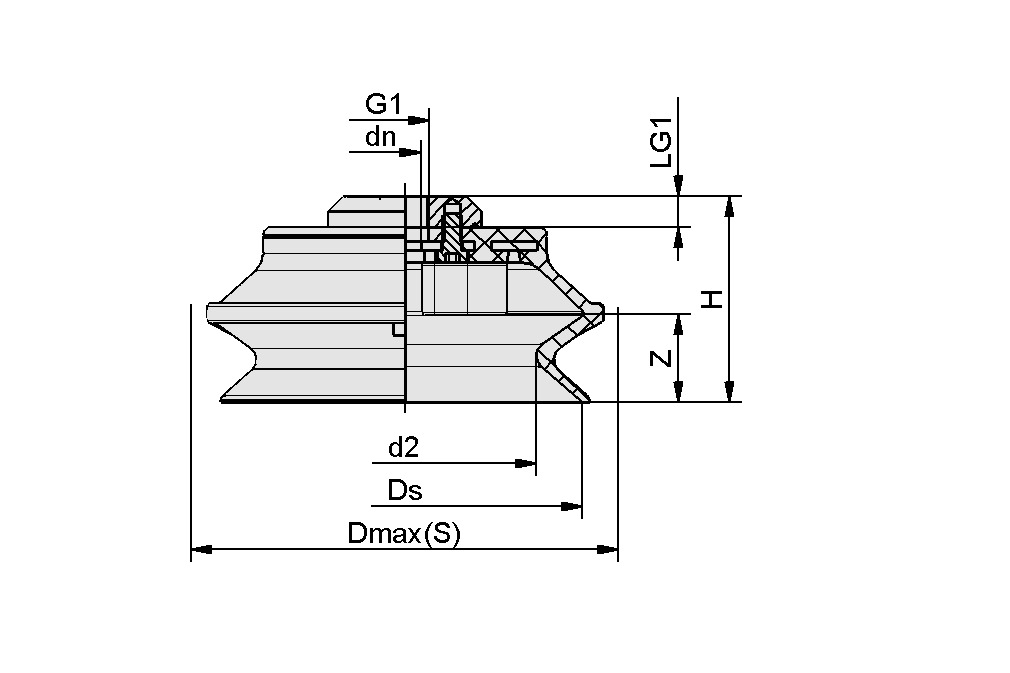

Design Data

Attribute	Value
dn	13.5 mm
d2	80 mm
Dmax(S)	130 mm
Ds	111 mm
G1	G1/2"-F
H	69.5 mm
LG1	13 mm
Z (Stroke)	29.5 mm

Note: Acceptable dimensional tolerances for elastomer parts concerning to DIN ISO 3302-1 M3

Technical Data

Attribute	Value
Suction force (-600mbar)	280 N
Pull-off force	570 N
Volume	330 cm³
Workpiece radius min. (convex)	85 mm
Hose inner diameter (recom.) d	12 mm
Size	110
Nipple family	N 010
Suction cup material	Silicone SI
Material hardness [Shore A]	55 Shore A
Weight	358.3 g
Product family	FSGA
Number of folds	1.5

Note: Suction force: The suction force values are theoretical values at -0.6 bar vacuum and a dry, smooth and even workpiece surface – they are specified without safety factors. Hose inner diameter: The recommended hose diameter refers to a hose length of approx. 2 m
