Part no.: 10.01.06.04143

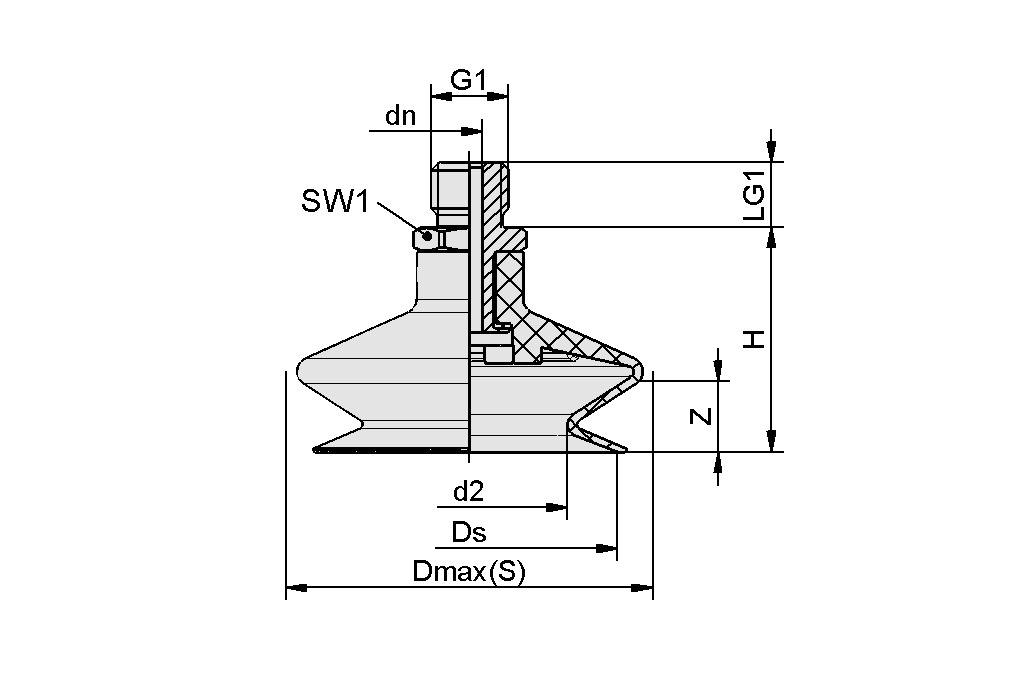

Design Data
Design Data
| Attribute | Value |
|---|---|
| d2 | 2.5 mm |
| Dmax(S) | 5 mm |
| dn | 1 mm |
| Ds | 4 mm |
| G1 | M3-M |
| H | 7.5 mm |
| LG1 | 3 mm |
| SW1 | 5 mm |
| Z (Stroke) | 1.5 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Suction cup material | Nitrile rubber NBR |
| Material hardness [Shore A] | 55 Shore A |
| Size | 4 |
| Number of folds | 1.5 |
| Connection | M3-AG |
| Workpiece radius min. (convex) | 1.5 mm |
| Volume | 0.04 cm³ |
| Suction force (-600mbar) | 0.29 N |
| Pull-off force | 0.5 N |
| Hose inner diameter (recom.) d | 2.7 mm |
| Product family | FSGA |
