Part no.: 10.01.06.04459

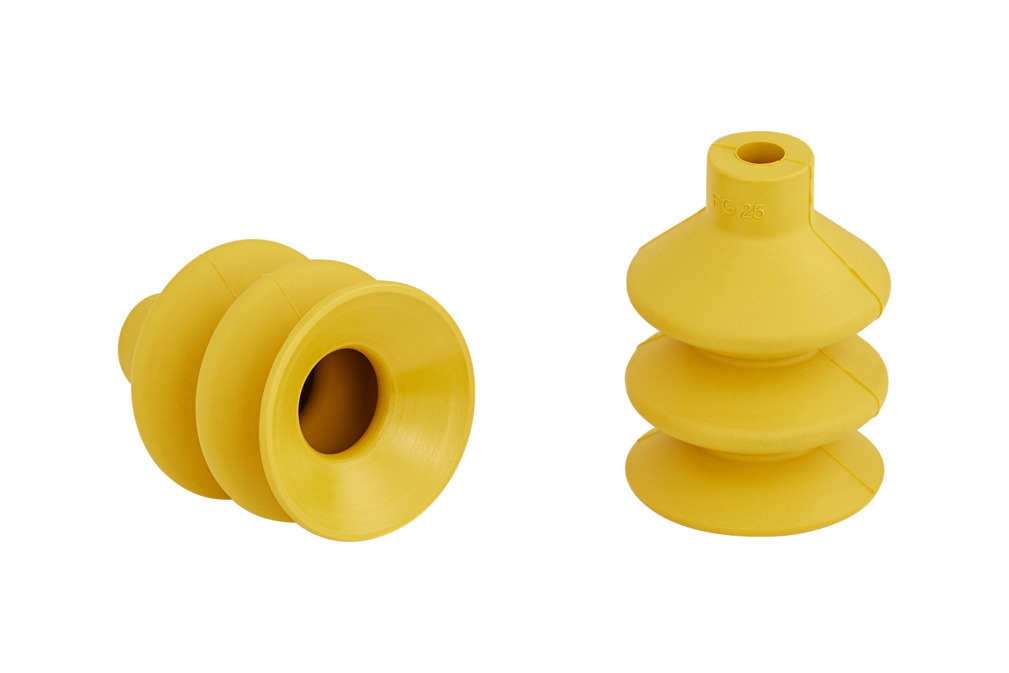

Bellows suction cup (round) for very uneven workpieces
| Size | 25 |
| Suction cup material | Nitrile rubber NBR-ESD |
| Material hardness [Shore A] | 55 (Shore A) |
| Number of folds | 2.5 |
| Attribute | Value |
|---|---|
| d | 4.5 mm |
| d2 | 10 mm |
| D1 | 25 mm |
| Dk | 10 mm |
| Dmax(S) | 26 mm |
| Ds | 23 mm |
| H | 34 mm |
| H2 | 3.8 mm |
| H3 | 9 mm |
| Z (Stroke) | 18 mm |
| Attribute | Value |
|---|---|
| Suction force (-600mbar) | 4.71 N |
| Pull-off force | 19 N |
| Volume | 5.22 cm³ |
| Workpiece radius min. (convex) | 30 mm |
| Size | 25 |
| Number of folds | 2.5 |
| Suction cup material | Nitrile rubber NBR-ESD |
| Material hardness [Shore A] | 55 Shore A |
| Weight | 3.9 g |
| Product family | FG |

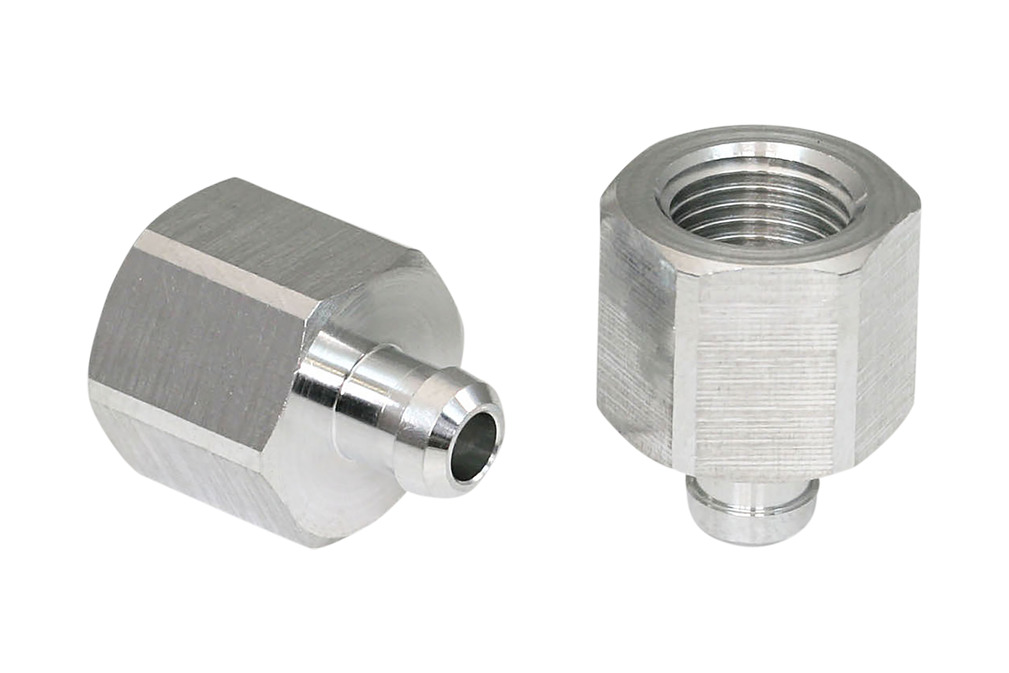

| Thread G1 | G1/8"-F |
| Length L1 | 17.9 (mm) |
| Fitting length | 12 (mm) |
| Nominal diameter dn | 3.5 (mm) |
| Material | Aluminum |
| Thread G1 | G1/8"-M |
| Length L1 | 19.4 (mm) |
| Fitting length | 6 (mm) |
| Nominal diameter dn | 3.5 (mm) |
| Material | Aluminum |
