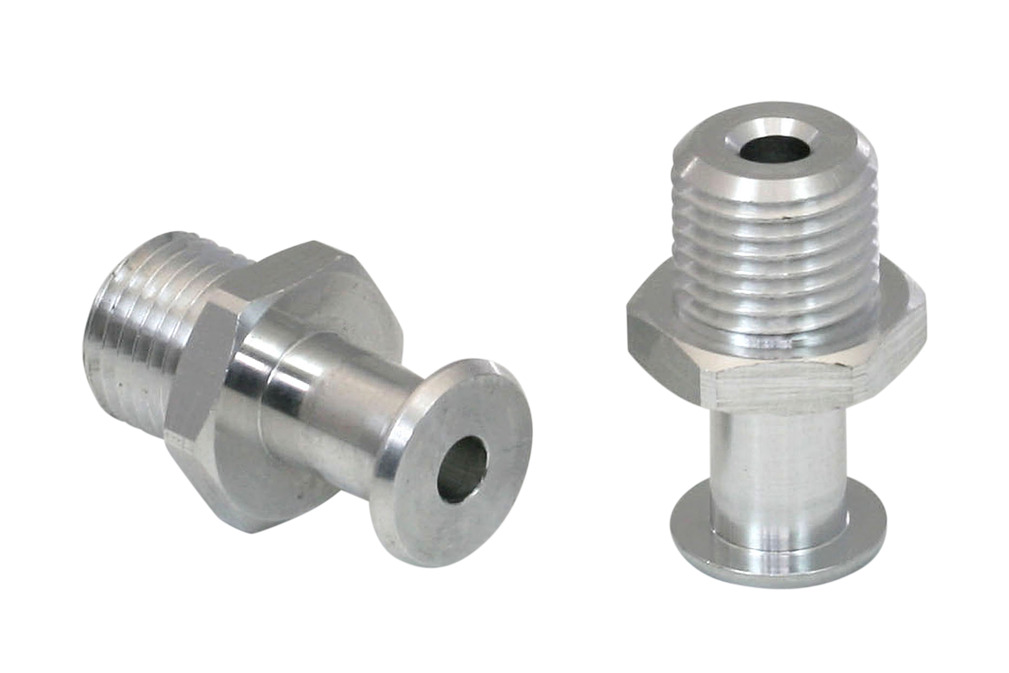

Part no.: 10.01.06.01959
Design Data
Design Data
| Attribute | Value |
|---|---|
| dn | 8.2 mm |
| D | 20 mm |
| D2 | 13.5 mm |
| G1 | G1/4"-M |
| L | 6 mm |
| L1 | 40 mm |
| L2 | 19 mm |
| L3 | 4 mm |
| LG1 | 11 mm |
| SW1 | 21 mm |
| SW2 | 8 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Nipple family | N 019 |
| Material | Aluminum |
| Weight | 14 g |
