Part no.: 10.01.06.00183

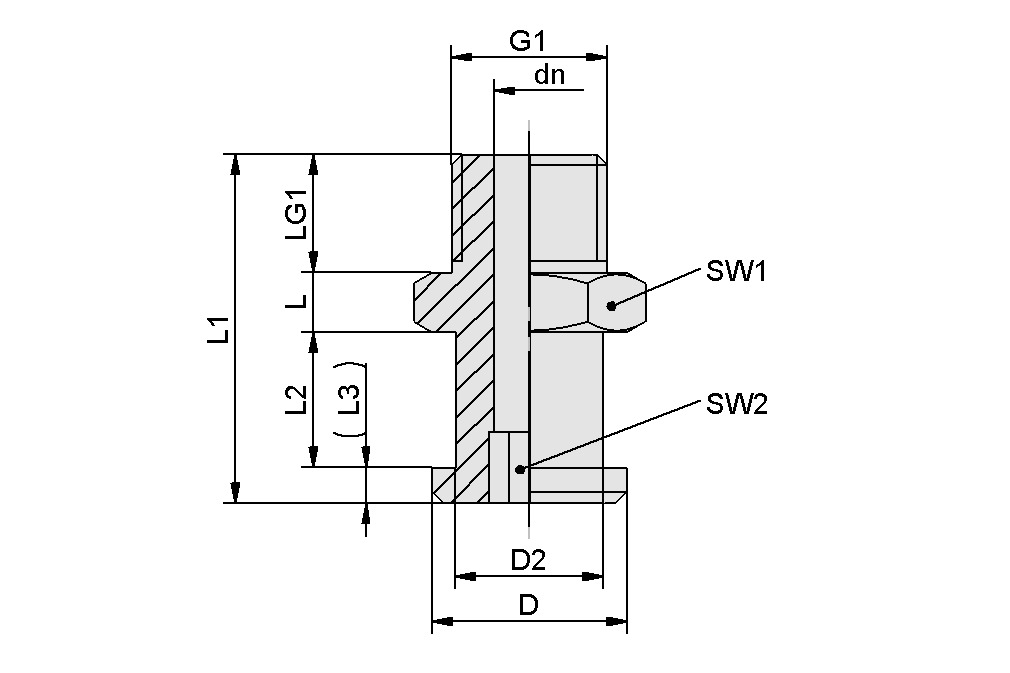

Design Data
Design Data
| Attribute | Value |
|---|---|
| dn | 3.5 mm |
| D | 12.5 mm |
| D2 | 8.5 mm |
| G1 | G1/4"-M |
| L | 5 mm |
| L1 | 28.5 mm |
| L2 | 11.5 mm |
| L3 | 2 mm |
| LG1 | 10 mm |
| SW1 | 17 mm |
| SW2 | 5 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Nipple family | N 013 |
| Material | Aluminum |
| Weight | 8.3 g |
