Part no.: 10.01.06.00503

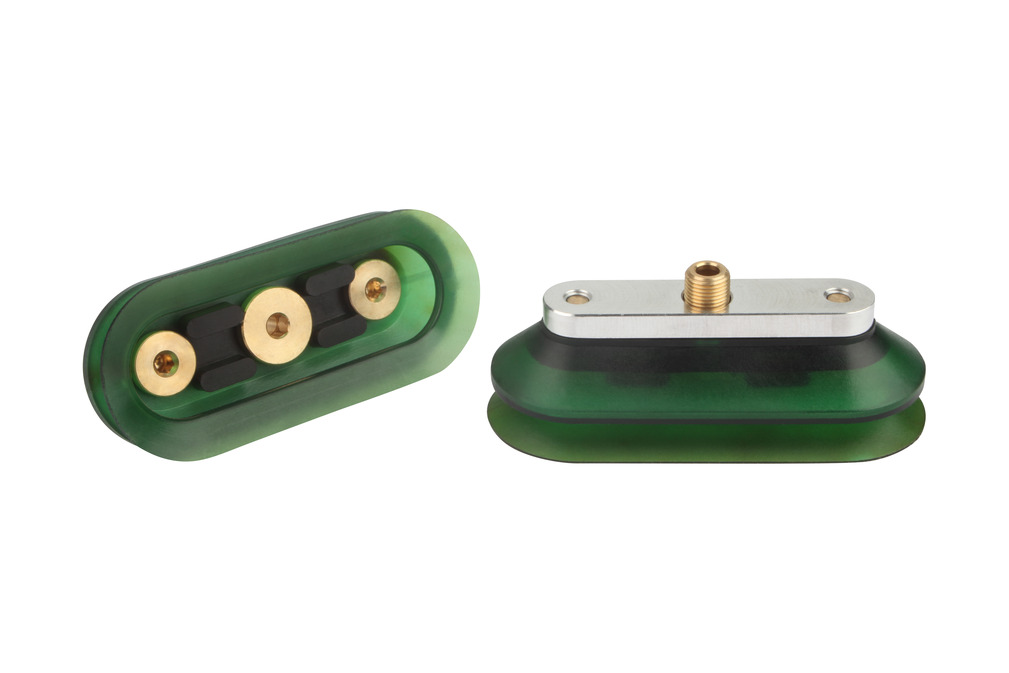

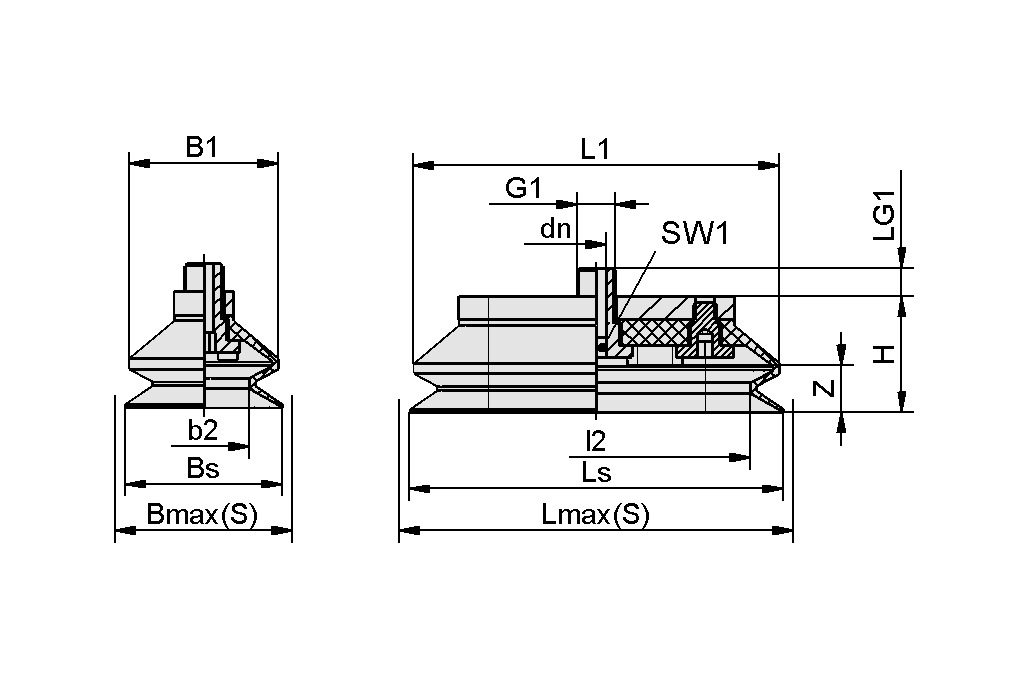

Design Data

Attribute	Value
b2	23 mm
B1	38 mm
Bmax(S)	42.5 mm
Bs	40 mm
dn	5 mm
G1	G1/8"-M
H	29.5 mm
L1	93 mm
l2	78 mm
LG1	8 mm
Lmax.(S)	97 mm
Ls	95 mm
SW1	4 mm
Z (Stroke)	12 mm

Note: Acceptable dimensional tolerances for elastomer parts concerning to DIN ISO 3302-1 M3

Technical Data

Attribute	Value
Suction force (-600mbar)	95 N
Pull-off force	110 N
Volume	38.22 cm³
Workpiece radius min. (convex)	20 mm
Hose inner diameter (recom.) d	9 mm
Nipple family	N 038
Dimension (LxW)	95 x 40
Number of folds	1.5
Suction cup material	Vulkollan VU1
Material hardness [Shore A]	72 Shore A
Weight	125 g
Product family	FSGAO

Note: Suction force: The suction force values are theoretical values at -0.6 bar vacuum and a dry, smooth and even workpiece surface – they are specified without safety factors. Hose inner diameter: The recommended hose diameter refers to a hose length of approx. 2 m
