Product information

Part no.: 10.03.01.00351

Product information

Design Data

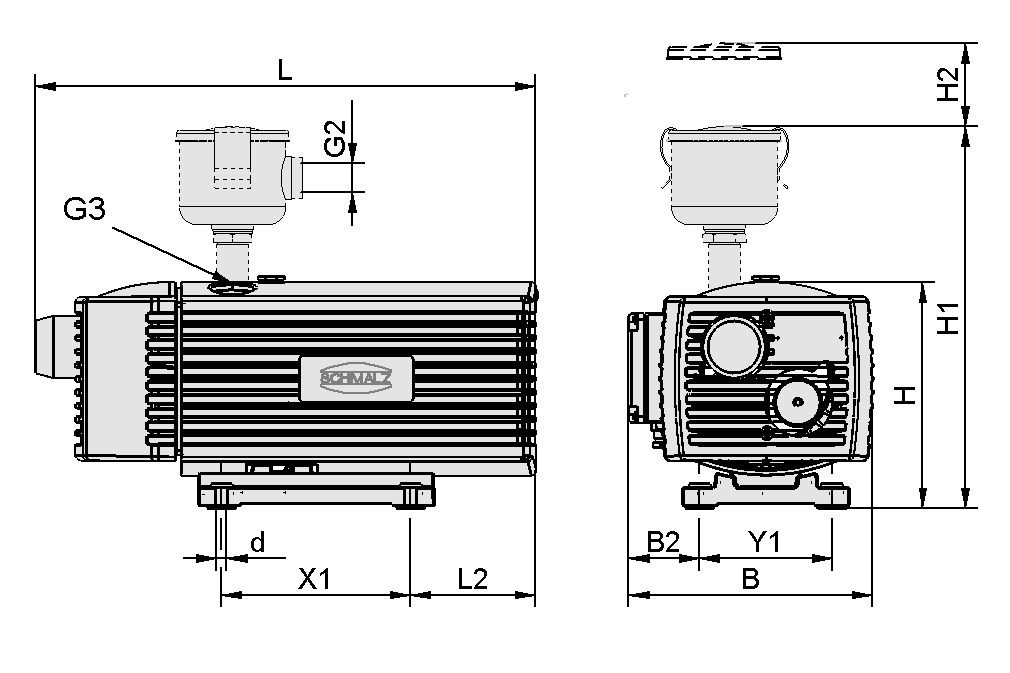

Design image

Attribute	Value
B	270 mm
B2	50 mm
d	7 mm
G3	G3/4"-F
H	292 mm
L	495 mm
L2	96 mm
X1	220 mm
Y1	190 mm

Technical Data

Attribute	Value
Suction rate (60 Hz)	30 m³/h
Voltage at 60 Hz	YY230 / Y460 V ±10 %
Rated power at 60 Hz	0.9 kW
Weight	27.5 kg
Protection type IP	IP 55
Supply voltage	AC3
Product family	EVE-TR-X

Noise level according to DIN EN ISO 3744 (uncertainty factor KpA = 3 dB(A)), interval of 1 m, at medium load, both connection sides piped

Documentation

Spare parts

VST EVE-TR-X-25

VST EVE-TR-X-25 10.03.01.00225 Set of parts subject to wear pump

Utilization design	Pump EVE-TR-X
Size	25
contains	Brush slide / filter

FILT-EINS EVE-TR-X-25/40

FILT-EINS EVE-TR-X-25/40 10.03.01.00230 Filter insert (round)

Utilization design	Pump EVE-TR-X
Size	25/40

Accessories

VOL 50

VOL 50 10.03.03.00118 Vacuum reservoir

Reservoir volume	50 (l)
Height H	235 (mm)
Additional function vacuum reservoir	Gauge, non-return valve, filter

SBB-EVE-24V-DC-ST-VZ-LUE

SBB-EVE-24V-DC-ST-VZ-LUE 10.04.04.00367 Silencer box for reduction of the noise level

Material	Steel
Surface	galvanised
with	Ventilator
Length L	809 (mm)
Width B	385 (mm)
Height H	378 (mm)
