VST EVE-TR-X-2510.03.01.00225Set of parts subject to wear pump
| Utilization design | Pump EVE-TR-X |
| Size | 25 |
| contains | Brush slide / filter |

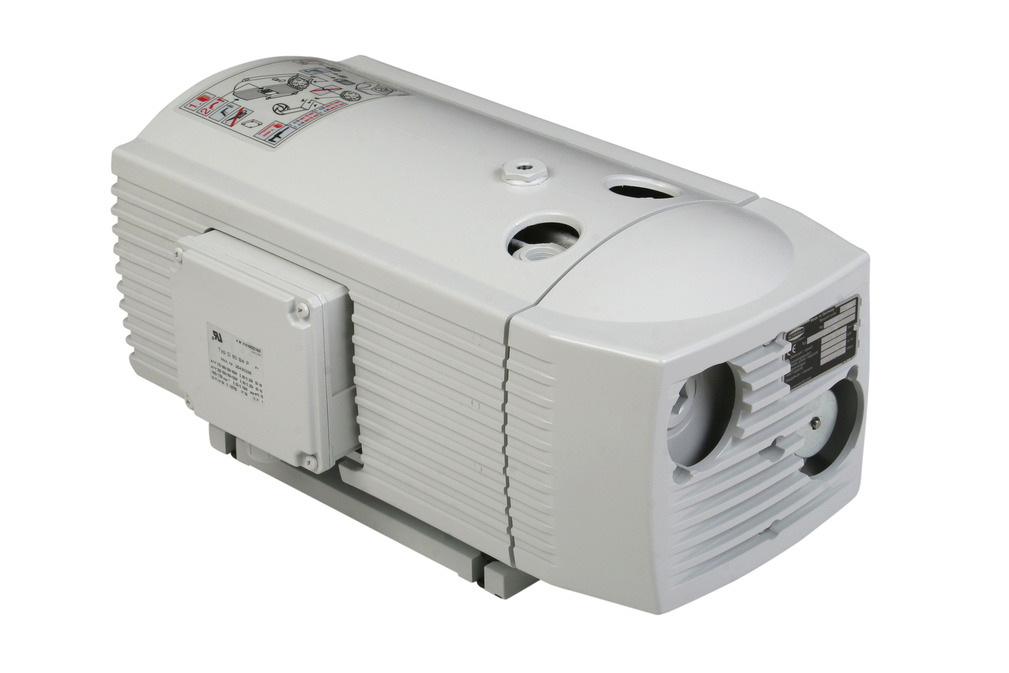

Part no.: 10.03.01.00216
Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 260 mm |
| B2 | 40 mm |
| d | 7 mm |
| G2 | G3/4"-F |
| G3 | G3/4"-F |
| H | 290 mm |
| H1 | 380 mm |
| H2 | 70 mm |
| L | 505 mm |
| L2 | 96 mm |
| X1 | 220 mm |
| Y1 | 190 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Suction rate (50 Hz) | 25 m³/h |
| Suction rate (60 Hz) | 30 m³/h |
| Voltage at 50 Hz | 190 - 242 V / 342 - 440 V AC3 |
| Voltage at 60 Hz | 190 - 265 V / 342 - 500 V AC3 |
| Rated power at 50 Hz | 0.75 kW |
| Rated power at 60 Hz | 0.9 kW |
| Sound pressure level at 50 Hz | 62 dB(A) |
| Weight | 26.5 kg |
| Protection type IP | IP 54 |
| Supply voltage | AC3 |
| Product family | EVE-TR-X |
Documentation
Documentation
Spare parts
Accessories
SBB-EVE-24V-DC-ST-VZ-LUE10.04.04.00367Silencer box for reduction of the
noise level
| Material | Steel |
| Surface | galvanised |
| with | Ventilator |
| Length L | 809 (mm) |
| Width B | 385 (mm) |
| Height H | 378 (mm) |
