Part no.: 10.03.01.00213

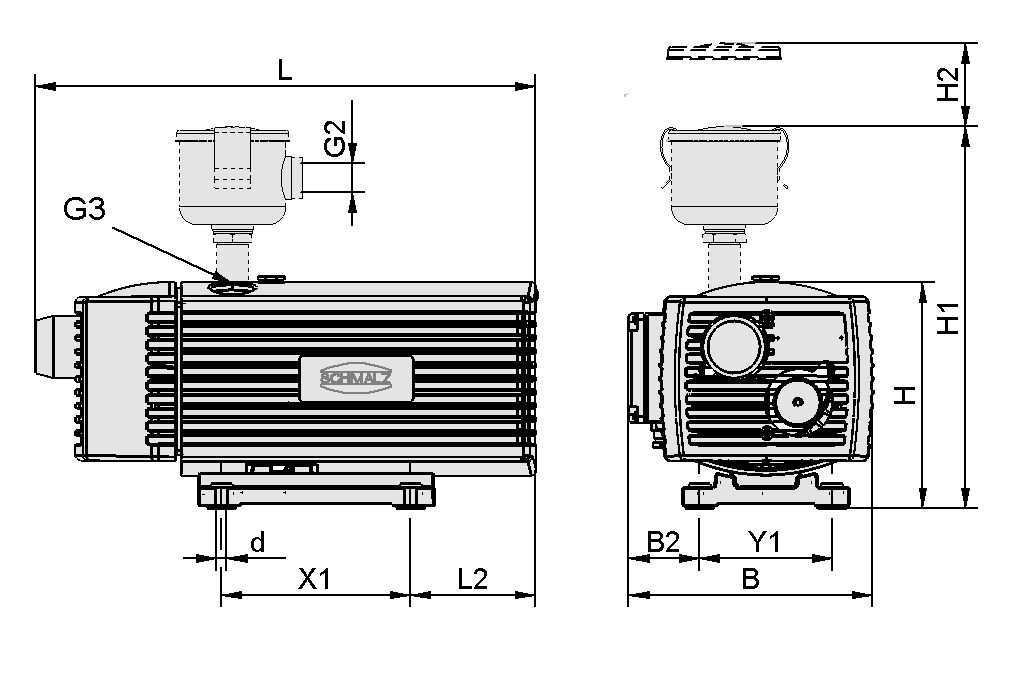

| Attribute | Value |
|---|---|
| B | 231 mm |
| B2 | 66 mm |
| d | 7 mm |
| G2 | G3/4"-F |
| G3 | G1/2"-F |
| H | 205 mm |
| H1 | 345 mm |
| H2 | 70 mm |
| L | 452 mm |
| L2 | 73 mm |
| X1 | 202 mm |
| Y1 | 125 mm |
| Attribute | Value |
|---|---|
| Suction rate (50 Hz) | 16 m³/h |
| Suction rate (60 Hz) | 19 m³/h |
| Voltage at 50 Hz | 175 - 260 / 300 - 450 V AC3 |
| Voltage at 60 Hz | 202-300/350-520V AC3 |
| Rated power at 50 Hz | 0.55 kW |
| Rated power at 60 Hz | 0.7 kW |
| Sound pressure level at 50 Hz | 61 dB(A) |
| Weight | 23 kg |
| Protection type IP | IP 54 |
| Supply voltage | AC3 |
| Product family | EVE-TR-X |
| Filter pore size | 3 (µm) |
| Outside diameter D | 65 (mm) |
| Length L | 69.5 (mm) |
| Filter material | Paper |
| Utilization design | Dust filter STF |
| Size | 3/4-IG |
| Utilization design | Pump EVE-TR-X |
| Size | 16 |
| contains | Brush slide / filter |
