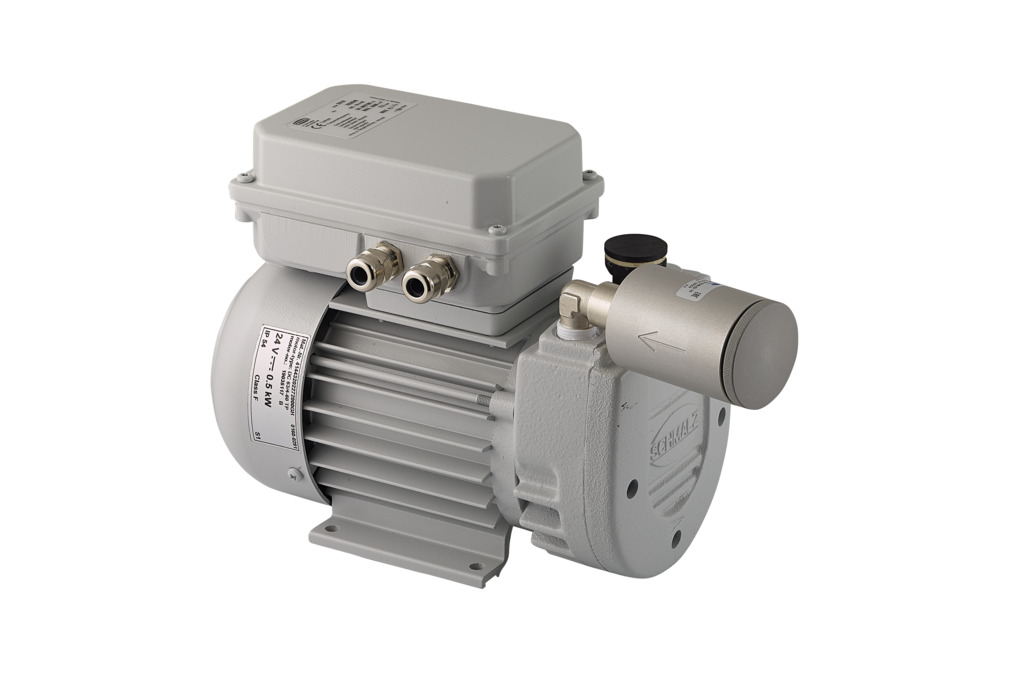

EVE-TR 8 24V-DC F
Part no.: 10.03.01.00401
Oil-free pump with constant suction rate, robust, requires little maintenance
| Current type | Direct current 24 V |
| Sound pressure level at 50 Hz | 60.5 (dB(A)) |
| with | Filter |
| Weight | 12 (kg) |

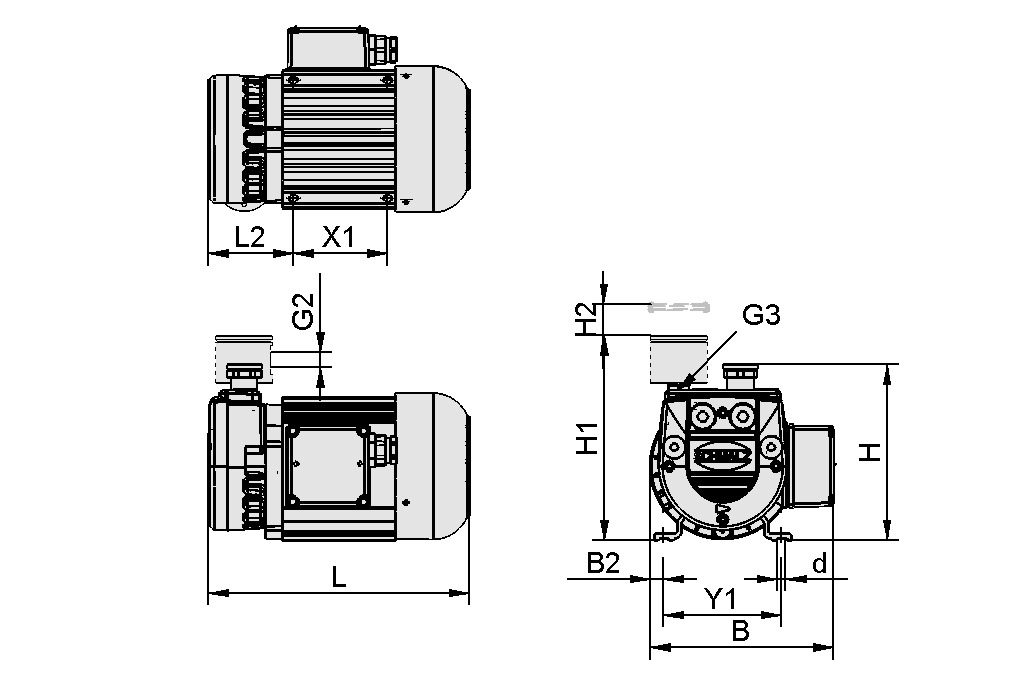

Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 123 mm |
| B1 | 138 mm |
| B2 | 11.5 mm |
| d | 8.4 mm |
| G2 | G3/8"-F |
| G3 | G3/8"-F |
| H | 196 mm |
| L | 231 mm |
| L1 | 302 mm |
| L2 | 80 mm |
| X1 | 80 mm |
| Y1 | 100 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Suction rate at DC | 9.7 m³/h |
| Voltage | 24 – 48V DC |
| Rated power | 500 W |
| Supply voltage | 24V-DC |
| Current type | Direct current 24 V |
| Sound pressure level at 50 Hz | 60.5 dB(A) |
| Weight | 12 kg |
| Product family | EVE-TR |
Performance Data
Performance Data
Documentation
Documentation
Spare parts
FILT-EINS 50 28x51 PAP VF-3/810.07.01.00014Filter insert (round)
| Filter pore size | 50 (µm) |
| Outside diameter D | 27.5 (mm) |
| Length L | 50.5 (mm) |
| Filter material | Paper |
| Utilization design | Filter VF |
| Size | 3/8 |
Accessories
VBV -850...0 G3/8-AG EVE 4-810.03.01.00107Vacuum valve for limiting
the maximum vacuum pressure
| Outside diameter D | 23 (mm) |
| Max. vacuum | -850 (mbar) |
| Thread G1 | G3/8"-M |
| Length L | 45 (mm) |
| Utilization design | Pump EVE |
| Size | 4-8 |
