Part no.: 10.03.01.00833

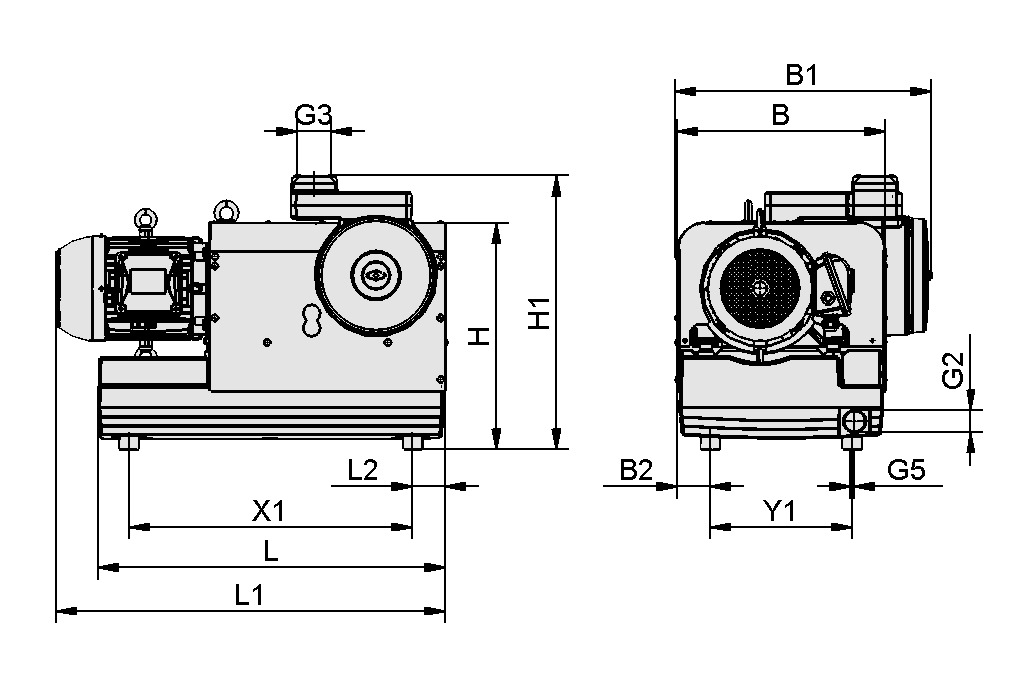

| Attribute | Value |
|---|---|
| B | 440 mm |
| B1 | 537 mm |
| B2 | 70 mm |
| G2 | G1-1/2"-F |
| G3 | G2-1/2"-F |
| G5 | M10-F |
| H | 478 mm |
| L | 735 mm |
| H1 | 579.5 mm |
| L2 | 70 mm |
| L1 | 833 mm |
| Y1 | 300 mm |
| X1 | 600 mm |
| Attribute | Value |
|---|---|
| Vacuum (60 Hz) | 900 mbar |
| Suction rate (60 Hz) | 180 m³/h |
| Voltage at 50 Hz | 400 - 480 V AC3 |
| Voltage at 60 Hz | 400 - 480 V AC3 |
| Rated power at 60 Hz | 4 kW |
| Supply voltage | AC3 |
| Current type | Three phase A.C. |
| Weight | 208 kg |
| Protection type IP | IP 55 |
| Outside diameter D | 197 (mm) |
| Length L | 102 (mm) |
| Filter material | Paper |
| Utilization design | Pump EVE-KL |
| Outside diameter D | 197 (mm) |
| Length L | 102 (mm) |
| Filter material | Polyester |
| Utilization design | Pump EVE-KL |
