- EFFICIENT
Part no.: 10.04.01.00140

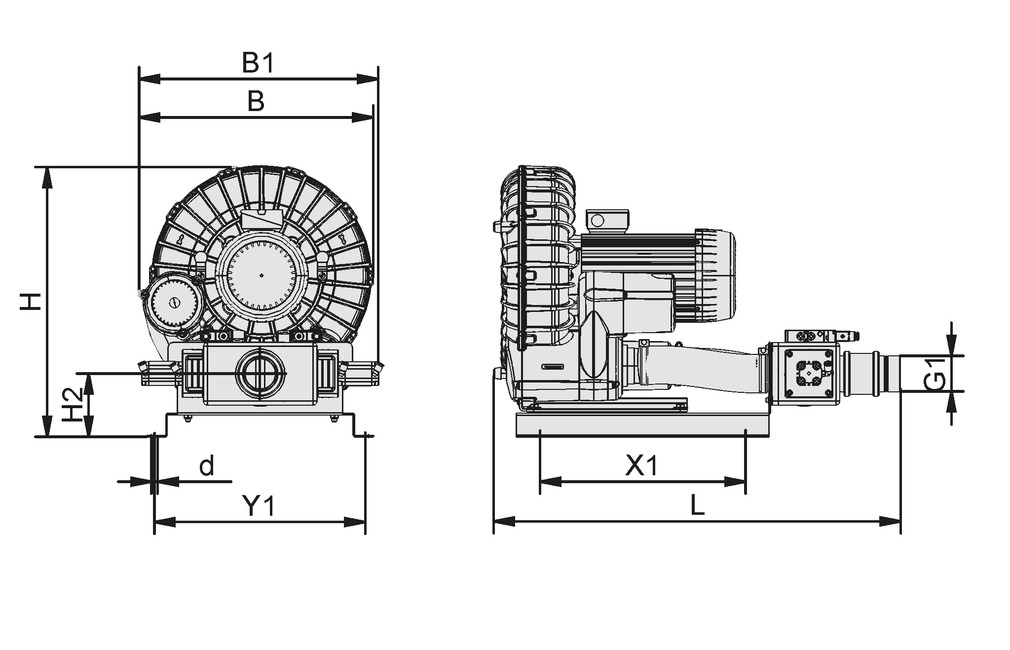

Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 452 mm |
| B1 | 495 mm |
| d | 13 mm |
| G1 | G2"-M |
| H | 504 mm |
| H2 | 134 mm |
| L | 799 mm |
| X1 | 435 mm |
| Y1 | 446 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Suction rate (50 Hz) | 195 m³/h |
| Max. vacuum | 440 mbar |
| Rated power at 50 Hz | 3 kW |
| Protection type IP | IP 55 |
| Weight | 89 kg |
| Voltage at 50 Hz | D230 V / Y400 V ±10 % |
| Voltage at 60 Hz | D265 V / Y460 V ±10 % |
| Approval | UL/CSA |
| Product family | SB-ER |
