SD R4-AG 205x538 SGBL10.04.04.00164Silencer for vacuum generators
| Utilization design | Blower |
| Thread G1 | R4"-M |
| Outside diameter D | 205 (mm) |
| Length L | 538 (mm) |
- EFFICIENT

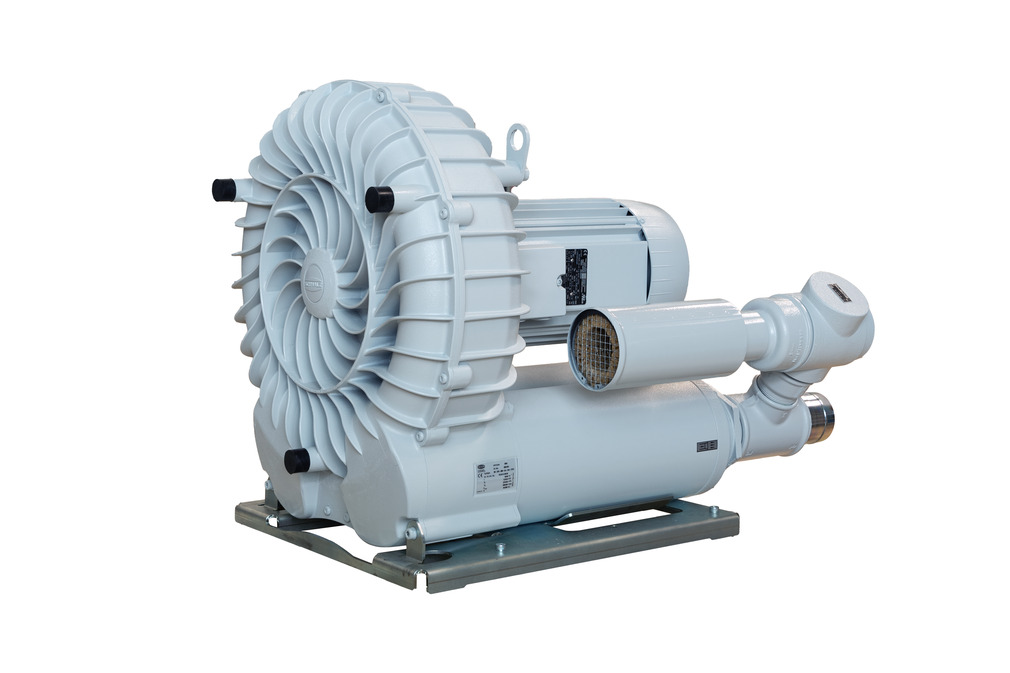

Part no.: 10.04.01.00194
Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 496 mm |
| B1 | 545 mm |
| D2 | 76 mm |
| G1 | G4"-F |
| G5 | M8-F |
| H | 596 mm |
| L | 583 mm |
| L1 | 817 mm |
| X1 | 350 mm |
| Y1 | 400 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Suction rate (50 Hz) | 375 m³/h |
| Suction rate (50 Hz) | 6,249.9 l/min |
| Suction rate (60 Hz) | 435 m³/h |
| Vacuum (50 Hz) | 390 mbar |
| Vacuum (60 Hz) | 340 mbar |
| Protection type IP | IP 55 |
| Rated power at 50 Hz | 5.5 kW |
| Rated power at 60 Hz | 6.6 kW |
| Voltage at 50 Hz | D400 V ±10 % (without IE3) |
| Voltage at 60 Hz | D460 V ±10 % |
| Sound pressure level at 50 Hz | 68 dB(A) |
| Sound pressure level at 60 Hz | 69 dB(A) |
| Weight | 89 kg |
| Version design | IE3-TYP1 |
| Approval | UL/CSA |
| Version | IE3:EU/CN/IND |
| Product family | SB |
Documentation
Documentation
Accessories
STF 75 P 8.0 SSD10.07.01.00263Dust filter
| Connection | Ø75mm |
| Shape | Piclon housing |
| Nominal flow rate | 480 (m³/h) |
| Filter pore size | 3 (µm) |
| Additional equipment | Hose clamps SSD |
FILT-EINS 3 159x376 STF-Picl-810.07.01.00079Filter insert (round)
| Filter pore size | 3 (µm) |
| Outside diameter D | 159.2 (mm) |
| Length L | 376 (mm) |
| Utilization design | Dust filter STF |
| Size | Picl-8 |
| Type | 480m³/h |
