SD R4-AG 205x538 SGBL10.04.04.00164Silencer for vacuum generators
| Utilization design | Blower |
| Thread G1 | R4"-M |
| Outside diameter D | 205 (mm) |
| Length L | 538 (mm) |
- EFFICIENT

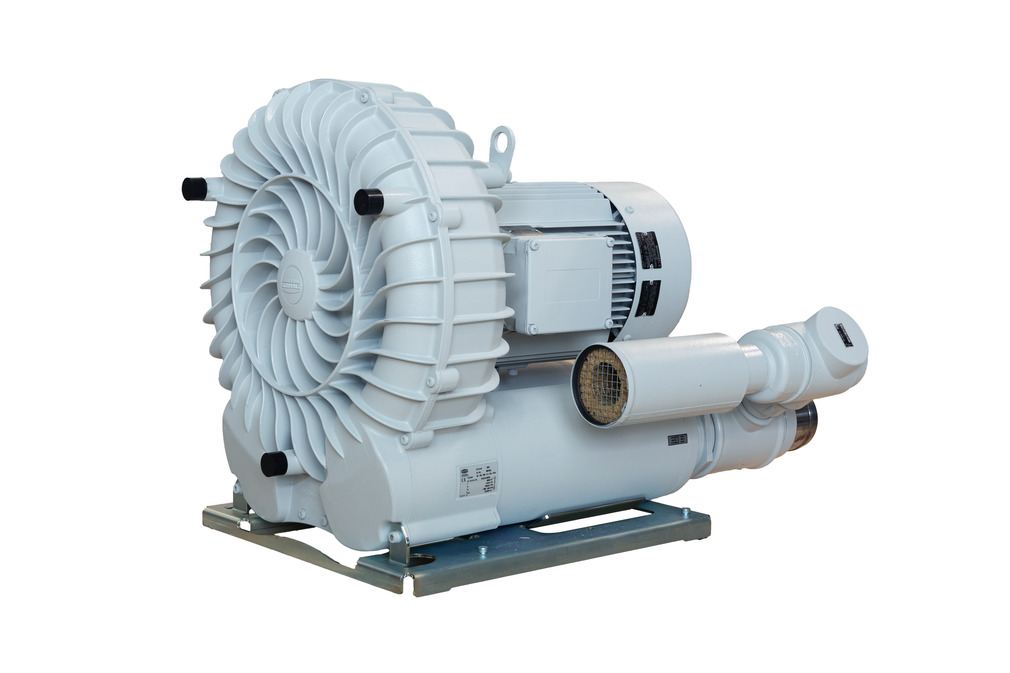

Part no.: 10.04.01.00182
Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 496 mm |
| B1 | 591 mm |
| D2 | 100 mm |
| G1 | G4"-F |
| G5 | M8-F |
| H | 596 mm |
| L | 634 mm |
| L1 | 867 mm |
| X1 | 350 mm |
| Y1 | 400 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Suction rate (50 Hz) | 765 m³/h |
| Suction rate (50 Hz) | 12,749.9 l/min |
| Suction rate (60 Hz) | 915 m³/h |
| Vacuum (50 Hz) | 280 mbar |
| Vacuum (60 Hz) | 260 mbar |
| Protection type IP | IP 55 |
| Rated power at 50 Hz | 7.5 kW |
| Rated power at 60 Hz | 9 kW |
| Voltage at 60 Hz | 400 / 460 V AC |
| Sound pressure level at 50 Hz | 69 dB(A) |
| Sound pressure level at 60 Hz | 74 dB(A) |
| Weight | 113 kg |
| Version design | IE3-TYP1 |
| Approval | UL/CSA |
| Version | IE3:EU/CN/IND |
| Product family | SB |
Documentation
Documentation
Accessories
STF 100 P 15.0 SSD10.07.01.00400Dust filter
| Connection | Ø100mm |
| Shape | Piclon housing |
| Nominal flow rate | 900 (m³/h) |
| Filter pore size | 3 (µm) |
| Additional equipment | Hose clamps SSD |
FILT-EINS 220x393 PAP STF-Picl-1510.07.01.00362Filter insert (round)
| Outside diameter D | 220 (mm) |
| Length L | 393 (mm) |
| Filter material | Paper |
| Utilization design | Dust filter STF |
| Size | Picl-15 |
| Type | 900m³/h |
