Part no.: 10.04.01.00096

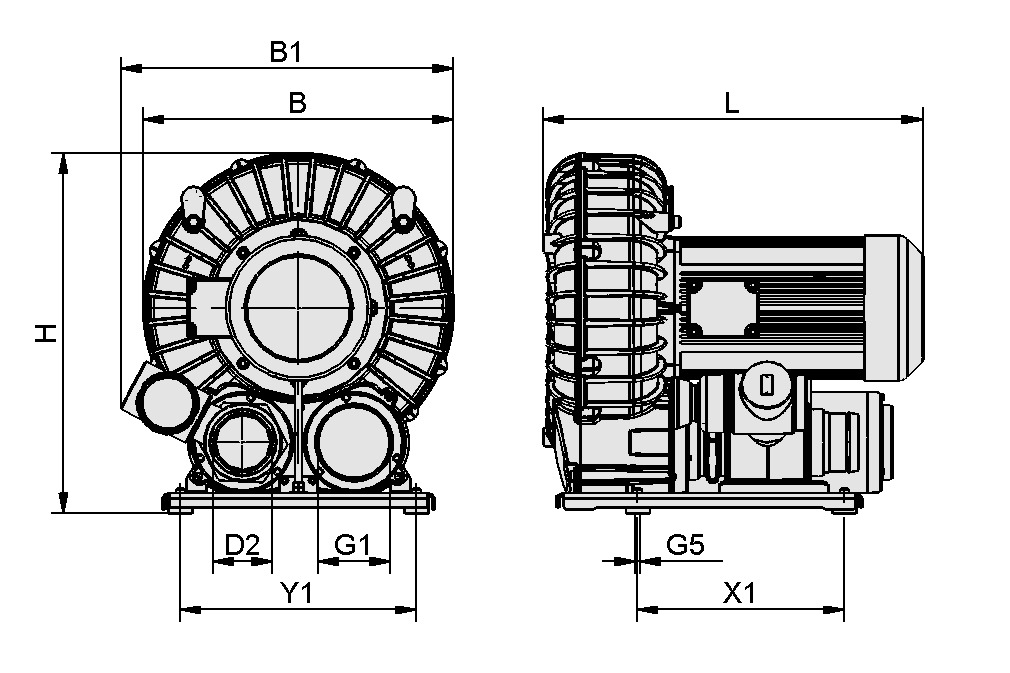

| Attribute | Value |
|---|---|
| B | 496 mm |
| B1 | 536 mm |
| D2 | 76 mm |
| G1 | G4"-F |
| G5 | M8-F |
| H | 596 mm |
| L | 562 mm |
| X1 | 350 mm |
| Y1 | 400 mm |
| Attribute | Value |
|---|---|
| Suction rate (50 Hz) | 375 m³/h |
| Suction rate (50 Hz) | 6,249.9 l/min |
| Suction rate (60 Hz) | 435 m³/h |
| Vacuum (50 Hz) | 390 mbar |
| Vacuum (60 Hz) | 340 mbar |
| Protection type IP | IP 55 |
| Rated power at 50 Hz | 5.5 kW |
| Rated power at 60 Hz | 6.6 kW |
| Voltage at 50 Hz | D400 V ±10 % |
| Voltage at 60 Hz | D460 V ±10 % |
| Sound pressure level at 50 Hz | 70 dB(A) |
| Sound pressure level at 60 Hz | 74 dB(A) |
| Weight | 89 kg |
| Version design | IE3-TYP1 |
| Approval | UL/CSA |
| Version | IE3:EU/CN/IND |
| Product family | SB |
| Utilization design | Blower SB |
| Voltage DC | 230 V - AC |
| Material | Steel |
| Thread G1 | G2-1/2"-M |
| Length L | 1055 (mm) |
| Width B | 727 (mm) |
| Height H | 703 (mm) |
| Utilization design | Blower SB |
| Voltage DC | 24 V - DC |
| Material | Steel |
| Thread G1 | G2-1/2"-M |
| Length L | 1055 (mm) |
| Width B | 727 (mm) |
| Height H | 703 (mm) |
| Connection | Ø75mm |
| Shape | Piclon housing |
| Nominal flow rate | 480 (m³/h) |
| Filter pore size | 3 (µm) |
| Additional equipment | Hose clamps SSD |
| Filter pore size | 3 (µm) |
| Outside diameter D | 159.2 (mm) |
| Length L | 376 (mm) |
| Utilization design | Dust filter STF |
| Size | Picl-8 |
| Type | 480m³/h |
| Utilization design | Blower |
| Thread G1 | G2"-F |
| Outside diameter D | 102 (mm) |
| Length L | 211 (mm) |
| Utilization design | Blower |
| Thread G1 | R4"-M |
| Outside diameter D | 205 (mm) |
| Length L | 538 (mm) |
| Utilization design | Blower SB |
| Thread G1 | G2-1/2"-M |
| Outside diameter D | 130 (mm) |
| Length L | 651 (mm) |
