Part no.: 10.03.01.00648

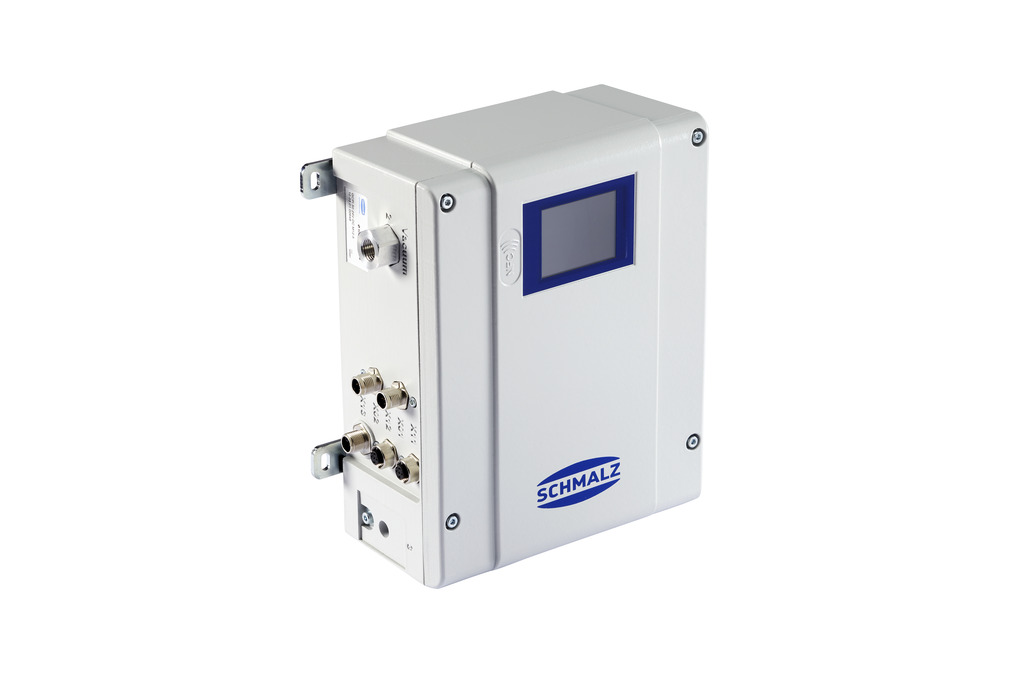

Electrical vacuum generation with integrated control electronics for vacuum automation
| Size | 50 |
| Voltage | 24V - DC |
| Electrical connection | 5xConnect M12, 5x5 pol |
| Suction rate (max.) | 46 (l/min) |
| Max. vacuum | 800 (mbar) |
| 67 (dB(A)) | |
| Protection type IP | IP 54 |
| Weight | 3220 (g) |
| Operating temperature | 0 ... 45 °C |
| Attribute | Value |
|---|---|

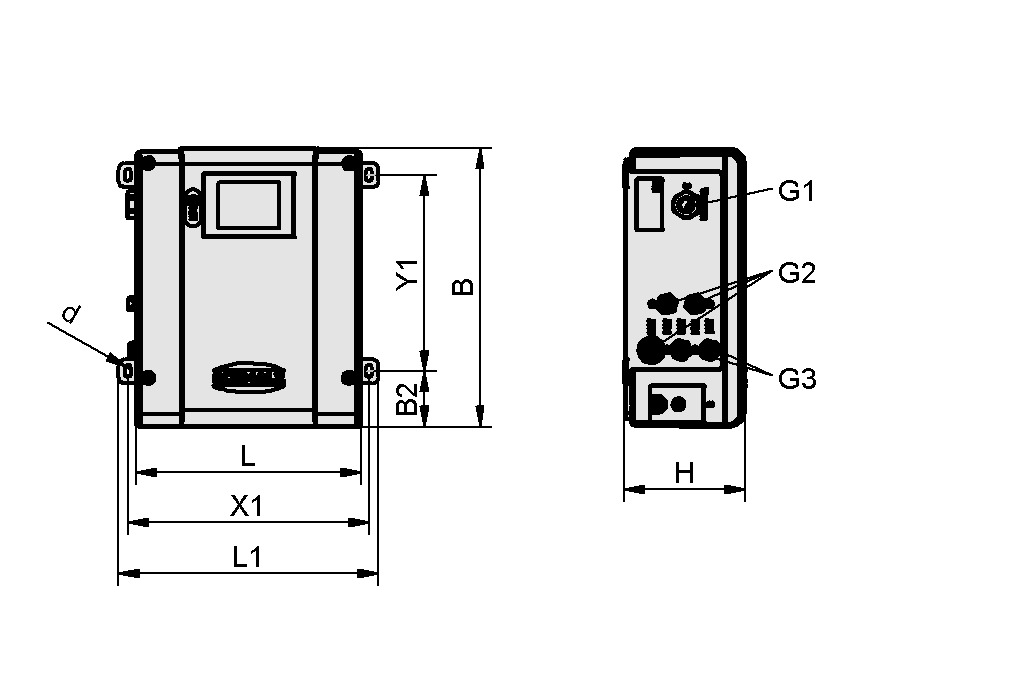

| B | 236 mm |
| B2 | 47 mm |
| d | 6.6 mm |
| G1 | G1/4"-F |
| G2 | M12x1-M |
| G3 | M12x1-F |
| H | 102 mm |
| L | 190 mm |
| L1 | 220 mm |
| X1 | 204 mm |
| Y1 | 166 mm |
| Attribute | Value |
|---|---|
| Suction rate (max.) | 46 l/min |
| Voltage DC | 24 V - DC |
| Electrical connection | 5xConnect M12, 5x5 pol |
| Operating temperature | 0 ... 45 °C |
| Weight | 3,220 g |
The matching software for this product is available in this section.
| Documentation | Language |
|---|---|
| English | |
| English |
| Outside diameter D | 14 (mm) |
| Length L | 2 (mm) |
| Material | Austenitic stainless steel |
| Mesh size | 0.415 (mm) |
| Wire diameter | 0.22 (mm) |
| Thread G1 | G3/8"-M |
| Outside diameter D | 20 (mm) |
| Length L | 56 (mm) |
| Utilization design | Basic ejector SEG |
| Length L | 94 (mm) |
| Width B | 31 (mm) |
| Height H | 46.15 (mm) |
| Utilization design | Compact Pump GCPi |
| Rated current | 16 (A) |
| Voltage | 63V-DC |
| Protection type IP | IP 68 |
| Electrical connection | Fem connect M12, 5 pol |
| Cable length Lk | 5 (m) |
| Connection 2 | Open cable end |
| Number of poles | 5 |
| Number of wires | 5 |
| Wire area | 2.5 (cm²) |
| Material hose | PUR cable |
| Color | Grey |
| Electrical connection | Fem connect M12, 5 pol |
| Cable length | 5000 (mm) |
| Connection 2 | Cable, 5-pole |
| Material hose | PUR cable |
| Rated current | 4 (A) |
| Electrical connection | Fem connect M12, 5 pol |
| Cable length Lk | 5 (m) |
| Connection 2 | Plug M12, 5-pole |
| Number of poles | 5 |
| Number of wires | 5 |
| Wire area | 0.75 (cm²) |
| Material hose | PU |
| Color | black |
| Rated power | 96 (W) |
| Voltage | 24V - DC |
| Primary voltage | 100 - 240 V AC |
| Secondary voltage | 24 V - DC |
| Length L | 182 (mm) |
| Width B | 180 (mm) |
| Height H | 90 (mm) |
| Function | regulated |
| Connection | G1/4"-F |
| Shape | short filter insert |
| Nominal flow rate | 110 (l/min) |
| Nominal flow rate | 6.6 (m³/h) |
| Filter pore size | 80 (µm) |
| contains | Rubber buffer |
| Utilization design | Compact Pump GCPi |
