Part no.: 10.08.03.00313

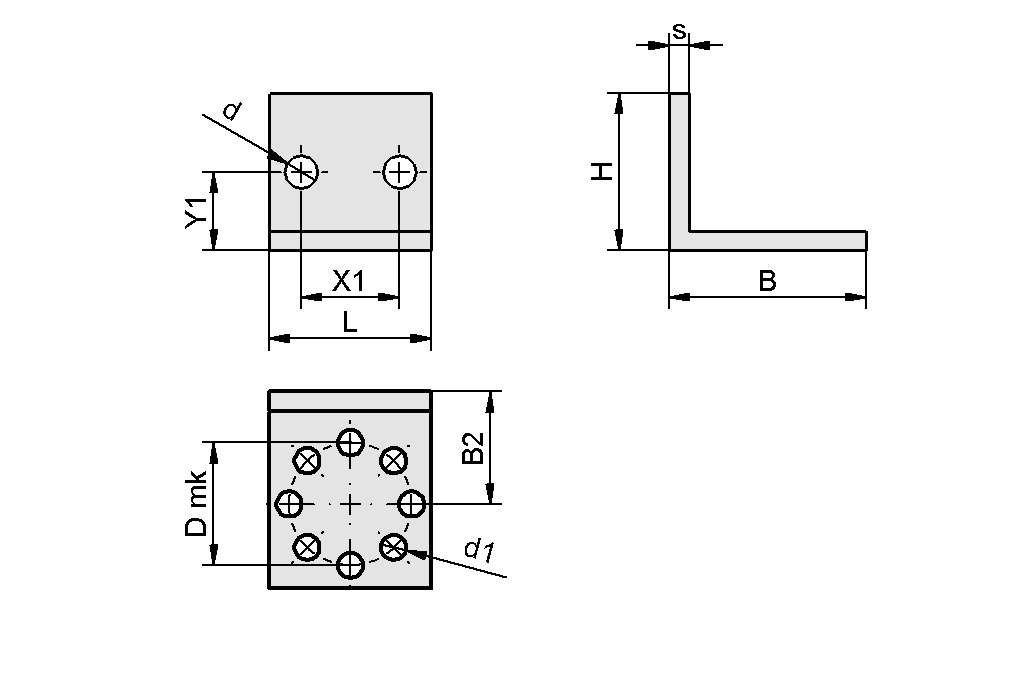

Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 30 mm |
| B2 | 12.5 mm |
| d | 6.3 mm |
| d1 | 4.5 mm |
| Dmk | 17 mm |
| H | 40 mm |
| H2 | 20 mm |
| L | 25.5 mm |
| S | 4 mm |
| X1 | 15.4 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Material | Aluminum |
| Weight | 26.9 g |
