Part no.: 10.05.01.00366

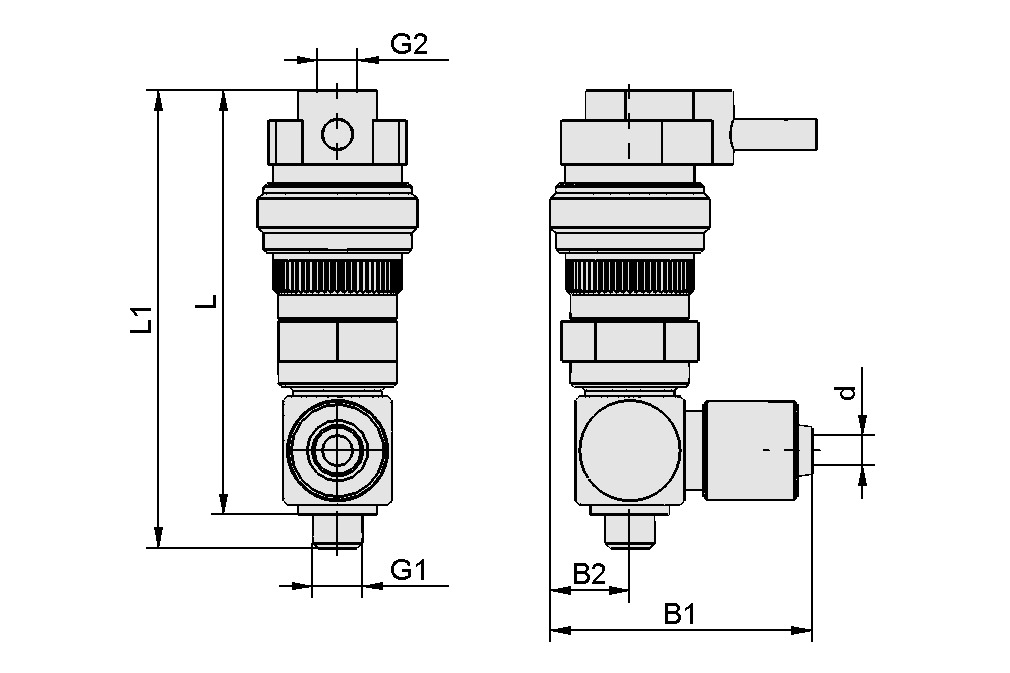

Design Data
Design Data
| Attribute | Value |
|---|---|
| B1 | 36 mm |
| B2 | 12.8 mm |
| d | 6 mm |
| G1 | G1/4"-M |
| G2 | G1/8"-F |
| L | 64.5 mm |
| L1 | 72 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Pressure range (operating pressure) [bar] | 2.0 ... 8.0 bar |
| Operating temperature | °C |
| Weight | 0.15 kg |
| Power consumption DC | 5.4 W |
| Nominal flow rate | 10.5 m³/h |
| Voltage | 24V - DC |
| Control valve | Normally closed |
