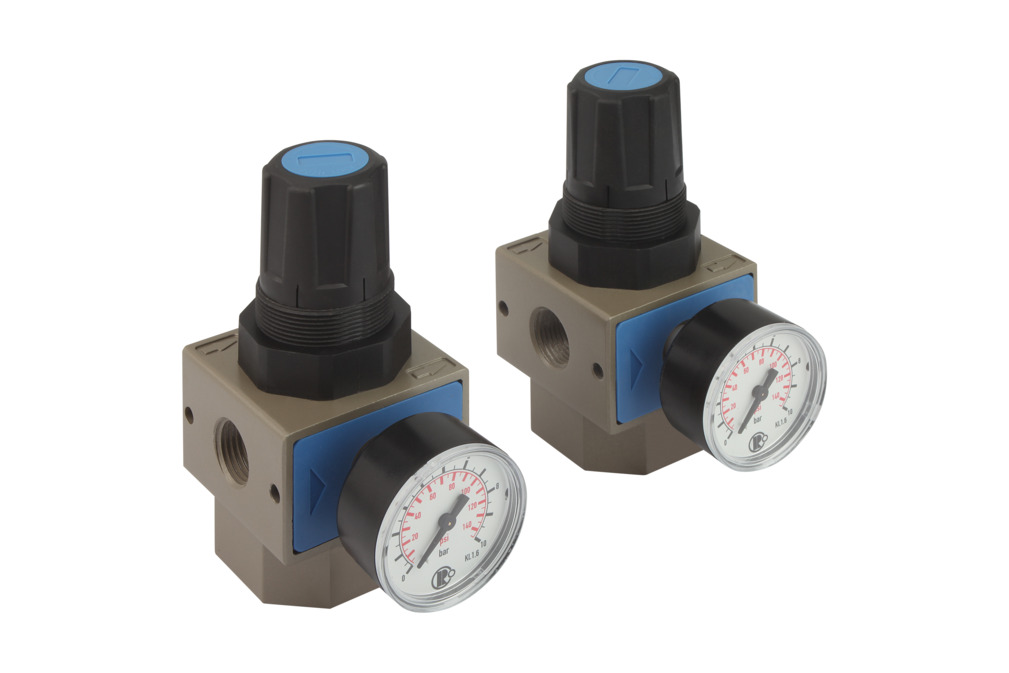

Part no.: 10.07.11.00025
Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 64 mm |
| B1 | 96 mm |
| B2 | 32 mm |
| G1 | G1/2"-F |
| H | 135.5 mm |
| H2 | 43.5 mm |
| L | 64 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Work area [bar] | 0,5 ... 10,0 |
| Flow rate max. pressure | 1,300 l/min |
| Flow rate max. | 78 m³/h |
| Operating temperature | -10 ... 60 °C |
| Weight | 0.74 kg |
| Product family | DM |
