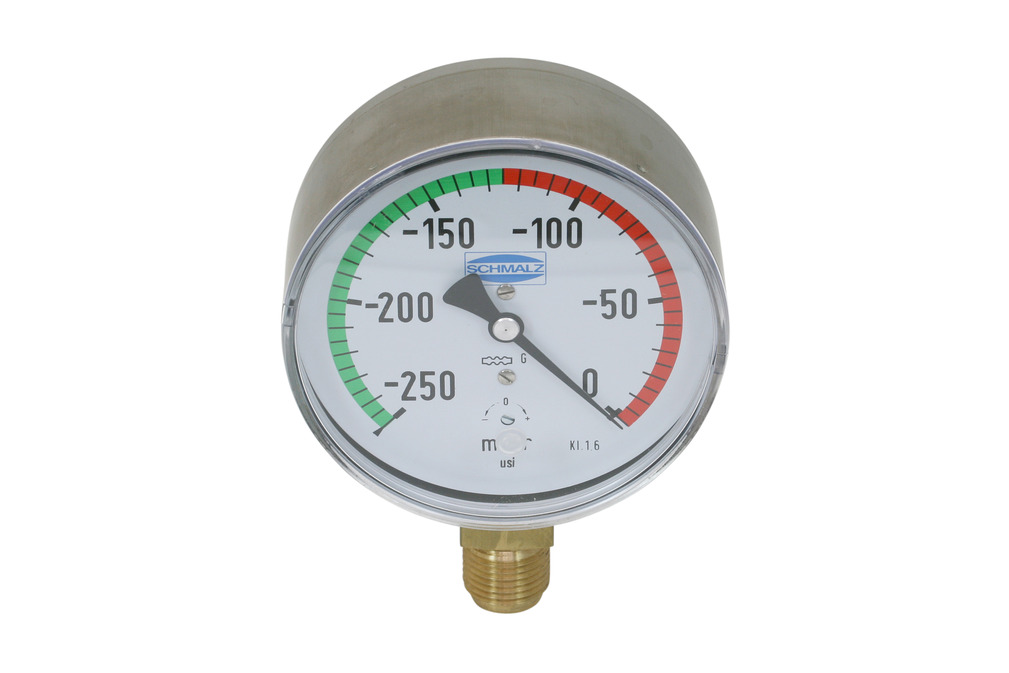

Part no.: 10.07.02.00001
Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 87 mm |
| D | 100 mm |
| G1 | G1/2"-M |
| H | 112 mm |
| H1 | 142 mm |
| LG1 | 25 mm |
| SW1 | 22 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Shape manometers | Connection at bottom |
| Measuring range [bar] | -0,25 ... 0,00 bar |
| Operating pressure | -0,25...0 bar |
| Weight | 526 g |
| Product family | VAM |
