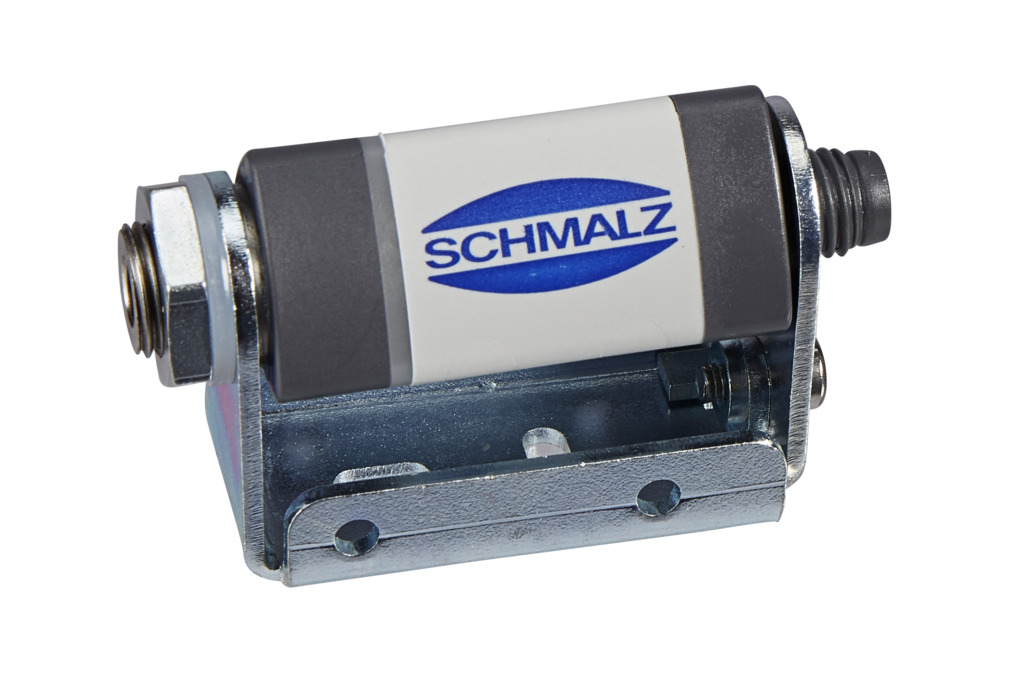

Part no.: 10.06.02.00666
Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 21 mm |
| d1 | 3.2 mm |
| d2 | 3.2 mm |
| H | 22 mm |
| H1 | 30 mm |
| H2 | 5.5 mm |
| L | 39 mm |
| L1 | 44 mm |
| L2 | 7.25 mm |
| L3 | 15 mm |
| S | 1.5 mm |
| X1 | 22 mm |
| X2 | 12.5 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Measuring range | bar |
