HTR M12x1-IG SWGm10.01.30.00119Holder system
| Width B | 14 (mm) |
| Length L | 30.9 (mm) |
| Thread G1 | M12x1-F |
| Utilization design | Wafer gripper |
Part no.: 10.01.30.00477
Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 55 mm |
| d2 | 14 mm |
| G2 | M4-F |
| H | 26.9 mm |
| H2 | 10.5 mm |
| L | 100 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Holding force | N |
| Suction rate | l/min |
| Air consumption | l/min |
| Pressure range (operating pressure) [bar] | bar |
| Operating temperature | 5 ... 60 °C |
| Weight | 120 g |
| Product family | STGG |
Documentation
Documentation
Accessories
HTR M8x1-IG SWGm10.01.30.00118Holder system
| Width B | 14 (mm) |
| Length L | 30.9 (mm) |
| Thread G1 | M8x1-F |
| Utilization design | Wafer gripper |
HTR-UNI SWGm10.01.30.00117Holder system
| Width B | 14 (mm) |
| Length L | 30.9 (mm) |
| Utilization design | Wafer gripper |
| Cross-beam connection | Universal holder |
SBSm 14 90-3 4/2 9010.01.01.13171Floating suction cup module for
increasing the transfer height
of sensitive workpieces
| Width B | 14 (mm) |
| Number of holes | 3 |
| Length L | 30.85 (mm) |
| Angle of radiation | 90 (°) |
| Connection | Hose 4/2 |
| Slewing angle W | 90 (°) |
SD-MOD 4 32x15x35 FG 9 SWGm10.01.30.00121Suction-/ Absorption module
| Width B | 15 (mm) |
| Length L | 32 (mm) |
| Utilization design | Wafer gripper |

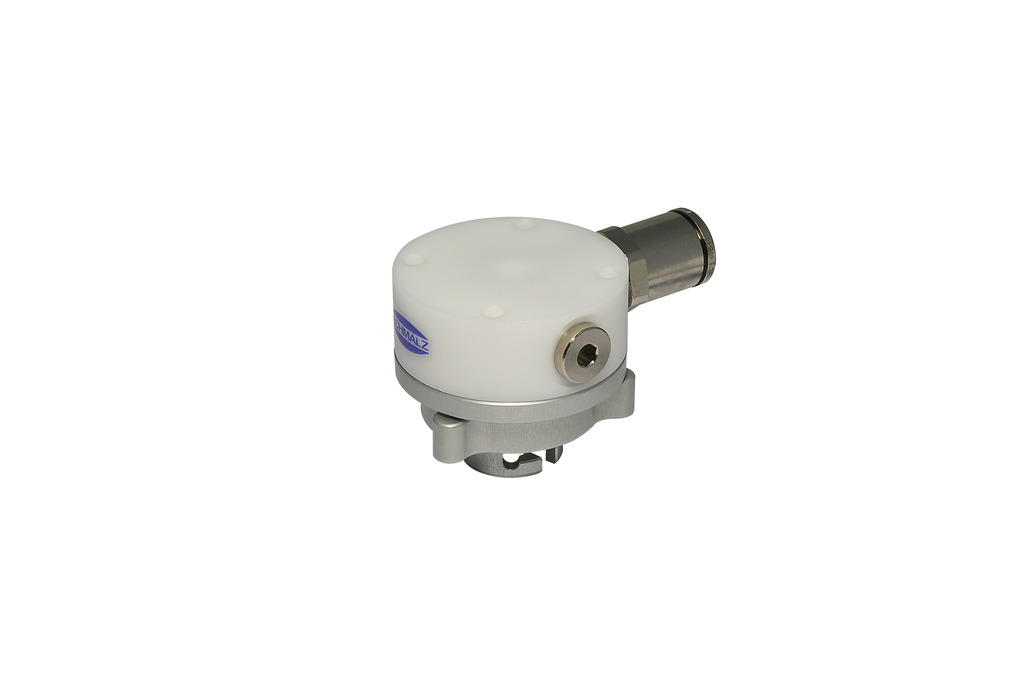

VEE-QCM 5310.01.36.00122VEE flange module with
quick-change adapter and
integrated vacuum line
| Length L1 | 53 (mm) |
| Thread G1 | G1/8"-F |
| Dmk | 46 (mm) |
| Number of holes | 8 |
| Flow rate max. | 20 (m³/h) |

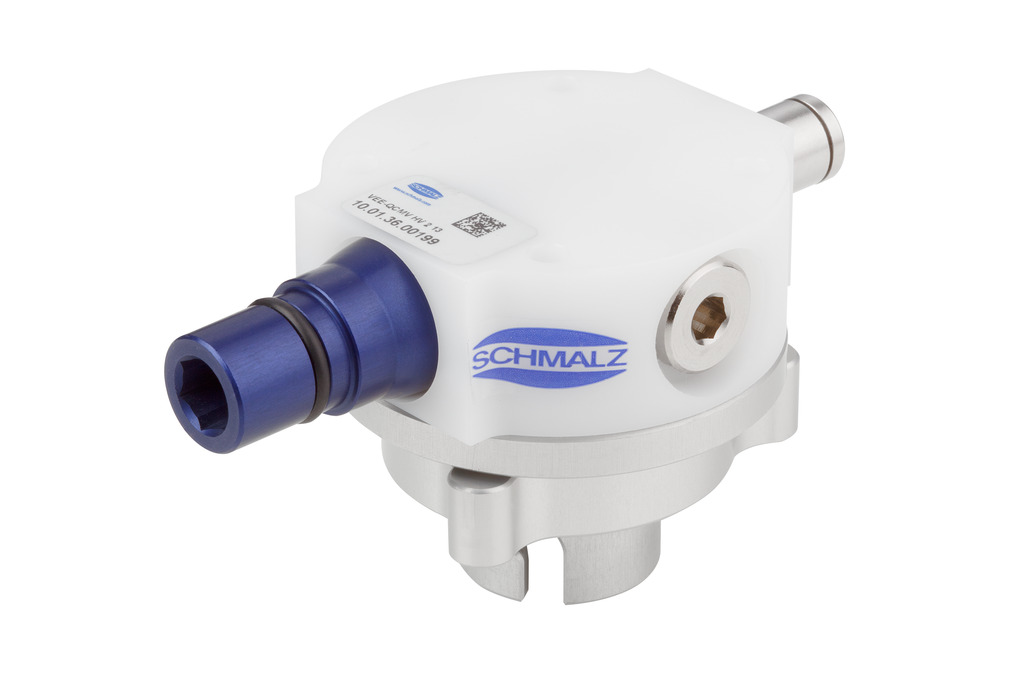

VEE-QCMV HV 2 07 1310.01.36.00199VEE vacuum module with integrated
ejector module ecoPump SEP
| Shape | High vacuum |
| Number of stages | 2 |
| Nozzle size | 0,7 mm |
