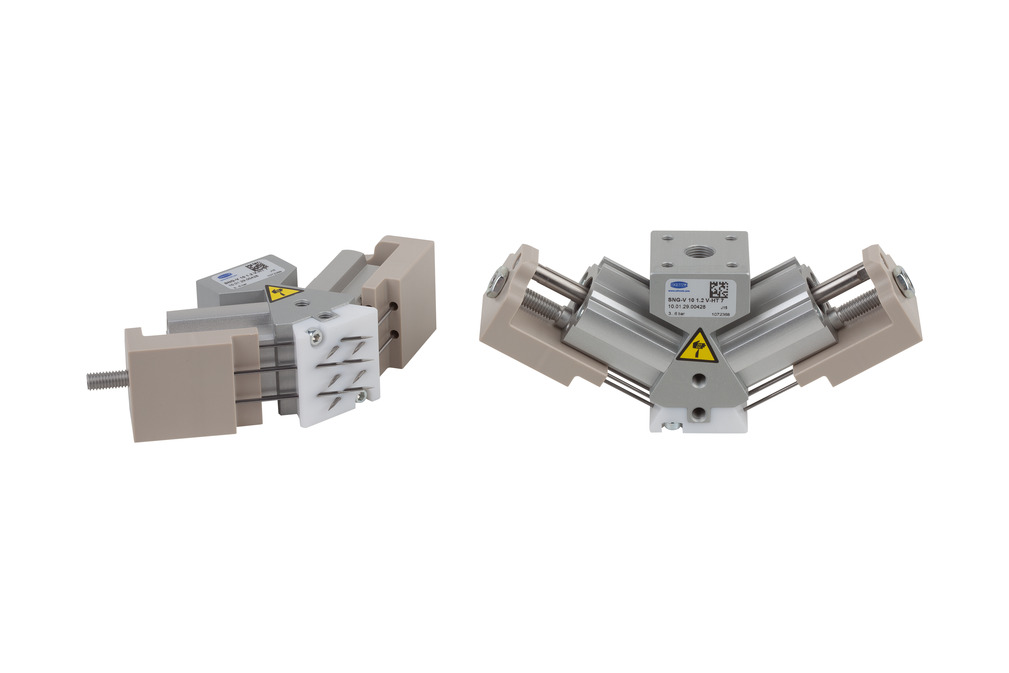

Part no.: 10.01.29.00428
| Attribute | Value |
|---|---|
| B | 32 mm |
| G1 | M5-F |
| G2 | G1/8"-F |
| G3 | M5-F |
| G4 | M4-F |
| H | 56 mm |
| L | 149 mm |
| W(E) | 30 ° |
| X1 | 20 mm |
| Y1 | 20 mm |
| Y2 | 29 mm |
| Z(NA) | 7 mm |
| Attribute | Value |
|---|---|
| Number of needles | 10 |
| Needle diameter | 1.2 mm |
| Pressure range (operating pressure) [bar] | 3.0 ... 7.0 bar |
| Operating temperature | 5 ... 150 °C |
| Installation position | Any |
| Weight | 255 g |
| Additional function | Var. stroke, high temperature |
| Product family | SNG-V |
| Utilization design | Needle gripper |
| Size | V-HT |
| contains | 2 needle wedges mounted |
| Needle diameter | 1.2 (mm) |
| Pressure range (operating pressure) [bar] | bar |
| Length L | 38 (mm) |
| Width B | 15 (mm) |
| Height H | 11.5 (mm) |
| Thread G1 | G1/4"-F |
| Utilization design | Needle gripper |
| Pressure range (operating pressure) [bar] | bar |
| Length L | 38 (mm) |
| Width B | 15 (mm) |
| Height H | 9.4 (mm) |
| Utilization design | Needle gripper |
| Size | AP/AE |
| Pressure range (operating pressure) [bar] | bar |
| Length L | 38 (mm) |
| Width B | 15 (mm) |
| Height H | 9.4 (mm) |
| Utilization design | Needle gripper |
| Size | AP/AE |
| Utilization design | Magnetic gripper |
| Connection 1 | 2x screws M6 |
| Size | 30/40 |
| Shape | One piece |
| Utilization design | Needle gripper |
| Length L | 31 (mm) |
| Width B | 34 (mm) |
| Height H | 11.5 (mm) |
| Thread G1 | G1/4"-F |
| Thread G1 | M5-M |
| Outer hose diameter | 6 (mm) |
| Material | Brass |
| Operating temperature | -50 ... 200 °C |
| Length L | 22.5 (mm) |
| Outside diameter D | 6 (mm) |
| Internal diameter d | 4 (mm) |
| Length max. | 50 (m) |
| Material hose | Polytetrafluorethylene |
| Bending radius min. | 35 (mm) |
| Pressure range (operating pressure) [bar] | -0.95 ... 10.00 bar |
| Operating temperature | -190 ... 260 °C |
| Color | Milky-transparent |
