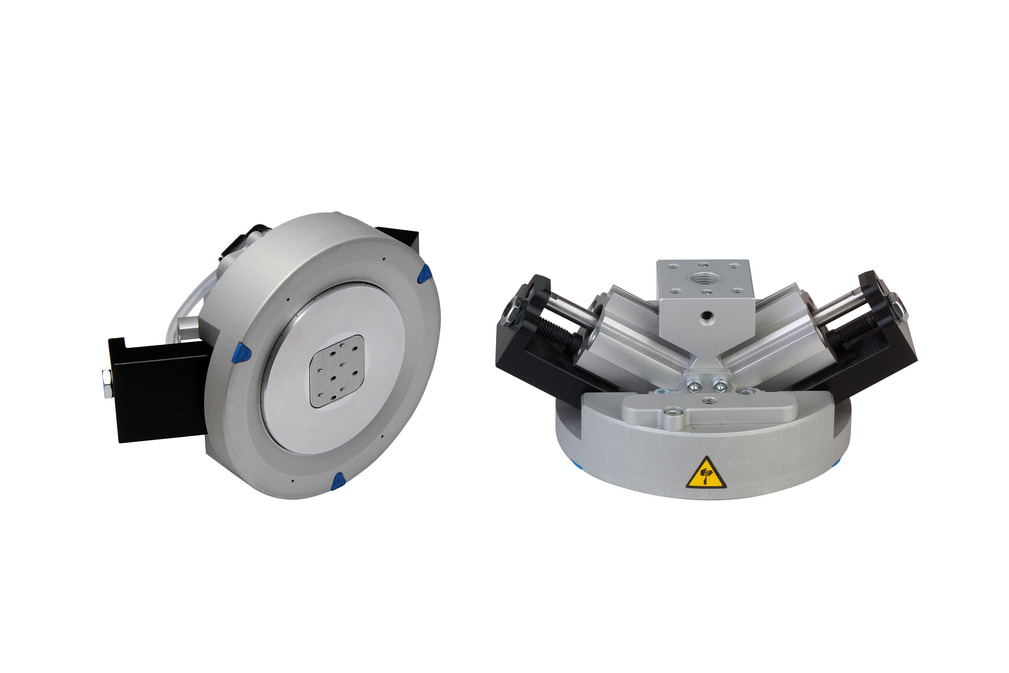

Part no.: 10.01.29.00481

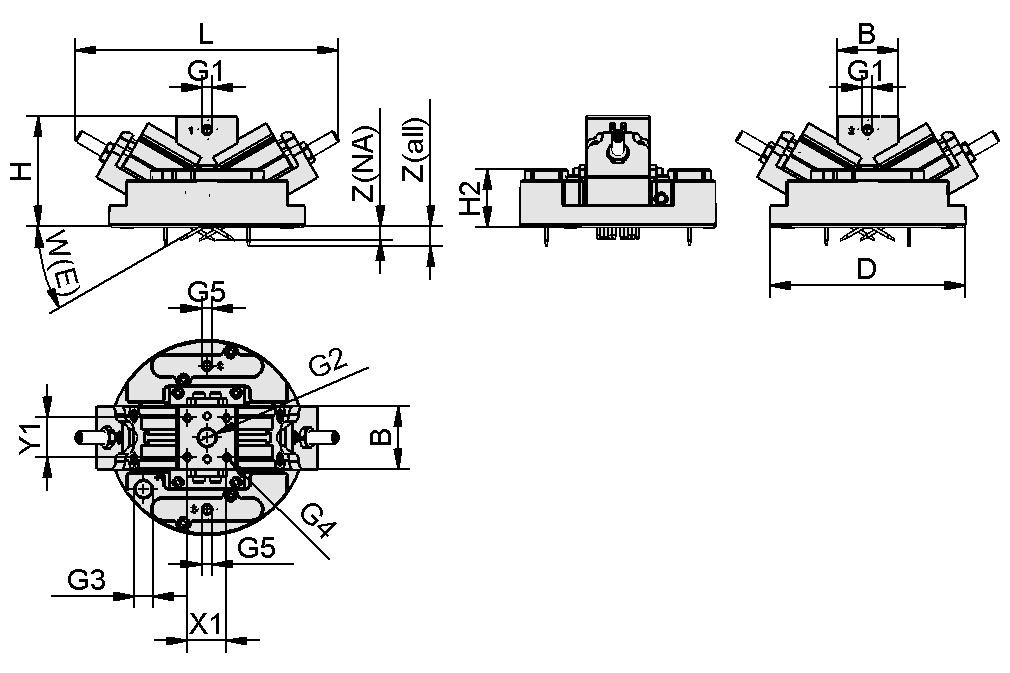

| Attribute | Value |
|---|---|
| B | 100 mm |
| D | 100 mm |
| G1 | M5-F |
| G2 | G1/8"-F |
| G3 | G1/8"-F |
| G4 | M4-F |
| G5 | M5-F |
| H | 56 mm |
| H2 | 29.7 mm |
| L | 149 mm |
| W(E) | 30 ° |
| X1 | 20 mm |
| Y1 | 20 mm |
| Z(NA) | 7 mm |
| Z (Stroke) | 9 mm |
| Attribute | Value |
|---|---|
| Needle diameter | 1.2 mm |
| Number of needles | 10 |
| Product family | SNG-BV |
| Utilization design | Needle gripper |
| Size | M |
| Number of needles | 4 |
| Needle diameter | 0.8 (mm) |
| contains | 4 needles Ø 0.8 mm + springs |
| and | Needle piston assembled / TORX screw |
| Utilization design | Needle gripper |
| Size | V |
| contains | 2 needle wedges mounted |
| Number of needles | 10 |
| Needle diameter | 1.2 (mm) |
| Utilization design | Floating suction cup |
| Suction cup material | High temperature material HT1 |
| Material hardness [Shore A] | 60 (Shore A) |
| Utilization design | Needle gripper |
| Length L | 31 (mm) |
| Width B | 34 (mm) |
| Height H | 11.5 (mm) |
| Thread G1 | G1/4"-F |
| Thread G1 | M5-M |
| Outer hose diameter | 6 (mm) |
| Material | Brass |
| Operating temperature | -20 ... 80 °C |
| Outside diameter D | 9.9 (mm) |
| Length L | 18.8 (mm) |
| Pressure range (operating pressure) [bar] | bar |
| Length L | 20.8 (mm) |
| Height H | 13 (mm) |
| Thread G1 | M5-M |
| Outside diameter D | 6 (mm) |
| Internal diameter d | 4 (mm) |
| Length max. | 500 (m) |
| Material hose | PU |
| Bending radius min. | 35 (mm) |
| Pressure range (operating pressure) [bar] | -0.95 ... 10.00 bar |
| Operating temperature | -20 ... 90 °C |
| Color | Milky-transparent |
