Part no.: 10.01.17.00752

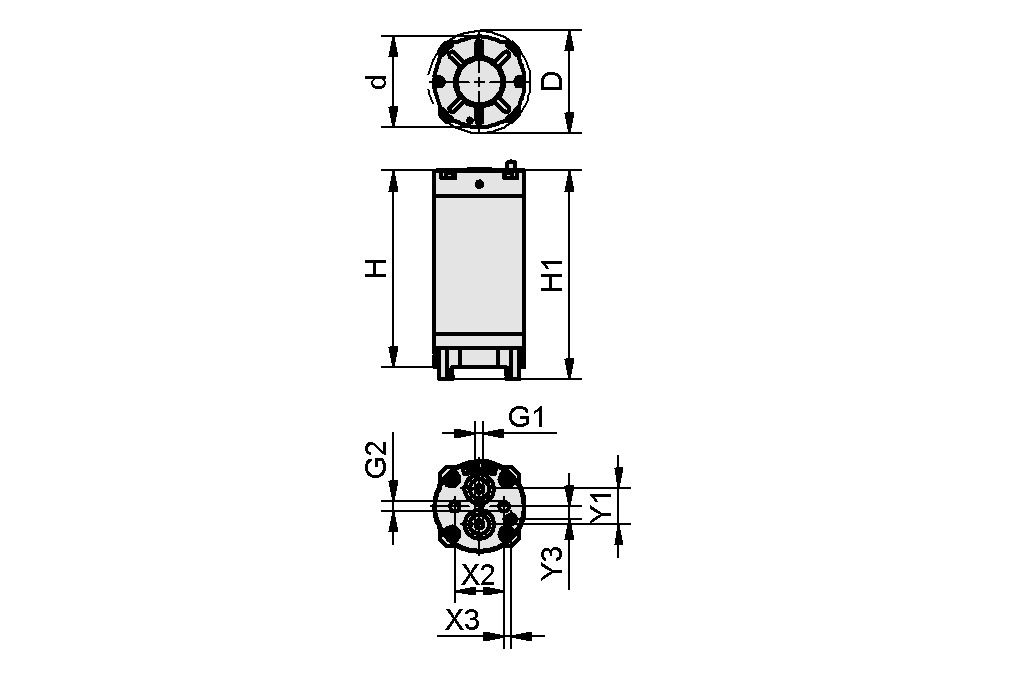

| Attribute | Value |
|---|---|
| D | 52 mm |
| d | 46 mm |
| G1 | M5-F |
| G2 | M6-F |
| H | 100 mm |
| H1 | 106 mm |
| X2 | 25 mm |
| X3 | 3.5 mm |
| Y1 | 18 mm |
| Y3 | 6.5 mm |
| Attribute | Value |
|---|---|
| Pressure range (operating pressure) [bar] | 3.5 ... 6.0 bar |
| Holding force | 72 N |
| Remaining holding force | 0.5 N |
| Installation position | Any |
| Control valve | Bistable |
| Operating temperature | 5 ... 70 °C |
| Guide pin | 2 |
| Weight | 439.5 g |
| Utilization design | Magnetic gripper sensor preparation |
| Outside diameter D | 46 (mm) |
| Type | 2BY |
| Outside diameter D | 3 (mm) |
| Construction vacuum switch | Inductive sensor |
| Voltage DC | 10 - 30 V - DC |
| Electrical connection | Male connect M8, 3 pol |
| Construction vacuum switch | Magnetic cylinder sensor - PNP |
| Voltage DC | 15- 30 V DC |
| Electrical connection | Male connect M12, 4 pol |
| Utilization design | Magnetic gripper sensor preparation |
| Outside diameter D | 46 (mm) |
| Type | 4BY |
| Utilization design | Magnetic gripper sensor preparation |
| Outside diameter D | 46 (mm) |
| Type | 0BY |
