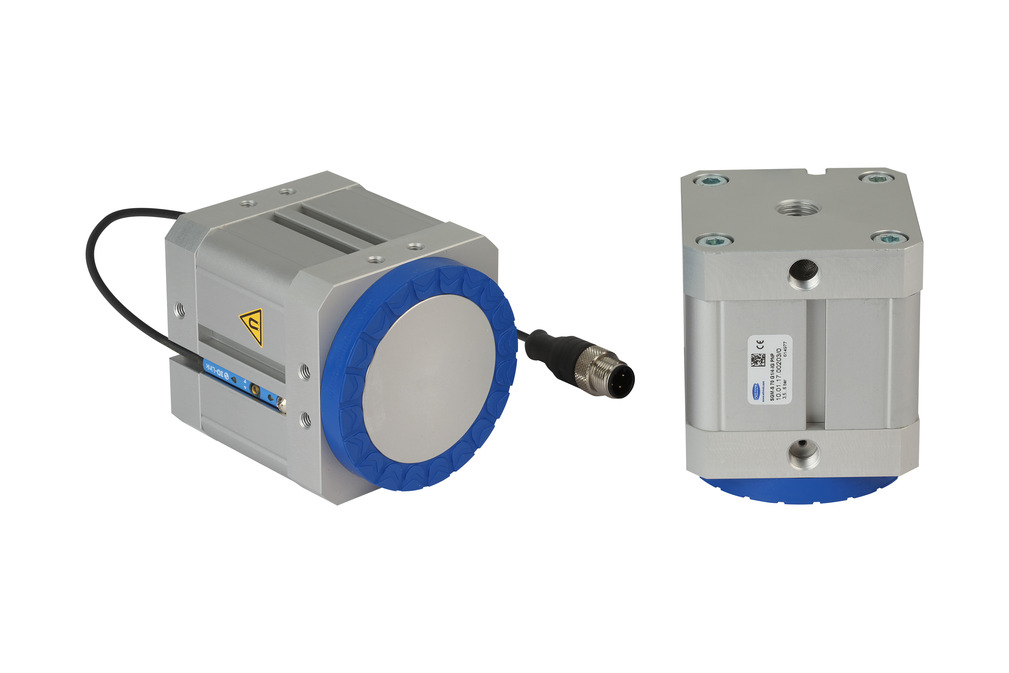

Part no.: 10.01.17.00203

Design Data

Attribute	Value
B	68.75 mm
D	68 mm
d	51 mm
G1	G1/4"-F
G2	G1/8"-F
G3	M12x1-M
G4	M5-F
H	80.2 mm
LG1	11 mm
LG2	6 mm
LG4	8 mm
Lk	300 mm
X1	58 mm
Y1	15 mm

Technical Data

Attribute	Value
Holding force max. with friction ring	290 N
Remaining holding force	0.3 N
Pressure range (operating pressure) [bar]	3.5 ... 6.0 bar
Installation position	BEL
Control valve	Bistable
Operating temperature	5 ... 70 °C
Weight	730 g
Product family	SGM

Note: Holding force: The value given is a statistical value with no safety factor; based on a plate with a thickness of 2 mm. For system configurations with magnetic grippers SGM, a safety factor of S = 3 must be applied

Documentation

Spare parts

REIB-RING SGM 70 PU-55 10.01.17.00139 Friction ring

Utilization design	Magnetic gripper
Size	70
Outside diameter D	68 (mm)
Internal diameter d	51 (mm)

Show product

NAEH-SCHA SMAGN-PNP S051 300 10.01.17.00199 Proximity switch

Construction vacuum switch	Magnetic cylinder sensor - PNP
Voltage DC	15- 30 V DC
Electrical connection	Male connect M12, 4 pol

Show product

Accessories

HTS-A2 SGM 50/70 OP 10.01.17.00578 Holder system

Connection 1	Bolt with slot Ø19mm
Utilization design	Magnetic gripper
Size	50/70

Show product

HTS-A2 D SGM 50/70 OP 10.01.17.00587 Holder system

Connection 1	Bolt with slot Ø19mm
Utilization design	Magnetic gripper
Size	50/70
Shape	Double block

Show product

HTS-A3 SGM 50/70 OP 10.01.17.00576 Holder system

Connection 1	Ball head 28.5 mm
Utilization design	Magnetic gripper
Size	50/70

Show product

HTS-A3 D SGM 50/70 OP 10.01.17.00583 Holder system

Connection 1	Ball head 28.5 mm
Utilization design	Magnetic gripper
Size	50/70
Shape	Double block

Show product

HPS-SGM 2M8 50/70 OP 10.01.17.00653 Holder system

Utilization design	Magnetic gripper
Connection 1	2x screws M8
Size	50/70
Shape	One piece

Show product

ASK B-M12-5 5000 K-5P 21.04.05.00080 Connection cable

Electrical connection	Fem connect M12, 5 pol
Cable length	5000 (mm)
Connection 2	Cable, 5-pole
Material hose	PUR cable

Show product

STV-GE G1/8-AG 6 10.08.02.00204 Push-in Fitting, straight

Thread G1	G1/8"-M
Outer hose diameter	6 (mm)
Material	Brass
Operating temperature	-20 ... 80 °C
Outside diameter D	11.4 (mm)
Length L	16.4 (mm)

Show product

STV-W G1/8-AG 6 10.08.02.00158 Push-in Fitting, swivelling elbow

Thread G1	G1/8"-M
Outer hose diameter	6 (mm)
Material	Nickel plated
Operating temperature	-20 ... 80 °C
Length L	20.1 (mm)

Show product

VSL 6-4 PU MI-TR 10.07.09.00002 Hose for vacuum and compressed-air systems

Outside diameter D	6 (mm)
Internal diameter d	4 (mm)
Length max.	500 (m)
Material hose	PU
Bending radius min.	35 (mm)
Pressure range (operating pressure) [bar]	-0.95 ... 10.00 bar
Operating temperature	-20 ... 90 °C
Color	Milky-transparent
