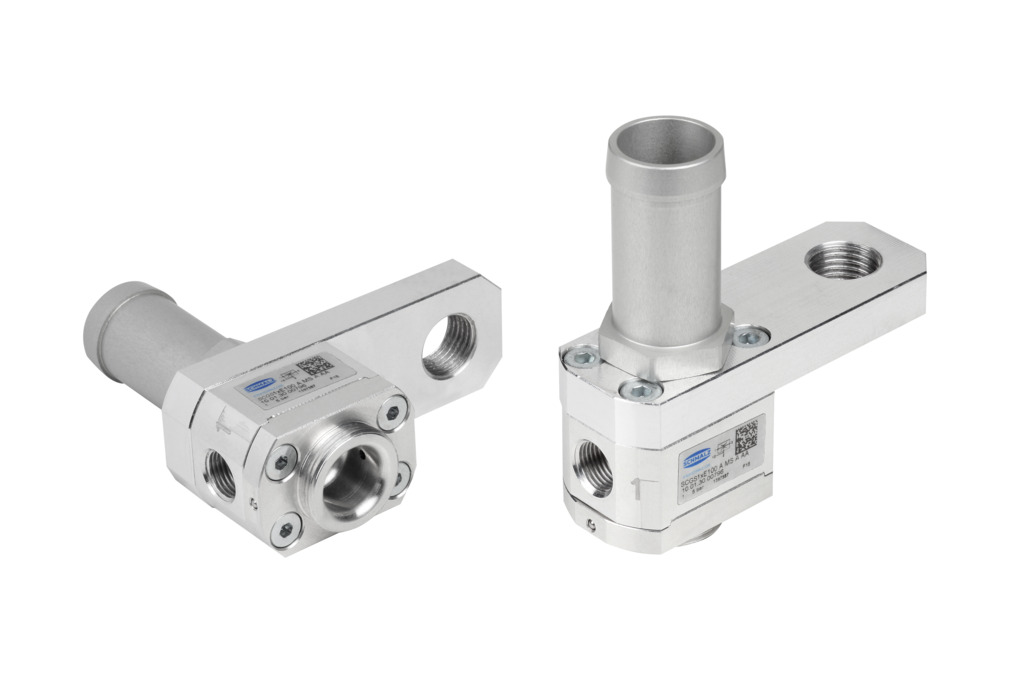

SCGS 1xE100 A MP AR M20x1-AG

Part no.: 10.01.30.00796

Flow Grippers for handling sensitive components

Number of ejectors	1
Performance class	E100
Mounting	Mounting plate
Additional function ejector	Exhaust duct axial

Product information

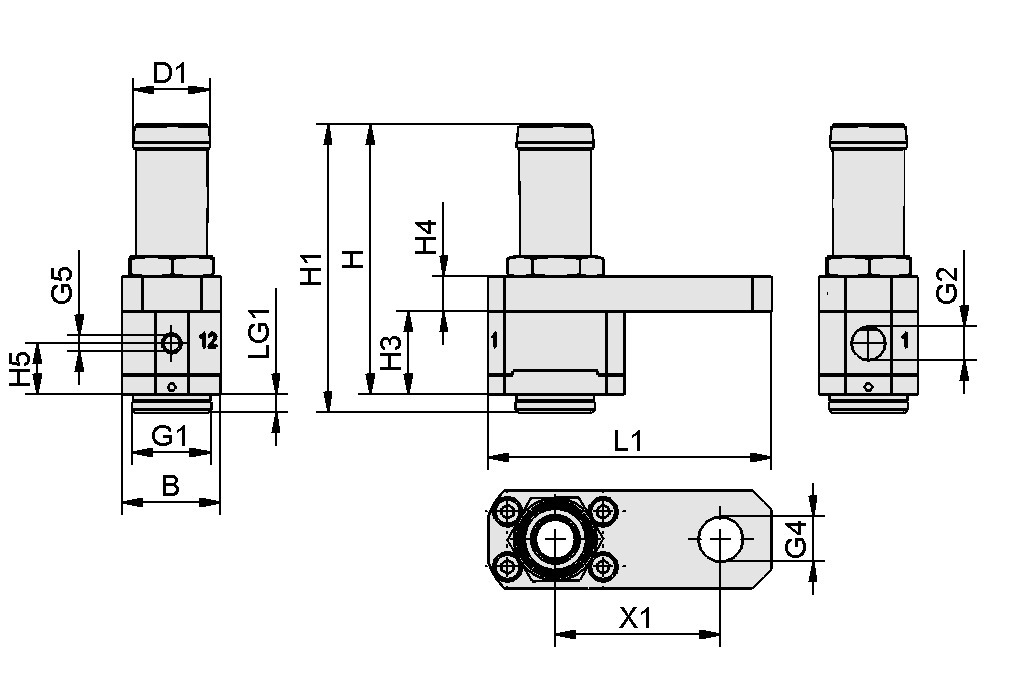

Design Data

Attribute	Value
B	25 mm
D1	19.5 mm
G1	M20x1-M
G2	G1/8"-F
G4	G1/4"-F
G5	M5-F
H	68.6 mm
H1	73.1 mm
H3	21.1 mm
H4	9 mm
H5	13.1 mm
L1	72 mm
LG1	4.5 mm
X1	42 mm

Technical Data

Attribute	Value
Pressure range (operating pressure) [bar]	1.0 ... 5.0 bar
Operating temperature	5 ... 75 °C
Mounting	Mounting plate
Additional function ejector	Exhaust duct axial
Weight	95 g
Product family	SCGS

Performance Data

Documentation

Spare parts

BCG 20 SI-MD-55 SC085 10.01.06.04558 Bellows suction cup (round) for high volumeflow with optimum adaption to uneven surfaces

Size	20
Suction cup material	Silicone SI metal detectable
Material hardness [Shore A]	55 (Shore A)

Show product

BCG 30 SI-MD-55 SC085 10.01.06.04559 Bellows suction cup (round) for high volumeflow with optimum adaption to uneven surfaces

Size	30
Suction cup material	Silicone SI metal detectable
Material hardness [Shore A]	55 (Shore A)

Show product

BCG 40 SI-MD-55 SC095 10.01.06.04560 Bellows suction cup (round) for high volumeflow with optimum adaption to uneven surfaces

Size	40
Suction cup material	Silicone SI metal detectable
Material hardness [Shore A]	55 (Shore A)

Show product

BCG 50 SI-MD-55 SC095 10.01.06.04561 Bellows suction cup (round) for high volumeflow with optimum adaption to uneven surfaces

Size	50
Suction cup material	Silicone SI metal detectable
Material hardness [Shore A]	55 (Shore A)

Show product

BCG 20 NBR-ESD-55 SC085 10.01.06.04573 Bellows suction cup (round) for high volumeflow with optimum adaption to uneven surfaces

Size	20
Suction cup material	Nitrile rubber NBR-ESD
Material hardness [Shore A]	55 (Shore A)

Show product

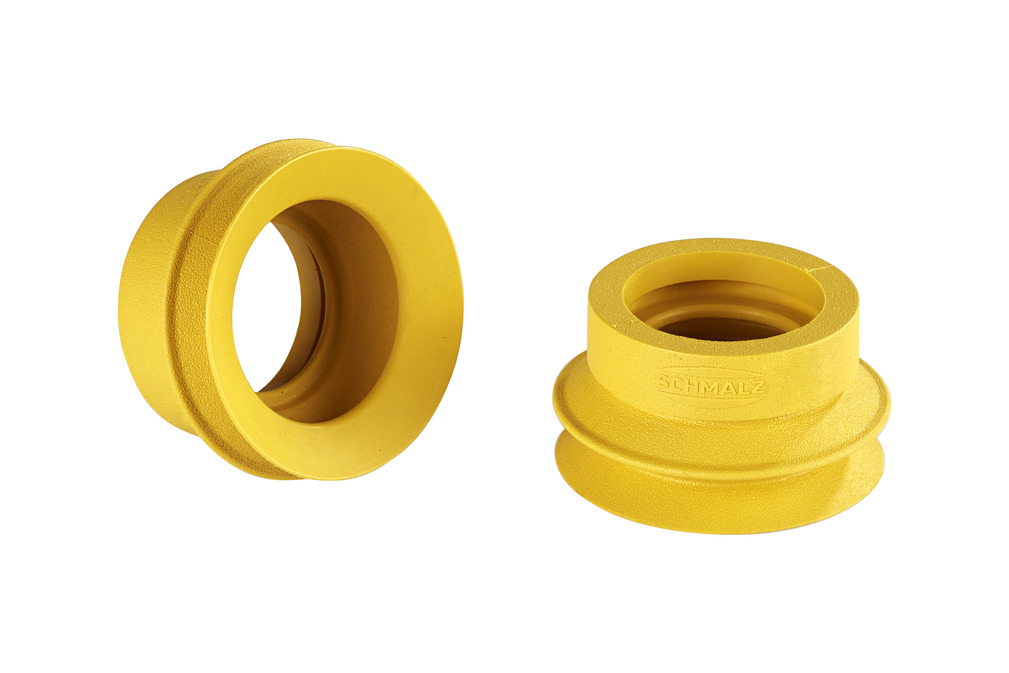

BCG 30 NBR-ESD-55 SC085 10.01.06.04574 Bellows suction cup (round) for high volumeflow with optimum adaption to uneven surfaces

Size	30
Suction cup material	Nitrile rubber NBR-ESD
Material hardness [Shore A]	55 (Shore A)

Show product

BCG 40 NBR-ESD-55 SC095 10.01.06.04575 Bellows suction cup (round) for high volumeflow with optimum adaption to uneven surfaces

Size	40
Suction cup material	Nitrile rubber NBR-ESD
Material hardness [Shore A]	55 (Shore A)

Show product

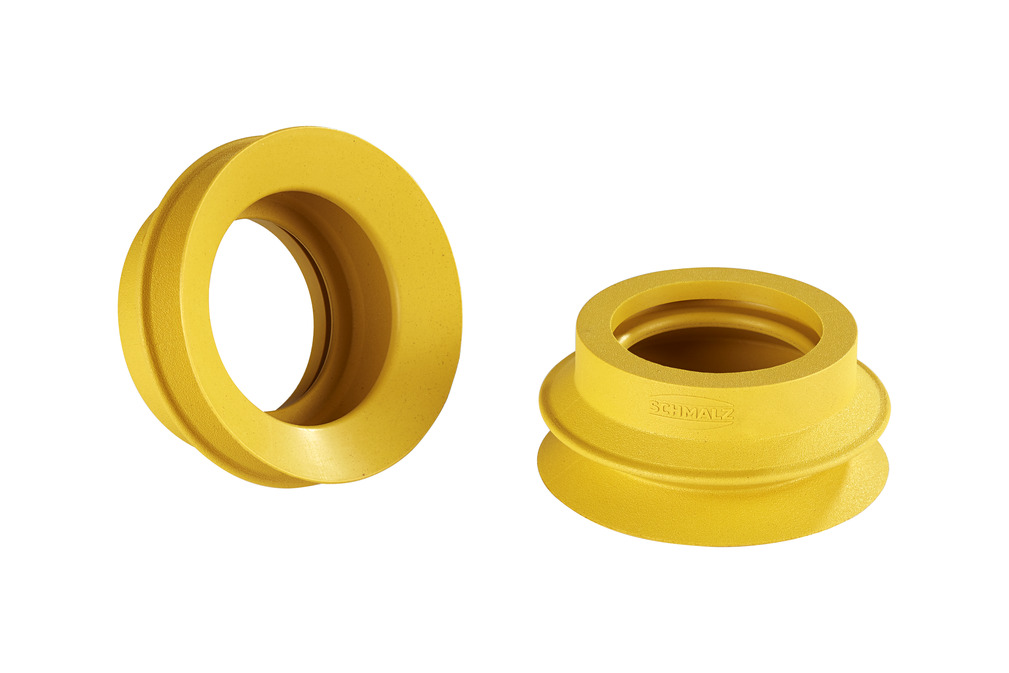

BCG 50 NBR-ESD-55 SC095 10.01.06.04576 Bellows suction cup (round) for high volumeflow with optimum adaption to uneven surfaces

Size	50
Suction cup material	Nitrile rubber NBR-ESD
Material hardness [Shore A]	55 (Shore A)

Show product

BCG 20 SI-HD-65 SC085 10.01.06.04845 Bellows suction cup (round) for high volumeflow with optimum adaption to uneven surfaces

Size	20
Suction cup material	Silicone SI-HD
Material hardness [Shore A]	65 (Shore A)

Show product

BCG 30 SI-HD-65 SC085 10.01.06.04846 Bellows suction cup (round) for high volumeflow with optimum adaption to uneven surfaces

Size	30
Suction cup material	Silicone SI-HD
Material hardness [Shore A]	65 (Shore A)

Show product

BCG 40 SI-HD-65 SC095 10.01.06.04847 Bellows suction cup (round) for high volumeflow with optimum adaption to uneven surfaces

Size	40
Suction cup material	Silicone SI-HD
Material hardness [Shore A]	65 (Shore A)

Show product

BCG 50 SI-HD-65 SC095 10.01.06.04848 Bellows suction cup (round) for high volumeflow with optimum adaption to uneven surfaces

Size	50
Suction cup material	Silicone SI-HD
Material hardness [Shore A]	65 (Shore A)

Show product

Accessories

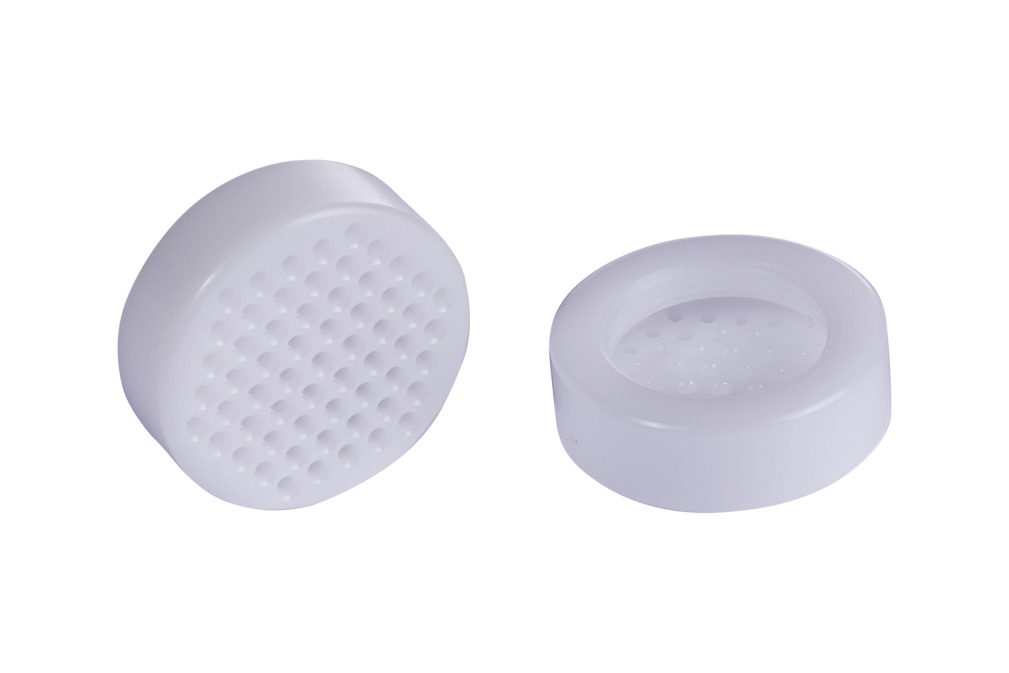

SAUG-FL SCGS 30 POM 10.01.30.00894 Suction plate

Suction cup material

Poloxymethylene POM

Show product

SAUG-SCGS 20 SI-MD-55 602 B 10.01.30.01087 Suction cup (round)

Size	20
Suction cup material	Silicone SI metal detectable
Material hardness [Shore A]	55 (Shore A)
Standard	602
Suction cup type	BCG

Show product

SAUG-SCGS 30 SI-MD-55 602 B 10.01.30.01088 Suction cup (round)

Size	30
Suction cup material	Silicone SI metal detectable
Material hardness [Shore A]	55 (Shore A)
Standard	602
Suction cup type	BCG

Show product

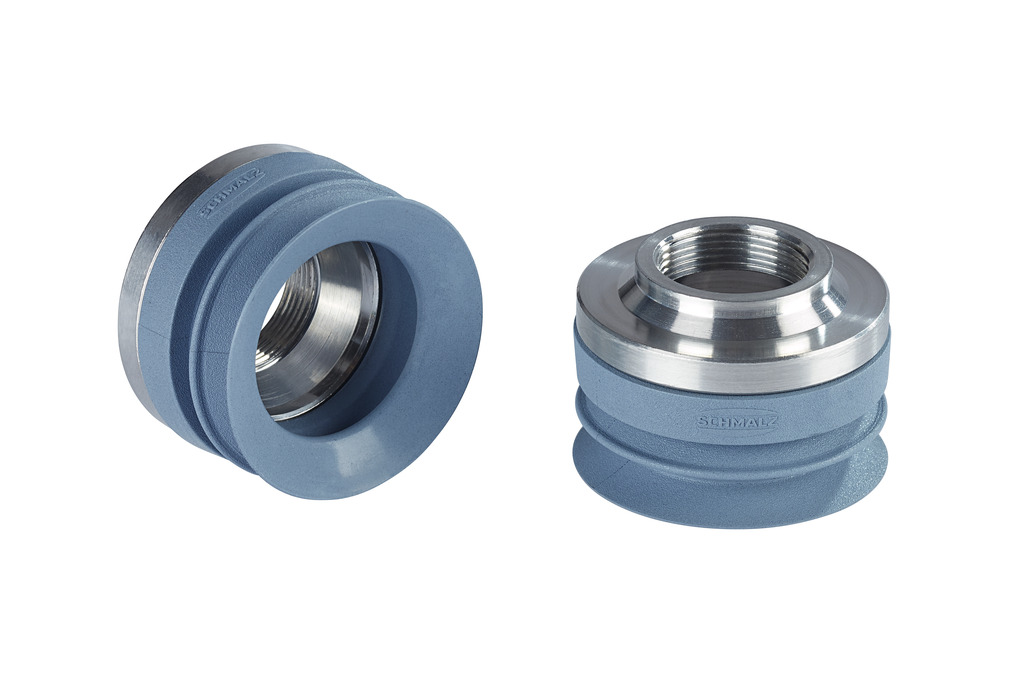

SAUG-SCGS 40 SI-MD-55 602 B 10.01.30.01089 Suction cup (round)

Size	40
Suction cup material	Silicone SI metal detectable
Material hardness [Shore A]	55 (Shore A)
Standard	602
Suction cup type	BCG

Show product

SAUG-SCGS 50 SI-MD-55 602 B 10.01.30.01090 Suction cup (round)

Size	50
Suction cup material	Silicone SI metal detectable
Material hardness [Shore A]	55 (Shore A)
Standard	602
Suction cup type	BCG

Show product

SAUG-SCGS 20 SI-HD-65 602 B 10.01.30.01103 Suction cup (round)

Size	20
Suction cup material	Silicone SI-HD
Material hardness [Shore A]	65 (Shore A)
Standard	602
Suction cup type	BCG

Show product

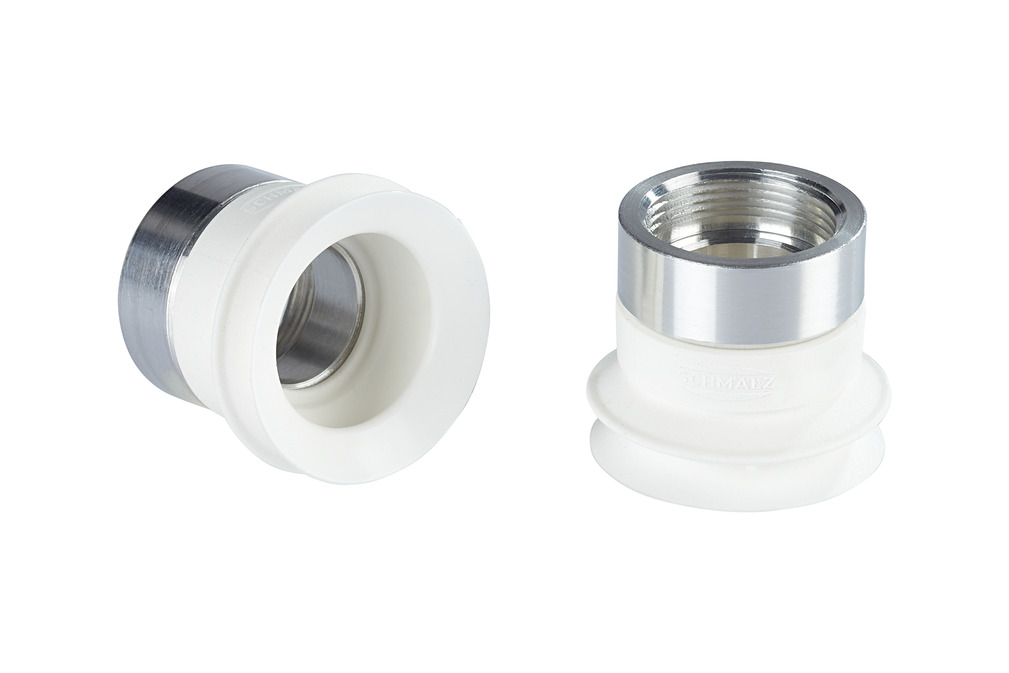

SAUG-SCGS 30 SI-HD-65 602 B 10.01.30.01104 Suction cup (round)

Size	30
Suction cup material	Silicone SI-HD
Material hardness [Shore A]	65 (Shore A)
Standard	602
Suction cup type	BCG

Show product

SAUG-SCGS 40 SI-HD-65 602 B 10.01.30.01105 Suction cup (round)

Size	40
Suction cup material	Silicone SI-HD
Material hardness [Shore A]	65 (Shore A)
Standard	602
Suction cup type	BCG

Show product

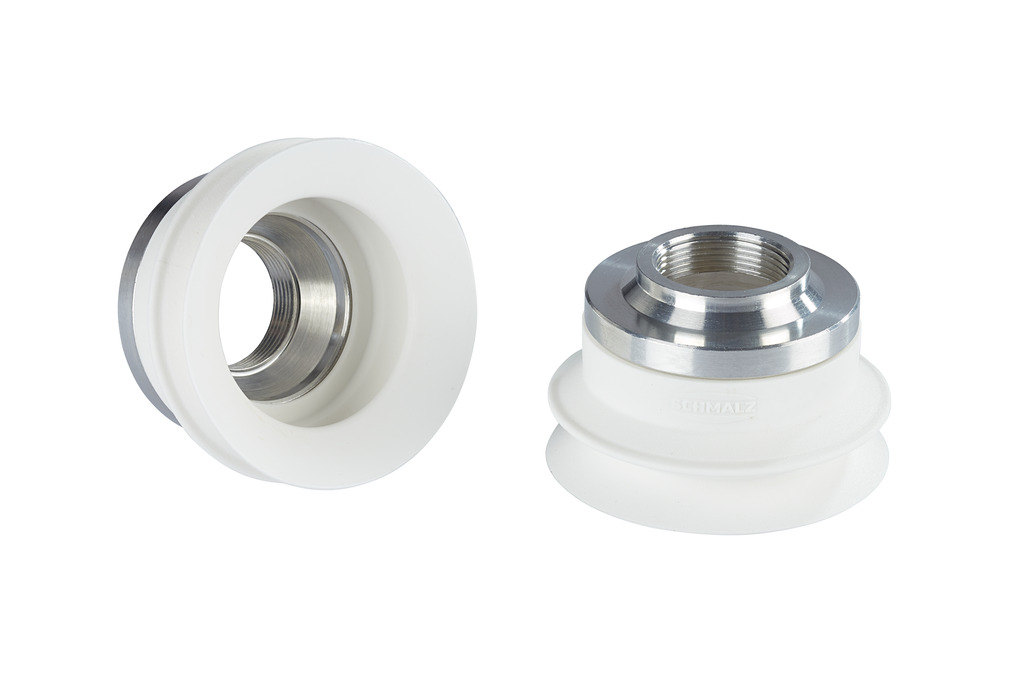

SAUG-SCGS 50 SI-HD-65 602 B 10.01.30.01106 Suction cup (round)

Size	50
Suction cup material	Silicone SI-HD
Material hardness [Shore A]	65 (Shore A)
Standard	602
Suction cup type	BCG

Show product

SAUG-SCGS 20 NBR-ESD-55 B 10.01.30.01091 Suction cup (round)

Size	20
Suction cup material	Nitrile rubber NBR-ESD
Material hardness [Shore A]	55 (Shore A)
Suction cup type	BCG

Show product

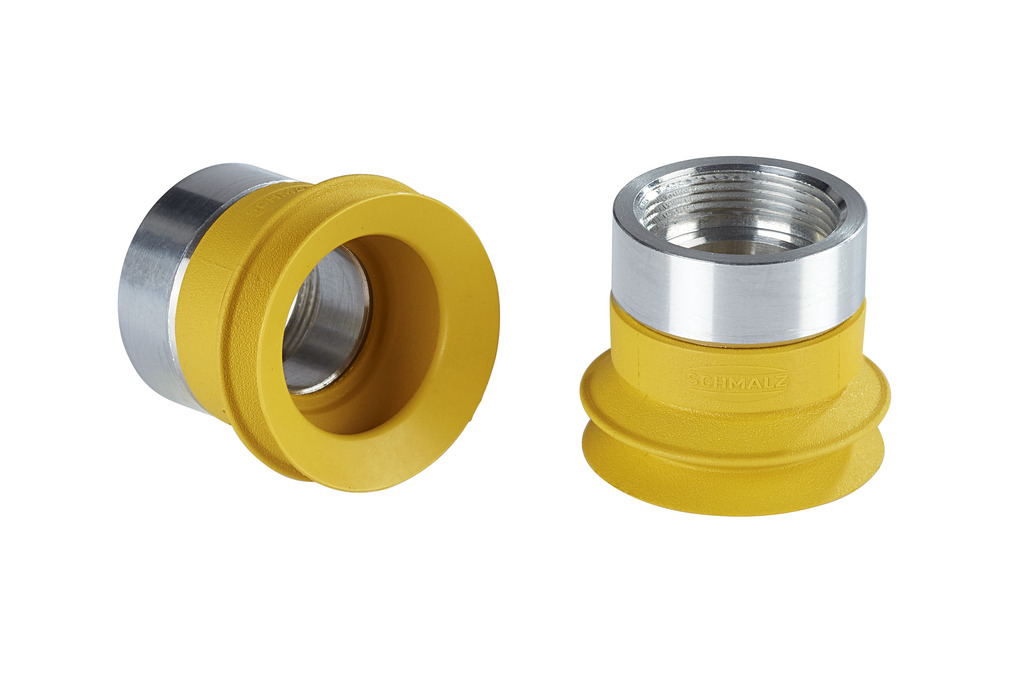

SAUG-SCGS 30 NBR-ESD-55 B 10.01.30.01092 Suction cup (round)

Size	30
Suction cup material	Nitrile rubber NBR-ESD
Material hardness [Shore A]	55 (Shore A)
Suction cup type	BCG

Show product

SAUG-SCGS 40 NBR-ESD-55 B 10.01.30.01093 Suction cup (round)

Size	40
Suction cup material	Nitrile rubber NBR-ESD
Material hardness [Shore A]	55 (Shore A)
Suction cup type	BCG

Show product

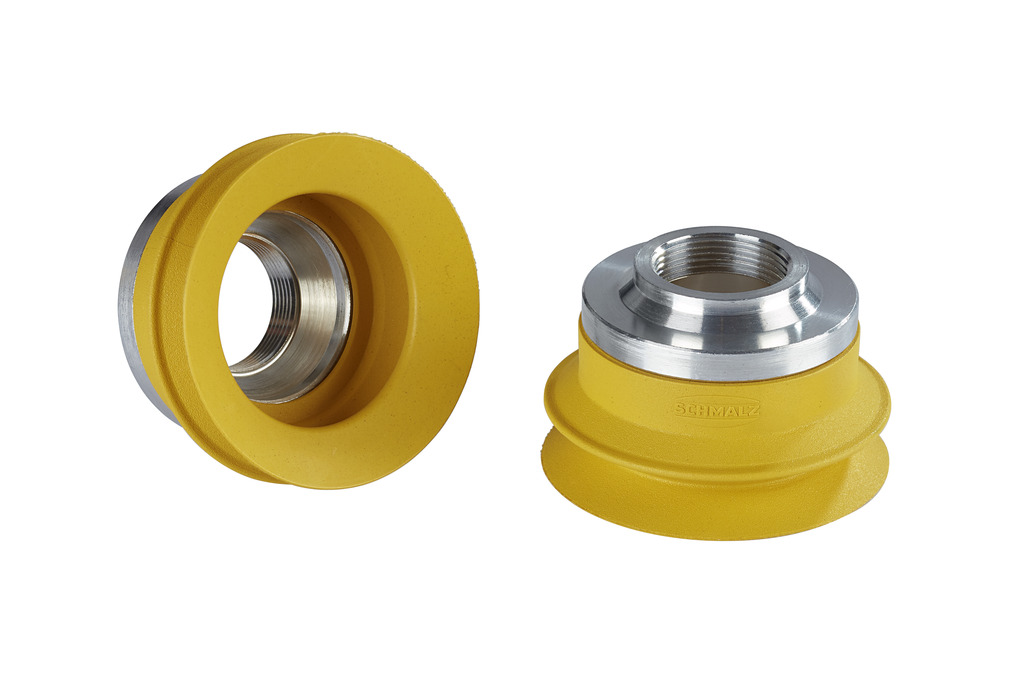

SAUG-SCGS 50 NBR-ESD-55 B 10.01.30.01094 Suction cup (round)

Size	50
Suction cup material	Nitrile rubber NBR-ESD
Material hardness [Shore A]	55 (Shore A)
Suction cup type	BCG

Show product

STV-W G1/8-AG 6 10.08.02.00288 Push-in Fitting, swivelling elbow

Thread G1	G1/8"-M
Outer hose diameter	6 (mm)
Material	Plastics
Operating temperature	°C
Length L	20.8 (mm)

Show product

STV-W M5-AG 6 10.08.02.00296 Push-in Fitting, swivelling elbow

Pressure range (operating pressure) [bar]	bar
Length L	20.8 (mm)
Height H	13 (mm)
Thread G1	M5-M

Show product

VSL 26-19 PVC-DS KL-TR 10.07.09.00007 Hose for vacuum and compressed-air systems

Outside diameter D	26 (mm)
Internal diameter d	19 (mm)
Length max.	50 (m)
Material hose	PVC with wire spiral
Bending radius min.	85 (mm)
Pressure range (operating pressure) [bar]	-0.90 ... 5.00 bar
Operating temperature	-15 ... 65 °C
Color	Clear-transparent

Show product

Ordering information

SCGS 1xE100 A MP AR M20x1-AG

Spare parts

Accessories
