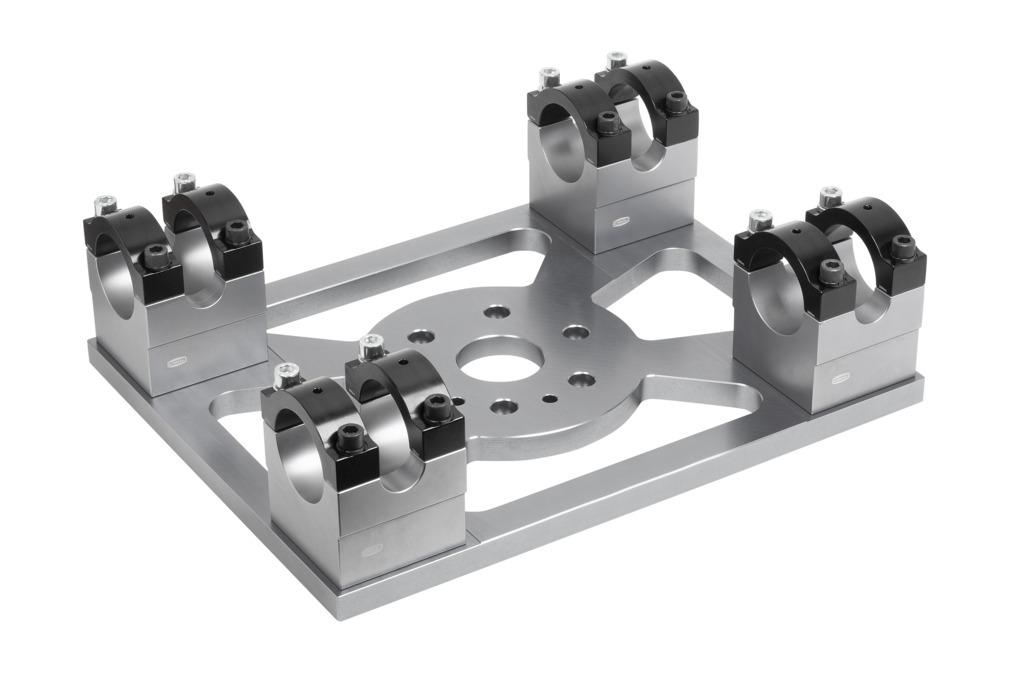

Part no.: 10.07.13.00006
Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 360 mm |
| D2 | 100 mm |
| Dmk | 125 mm |
| d | 40 mm |
| d1 | 11.5 mm |
| d2 | 10 mm |
| H1 | 111 mm |
| H2 | 77 mm |
| H3 | 3 mm |
| L | 460 mm |
| X1 | 360 mm |
| Y1 | 260 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Material | Aluminum |
| Shape | Double |
| Weight | 11.32 kg |
| Product family | SXT-RF-CL |
