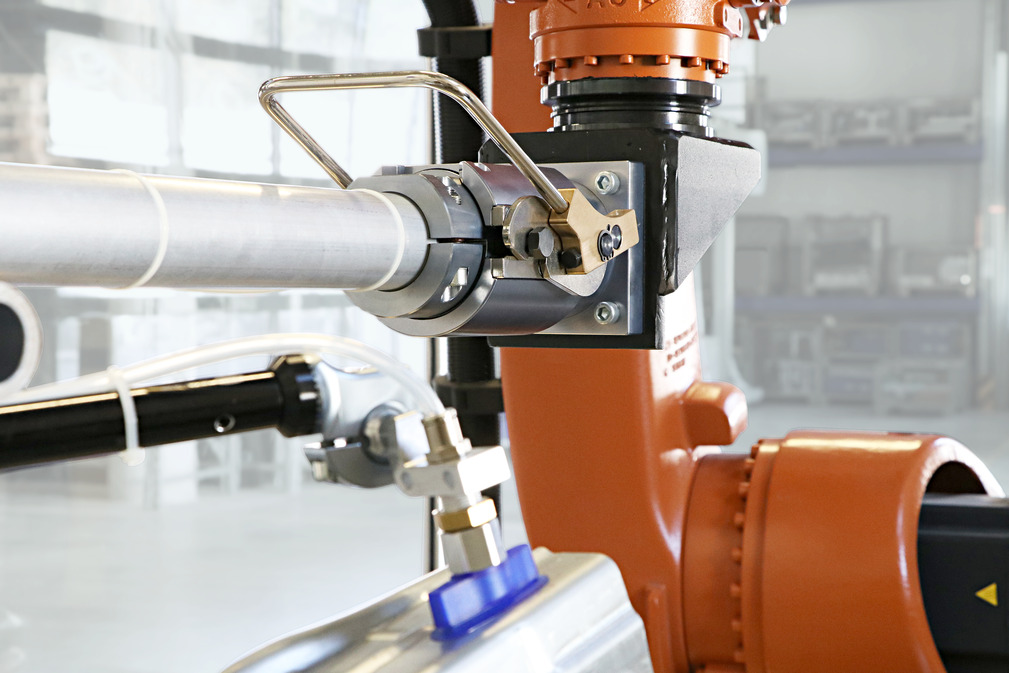

Quick-Change Robot Bayonets SXT-QC-CON
For pipe diameters of 40 and 60 mm
High-strength bayonet connection for highly dynamic processes with maximum output quantity
Compatible with common tooling systems (tube diameters 40 or 60 mm)
Flexible, space-saving solution for various applications with pneumatic media feed-through
Design
Design
- Manually locked / unlocked bayonet connection (1)
- Flange (2) for connection to the robot interface
- Connection for tooling (3) with a pipe diameter of 40 and 60 mm
- With 2, 3, 6 lines or without pneumatic media feed-through (4)
Technical Data
Technical Data
- Manually locked bayonet connection
- Pipe diameters of 40 and 60 mm
- With or without pneumatic media feed-through
Documentation
Documentation
The matching documentation for this product is available in this section.
| Documents | Language |
|---|---|
| English |
