Product information

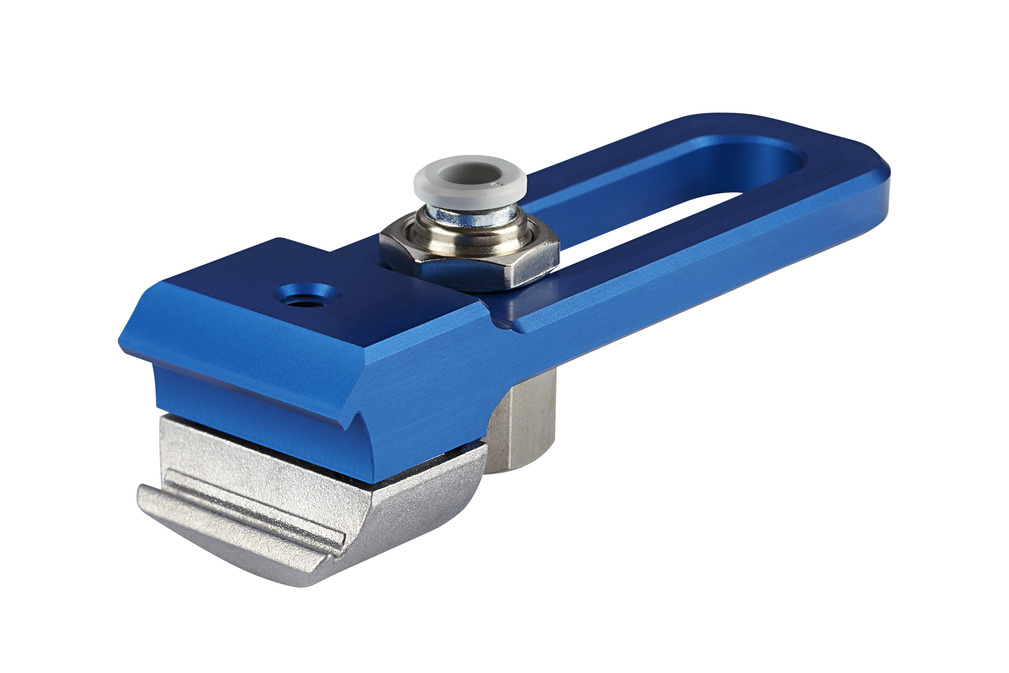

Part no.: 10.01.49.00036

Product information

Design Data

Design image

Attribute	Value
B	30 mm
d	8 mm
G1	G1/4"-F
H	38.5 mm
H2	2 mm
H3	23.5 mm
L	104.5 mm
L2	115 mm
	100 mm
L (min.)	50 mm
SW1	19 mm

Documentation

Accessories

SVB-WIN 8-6/6-4 KU-ROH

SVB-WIN 8-6/6-4 KU-ROH 10.08.02.00501 Plug connection, elbow

Length L	23 (mm)
Material	Plastics
Operating temperature	-20 ... 80 °C
Nominal size	6 (mm)
Surface	raw

SVB-WIN 8-6 KU-ROH

SVB-WIN 8-6 KU-ROH 10.08.02.00542 Plug connection, elbow

Length L	20.5 (mm)
Material	Plastics
Operating temperature	-20 ... 60 °C
Nominal size	6 (mm)
Surface	raw

SVB-GE 8-6/6-4

SVB-GE 8-6/6-4 10.08.02.00543 Plug connection, straight

Length L	31.5 (mm)
Material	Plastics
Operating temperature	-20 ... 60 °C
Nominal size	6 (mm)
