DR G1/4 18/13.5x1.5 PA10.07.08.00021Sealing ring
| for | G1/4 |
| Outside diameter D | 18 (mm) |
| Internal diameter d | 13.5 (mm) |
| Material | Polyamide |
Part no.: 10.01.03.00137

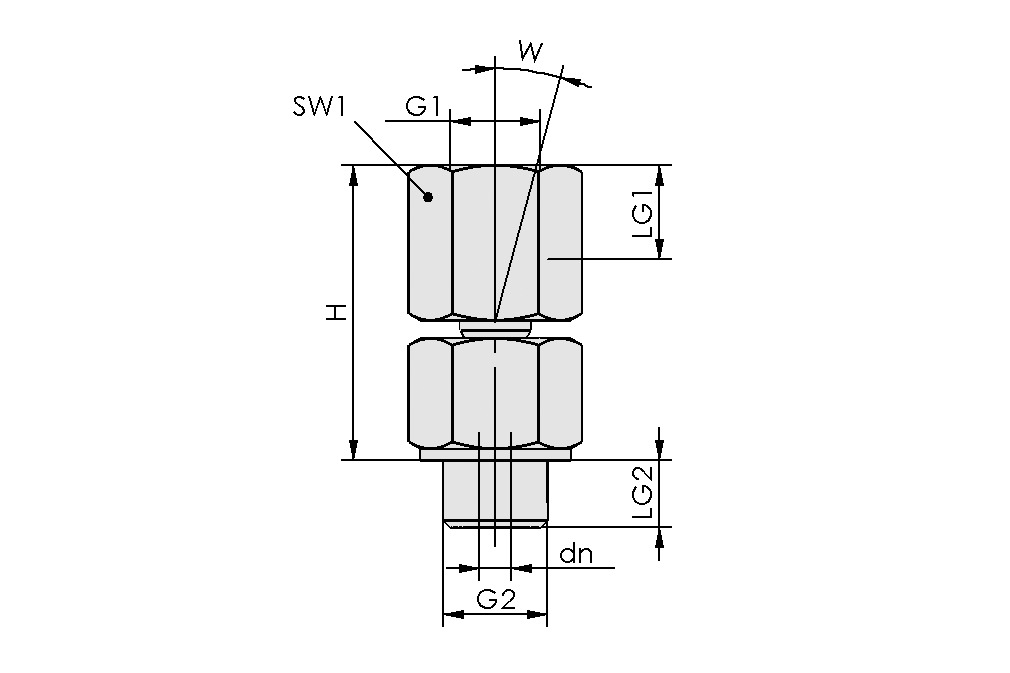

Design Data
Design Data
| Attribute | Value |
|---|---|
| dn | 3.5 mm |
| H | 37.5 mm |
| G1 | G1/4"-F |
| G2 | M10x1.25-M |
| LG1 | 12 mm |
| LG2 | 10 mm |
| SW1 | 19 mm |
| W | 15 ° |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Vertical load | 1,500 N |
| Weight | 67 g |
| Product family | KGL |
Documentation
Documentation
Spare parts
