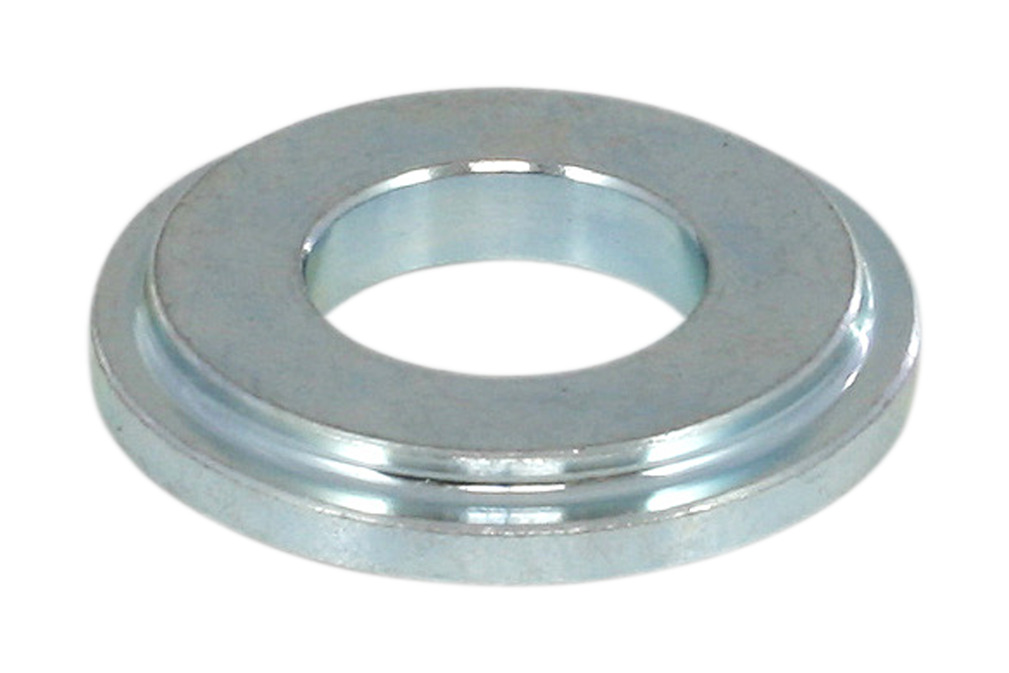

Part no.: 10.01.03.06140
Design Data
Design Data
| Attribute | Value |
|---|---|
| D | 38 mm |
| d | 18.5 mm |
| D2 | 30 mm |
| L | 3 mm |
| L1 | 5 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Material | Steel |
| Surface | galvanised |
Documentation
Documentation
Part no.: 10.01.03.06140
| Attribute | Value |
|---|---|
| D | 38 mm |
| d | 18.5 mm |
| D2 | 30 mm |
| L | 3 mm |
| L1 | 5 mm |
| Attribute | Value |
|---|---|
| Material | Steel |
| Surface | galvanised |
